Home > Products > Construction & Real Estate > Mia Ck200 200mm Round Duct Fan Diameter Pipeline Blower Ac 230v/50hz Centrifugal Exhaust Fan 260cmh

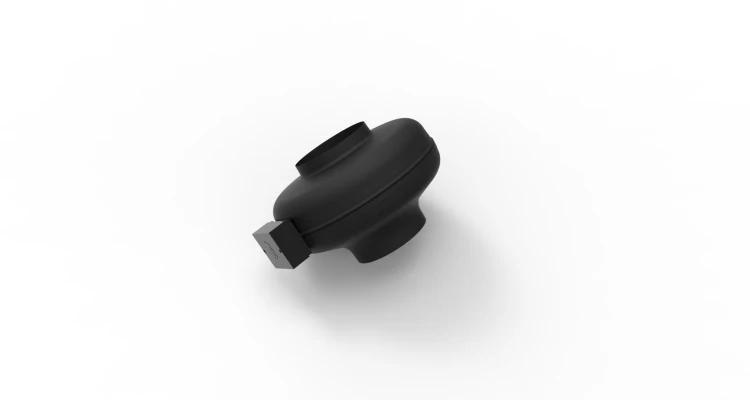

Mia Ck200 200mm Round Duct Fan Diameter Pipeline Blower Ac 230v/50hz Centrifugal Exhaust Fan 260cmh

FOB Price

US$ 75 - 97 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T PayPal Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MIA	Place of Origin	China
Model Number	MIA-CK200	Certification	CE, ROHS, SASO
Power (W)	41

Product Description

Overview

Quick Details

Warranty:
More than 5 years

After-sale Service:
Online technical support, Return and Replacement

Project Solution Capability:
NONE, Others

Application:
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard

Place of Origin:
Jiangsu, China

Brand Name:
MIA

Model Number:
MIA-CK200

Voltage:
AC 230V 50Hz

Input Power:
115W

Current:
0.51A

Max Air Flow:
900m3/h

Hole Diameter:
200mm

Noise:
47dB

Weight:
4.6kg

Color:
Customize

Certification:
RoHS CE EMC ERP LVD ISO9001

Type:
HVAC Systems

Supply Ability

Supply Ability:
10000 Set/Sets per Month

Packaging & Delivery

Packaging Details
MIA 200 mm 900 m3/h MIA Centrifugal Large Round Pipe Duct fan Hot Air Exhaust Fan
Standard export packing.

Port
Shanghai

Picture Example:

Lead Time :
Quantity(Sets) 1 - 20 21 - 100 101 - 500 >500
Est. Time(days) 5 7 15 To be negotiated

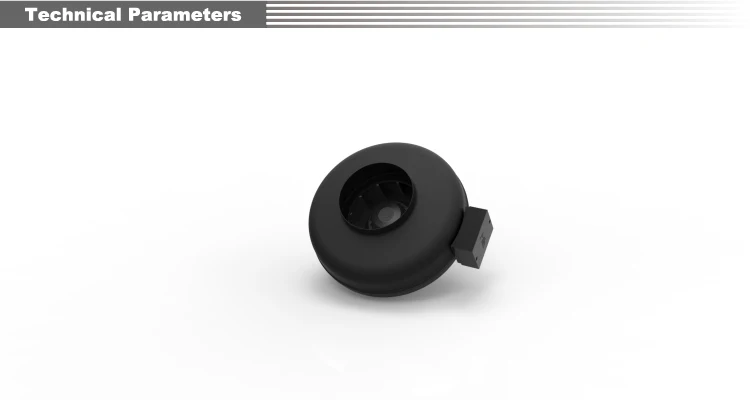

Product Details

MIA 200 mm 900 m3/h MIA Centrifugal Large Round Pipe Duct fan Air Exhaust Fan

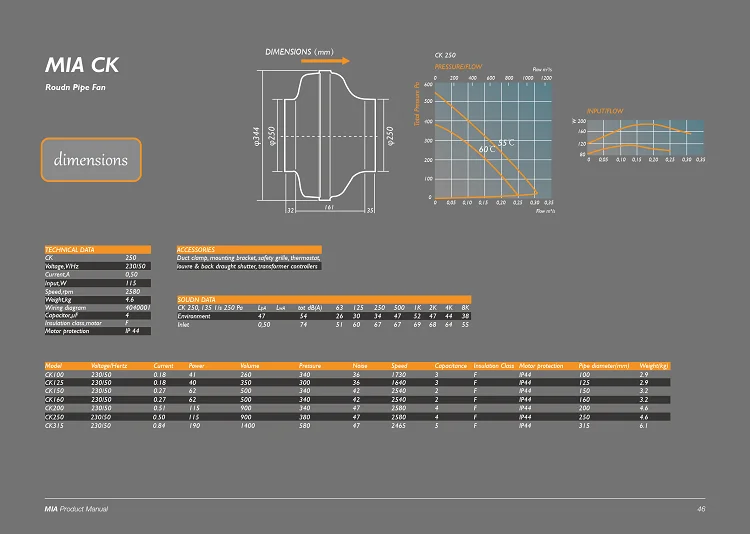

Model	Voltage (AC)	Input Power (W)	Max Volume (m3/h)	Noise dB*(A)	Hole Diameter (mm)	Pressure(Pa)	Weight (kg)
MIA-CK100	230/50Hz	41	260	36	100	340	2.9
MIA-CK125	230/50Hz	40	360	36	125	300	2.9
MIA-CK150	230/50Hz	62	500	42	150	340	3.2
MIA-CK160	230/50Hz	62	500	42	160	340	3.2
MIA-CK200	230/50Hz	115	900	47	200	340	4.6
MIA-CK250	230/50Hz	115	900	47	250	380	4.6
MIA-CK315	230/50Hz	190	1400	47	315	580	6.1

Product Details Show

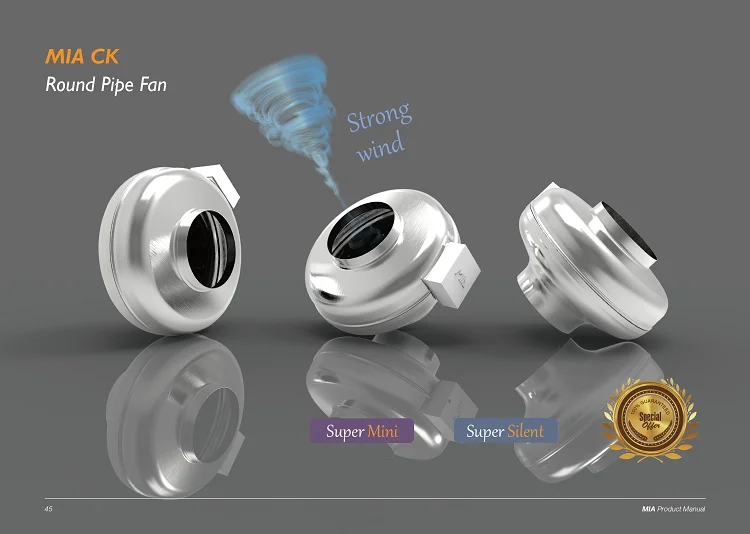

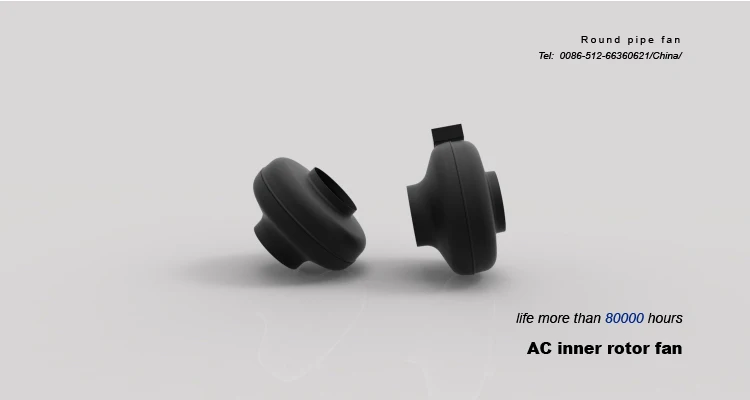

Name:Round pipe fan (AC inner rotor fan)

Model:	MIA-CK250
Voltage:	220V/50Hz	Capacitance:	5μF
Power:	115W	Hole Size:	250mm
Volume:	900m3/h	Weight:	4.6kg
Noise:	47dB(A)	Pressure:	380Pa
Speed:	2580rpm	Warrantly:	10 years

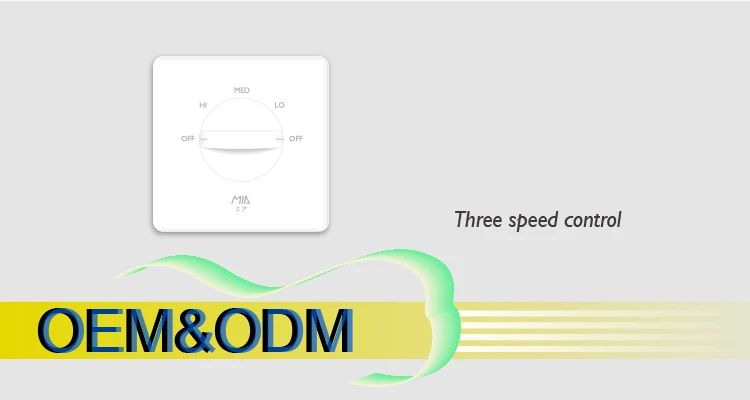

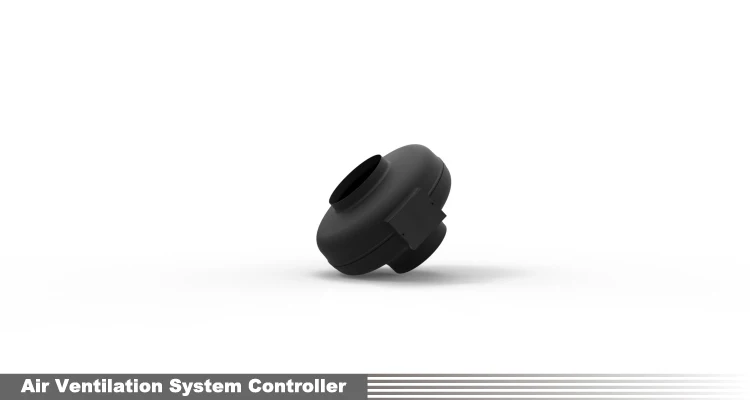

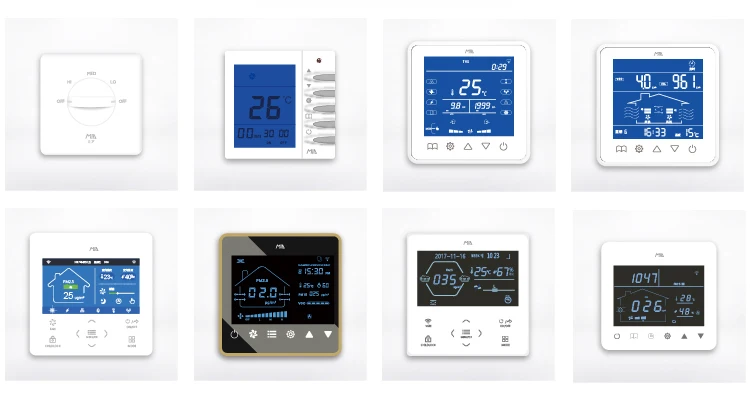

Please contact the customer service for the selection of fresh air system controller.

Applicable scenarios

MIA Co, Ltd. has established more than 70 sales centers and business agencies in the world Recently set up in Suzhou, MIA China is mainly responsible for the sales of MIA air ventilation products. MIA China is directly administered by MIA Co, Ltd. Japan while retaining its own independent financial accounting.

Production and delivery process

Certifications
