Fresh Air Dc Fan Energy Recovery Ventilation with Plate Heat Exchanger

FOB Price

USD $150 - $1000 / Set

1 Set(Min.Order)

Supply Ability 9999 Set / Sets per Month
Port shanghai
Payment Terms:T/T PayPal Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	MIA	Place of Origin:	China	Model Number:	MIA-AHE35JDN
Certification:	CE, ROHS	Voltage (V):	220	Power (W):	96
Installation:	Other, Ceiling Easy Installation

Product Description

Overview

Quick Details

Warranty:
More than 5 Years, Ten years

After-sale Service:
Online Technical Support, Free spare parts

Project Solution Capability:
Graphic Design, 3D model design

Place of Origin:
Jiangsu, China

Brand Name:
MIA

Model Number:
MIA-AHE35JDN

Voltage:
220v

Power:
96w

Volume:
350m3/h

Static pressure:
140 Pa

Effiency:
86%-94%

Noise:
29dB(A)

External Dimensions:
880*688*260mm

Supply Ability

Supply Ability:
8000 Set/Sets per Month

Packaging & Delivery

Packaging Details
carton and wooden case

Port
Shanghai,China

Picture Example:

Lead Time :
Quantity(Sets) 1 - 10 11 - 40 41 - 100 >100
Est. Time(days) 5 15 25 To be negotiated

Product Show

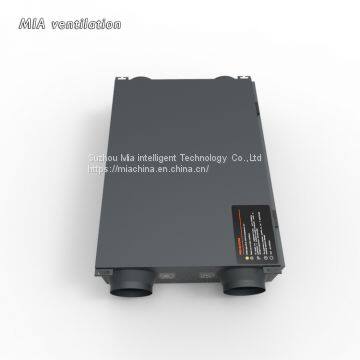

Fresh Air Dc Fan Energy Recovery Ventilator with Plate Heat Exchanger

Energy Recovery Exchanger

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange, with the washable material ,also can avoid the problem of bacteria and molds production.

Early Effect+ Activated Carbon

The sealing property is far more than paper border with using the plastic margin. The filter with the composite fiber, sprayed with activated carbon powder, can filter duct particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way ,early effect+activated carbon, greatly reduces the total cost of consumables.

High efficiency Particulate Air Filter

The sealing property is far more than paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

High-voltage Electrostatic Dust

With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten filament  high-voltage electrostatic dust collection. It's thickness is only 4 cm, can be suitable for all kinds of models. The removal rate of PM2.5 is high to 98%, so that can effectively kill the bacteria and prevent the infection. It's washable, also can be cleaned with brush, ans will not increase the using cost.

Model	MIA-AHE35JDN
Voltage	220V	Efficiency	86-94%
Power	96W	Size	880688260(mm)
Volume	350m³/h	φd	150 mm
Pressure	140Pa	Weight	31.5 Kg
Motor	Ac motor	Place of Origin	Suzhou, China
Noise	29 dB(A)	Warranty	10 years

Product Display

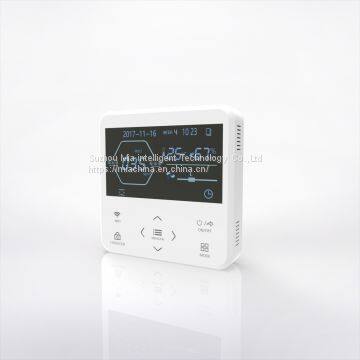

Please contact the customer service for the selection of fresh air system controller.
