MIA Hvac System uv Light Heat Recovery Recuperator 150cmh

MIA Hvac System uv Light Heat Recovery Recuperator 150cmh thumbnail-1
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh thumbnail-2
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh thumbnail-3
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh thumbnail-4
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh thumbnail-5
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh photo-1
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh photo-2
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh photo-3
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh photo-4
MIA Hvac System uv Light Heat Recovery Recuperator 150cmh photo-5
US$ 100 - 250 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Place of Origin:
China
Model Number:
MIA-AHE15GL
Contact Supplier Request Quote Chat Now
Suzhou Mia Intelligent Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Place of Origin China
Model Number MIA-AHE15GL
Certification CE, ROHS
Voltage (V) 220
Power (W) 70
Installation Other, Ceiling Easy Installation
Overview
Quick Details

  • Warranty:

  • More than 5 Years

  • After-sale Service:

  • Online Technical Support

  • Project Solution Capability:

  • Graphic Design

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Model Number:

  • MIA-AHE15GL

  • Voltage:

  • AC 220V~240V 50~60Hz

  • Power:

  • 70W

  • Supply / Exhaust Air:

  • 150CMH / 150CMH

  • External Static Pressure:

  • 115Pa

  • Heat recovery Rate:

  • 88%~96%

  • Noise (SPL@1m):

  • 26 dB(A)

  • External Dimensions:

  • 780 * 514 *186 mm

  • Tuyere Diameter:

  • 120 mm

  • Net Weight:

  • 19.5 kg

  • Certificates:

  • SAA CE (RoHS EMC ERP LVD)ISO9001
Supply Ability

  • Supply Ability:

  • 10000 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • Standard export packing.

  • Port

  • Shanghai port

  • Picture Example:

  • package-img



    package-img

  • Lead Time :

  • Quantity(Sets) 1 - 10 >10
    Est. Time(days) 10 To be negotiated

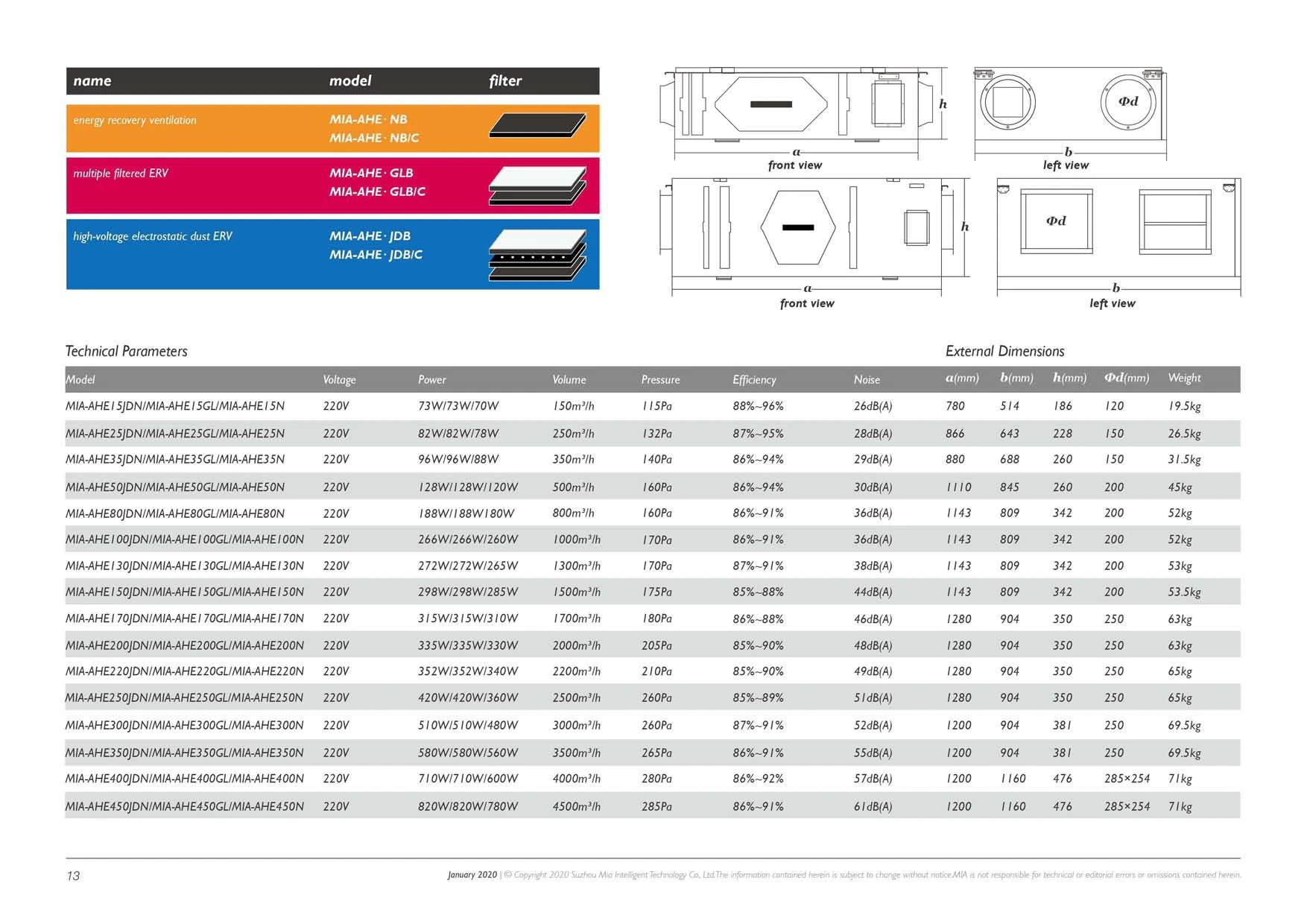

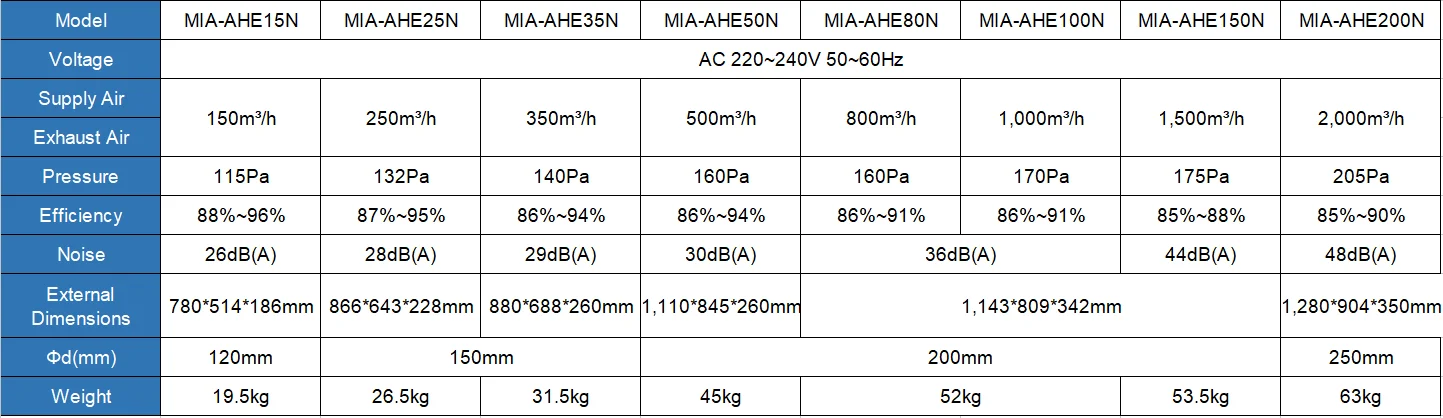

Product Parameters
Model
MIA-AHE15GL
Pressure
115Pa
Voltage
AC 220~240V 50~60Hz
Brand Name
MIA
Power
70W
Φd
120mm
Supply Air
150m3/h
Weight
19.5kg
Exhaust AIr
150m3/h
Function
ventilation
Efficiency
88%~96%
Application
Office, Home, School...
Noise
26dB(A)
Feature
Ceiling Type, Energy Saving

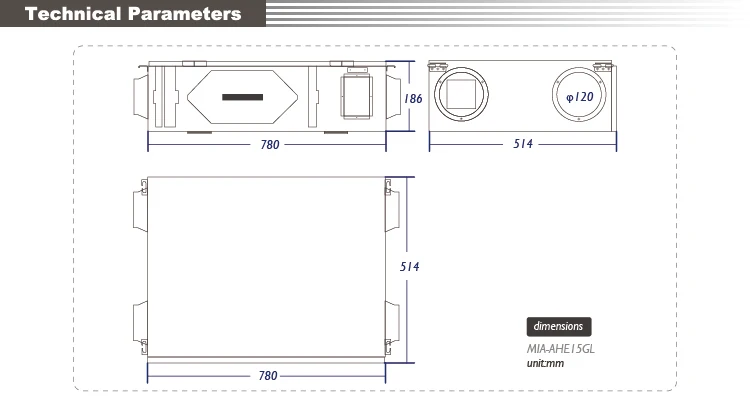

External Dimensions
780*514*260mm
Filters
*Early Effect + Activated Carbon      *Hepa filter (H13)
Products Description
Central Type Heat Recovery Ventilation System (MIA-AHE15GL) supply 150m3/h airflow.
The thin ceiling design of the unit is generally installed on the upper part of the ceiling, and the installation is concealed for easy decoration. Configure a low-noise fan for quiet operation. The energy recovery core made of special material can exchange temperature and pass water molecules to achieve energy saving, ventilation and maintain indoor temperature and humidity. It regulates temperature and humidity to provide air quality. It will reduce air conditioning load and save your running costs further.
How to calculate the air volume?
1. Number of people × 30 m3/h
    Fresh Airflow Standard: 30 m3/h/person(Different environments with different standards.

2.Room size × Floor height × Fresh air change rate (times/m3/h)
   According to the size of room and fresh air change rate per hour.

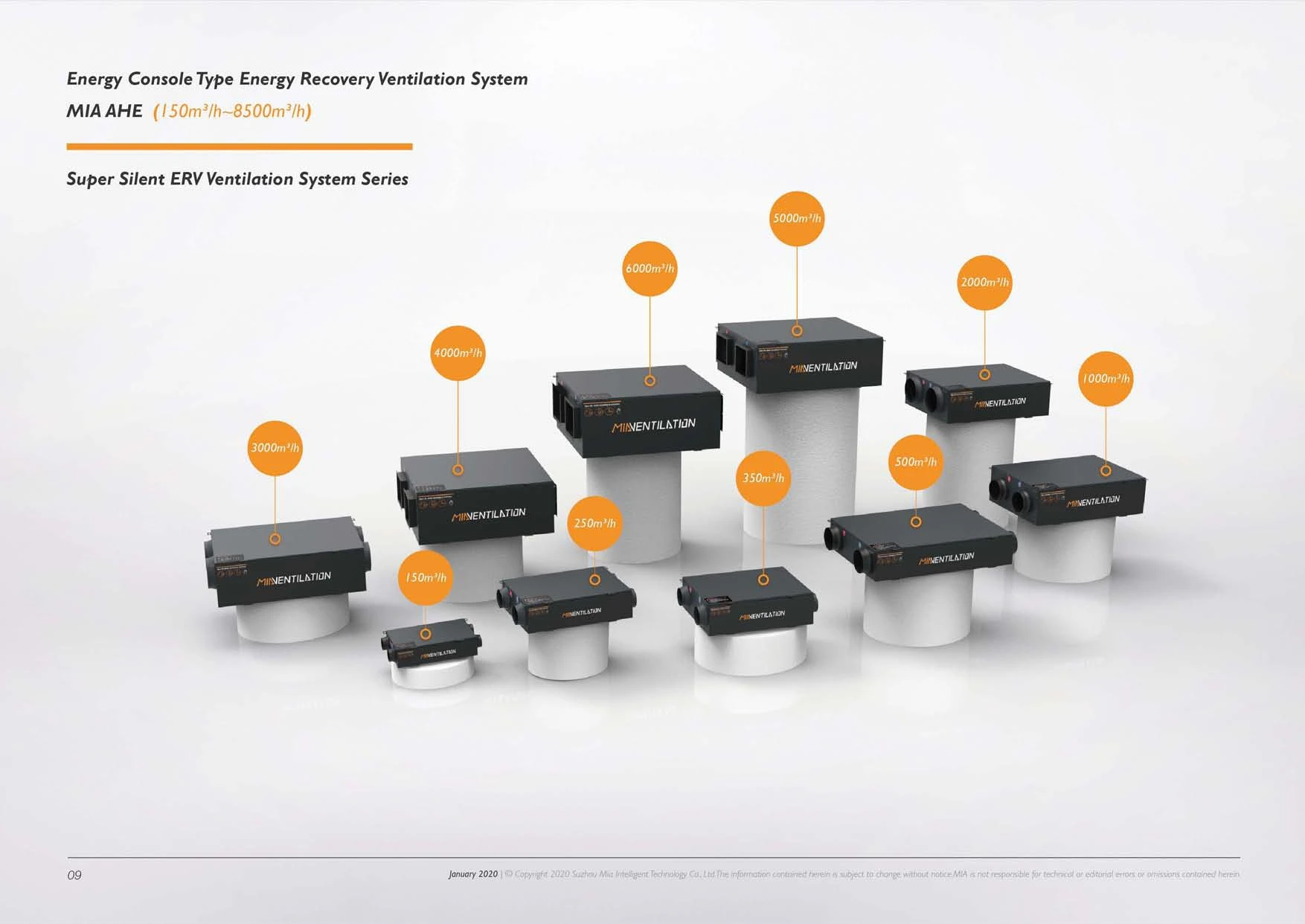

Product Ranges
Inside Setting
Energy Recovery Exchanger

The PSY high thermal conductivity of molecular material has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material.

Early Effect + Activated Carbon

The filter with composite fiber,sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. This washable filter can be used repeatedly, greatly reduces the total cost of consumables.

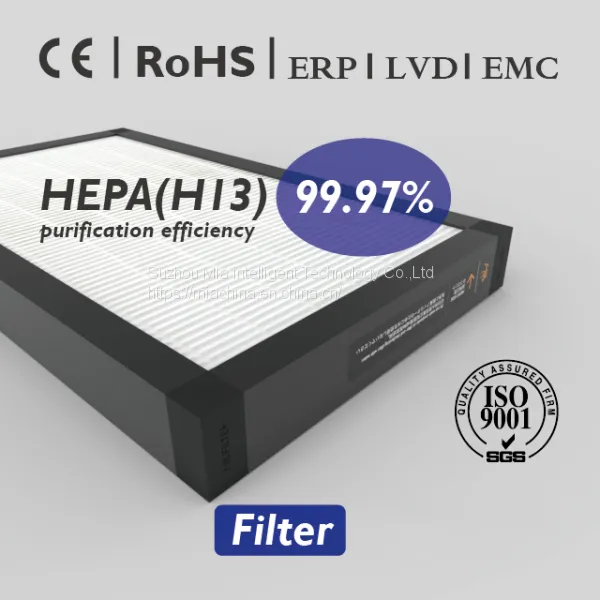

High Efficiency Hepa Filter
The filter element that we use is 3M HEPA, meeting the European standard-Hl3, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
High-voltage Electrostatic Dust Collection Filter (Optional)
lt's thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. lt's washable, also can becleaned with brush, and will not increase the using cost.

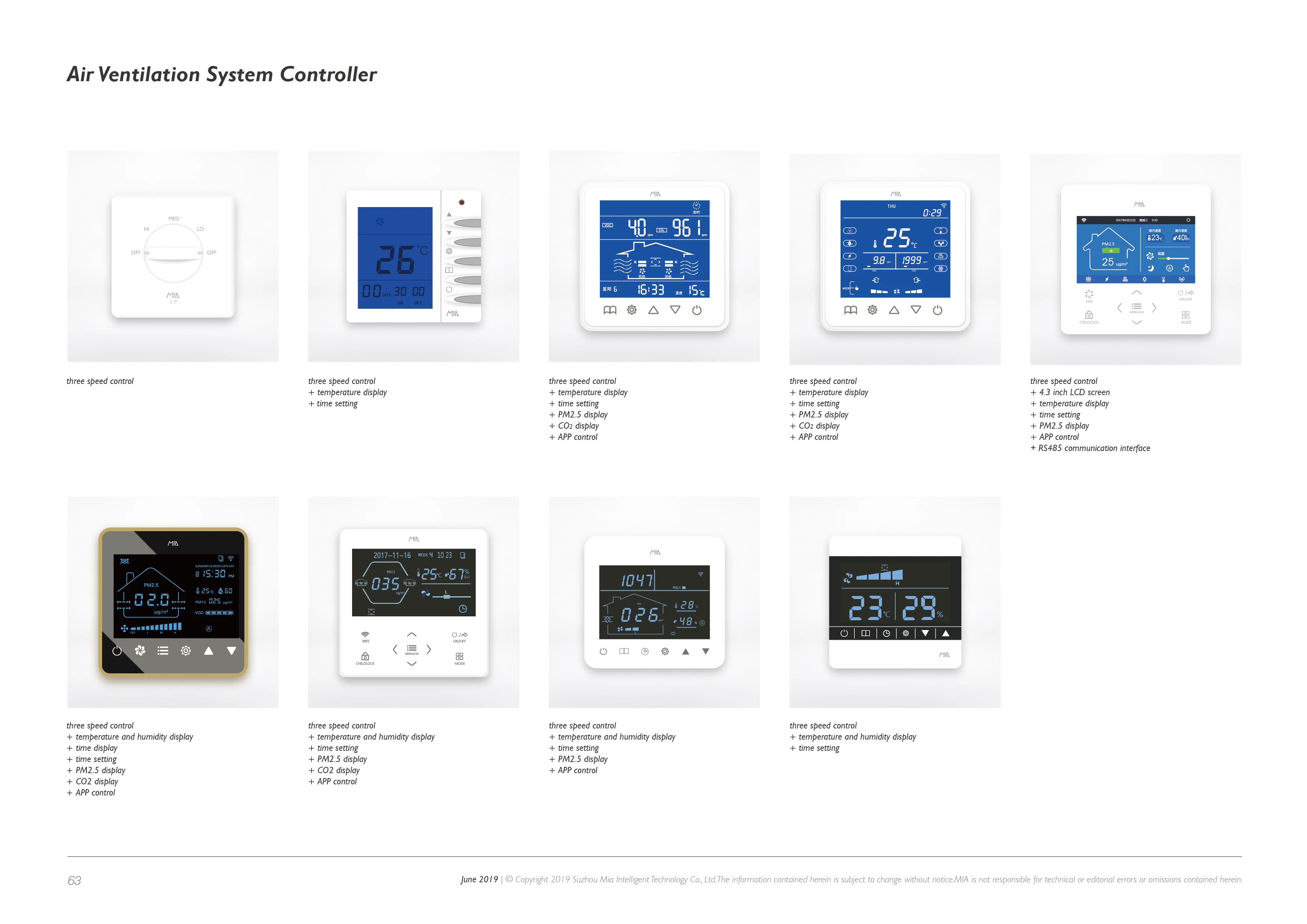

MIA-A900.
threee speed control
+ temperature and humidity display
+ time display
+ time setting
+ PM2.5 display
+ CO2 display
+ APP control
MIA-CA
threee speed control
+ temperature and humidity display
+ time setting

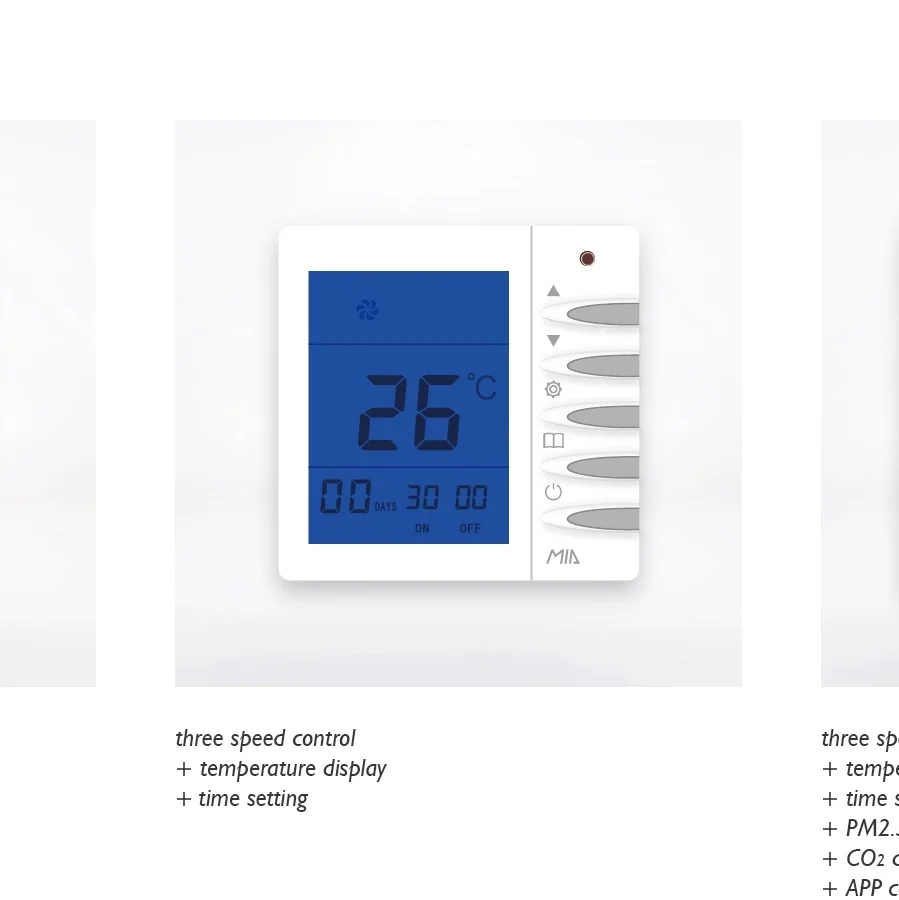

MIA-C900
threee speed control
+ temperature and humidity display
+ time setting
Why Choose Us
About us

We have over 36 years manufacturing experience, specializing in producing ERV(energy recovery ventilator), various kinds of fans, and air handling units,etc.

Equipment & technology

The Japanese team exclusively develops and provides technical support.

Service

1.Ten years long warranty period!

2.Provide the clients with one-stop service during pro-sales& after-sales.

Product Packing


Product Tags: Ventilation , Heat recovery unit
