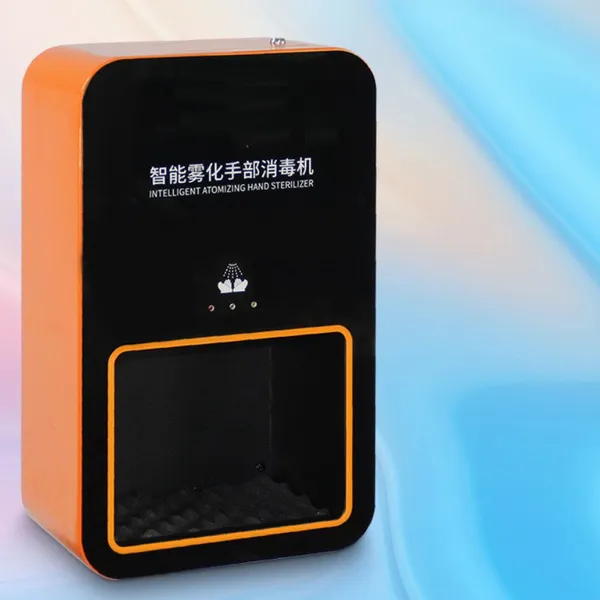

Large Capacity Automatic Alcohol Spray Sterilizer

Intelligent atomization hand disinfection machine H-S017

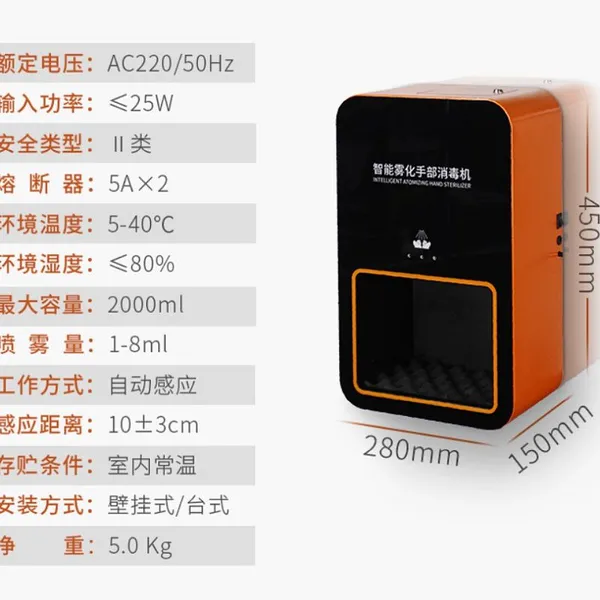

Rated voltage: AC220/50Hz

Power: 25W

Product size: 280 * 150 * 450mm

Security type: Level 2

Fuses: 5A * 2

Environmental temperature: 5-40 degrees

Environmental humidity: 80%

Capacity: 2000ML

Spray volume 1-8ML

Working mode: automatic sensing

Sensing distance: 10-13CM

Installation method: wall mounted/desktop

Net weight: 5KG

Operating instructions

1. When using, please clean and disinfect the disinfectant container of this machine. 75% alcohol disinfectant can be added to the container and soaked for 5-15 minutes. The machine should be gently shaken from time to time to achieve cleaning and disinfection effects. The liquid should be discharged from the drain valve and plugged back into the drain port.

2. Plug in the power supply and turn on the power switch. It can be seen that the red power indicator lights up. At this time, refill the disinfectant solution. When refilling the solution, be sure to use the configured special plastic filter funnel to prevent the liquid from overflowing into the machine and causing electric shock and damage to the machine, and also prevent the impurities contained in the liquid from blocking the spray nozzle.

3. When adding liquid, it should be done slowly. Pour in disinfectant with a loading capacity of no more than 2000ml. After adding the liquid, pull out the filter funnel, cover the container lid, and close the liquid inlet sliding cover. The liquid addition is completed.

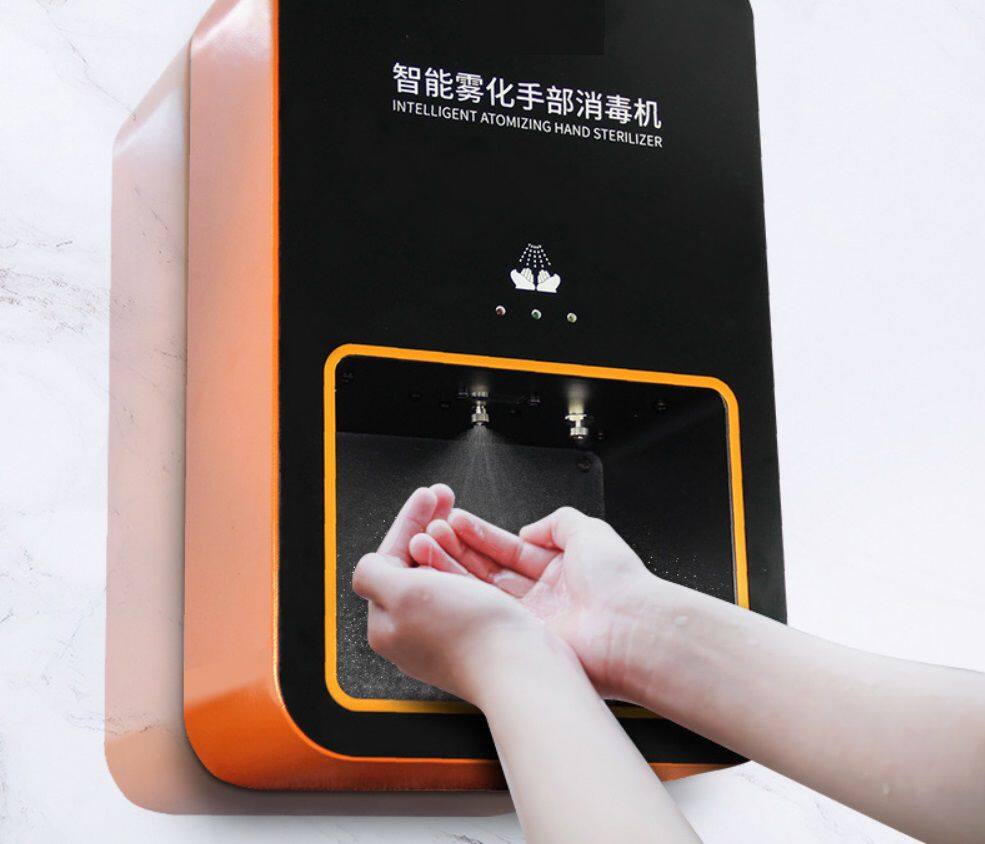

4. When using the machine, extend your hand to about 8cm below the spray nozzle of the machine for many times, so that the gas in the discharge pipeline of the machine can be sprayed normally. The green indicator flashes when spray. It indicates that the machine is working normally, and the green indicator light will also go out automatically when spray is stopped. If no liquid sprays out during use, check if there is a shortage of liquid and replenish it in a timely manner.
