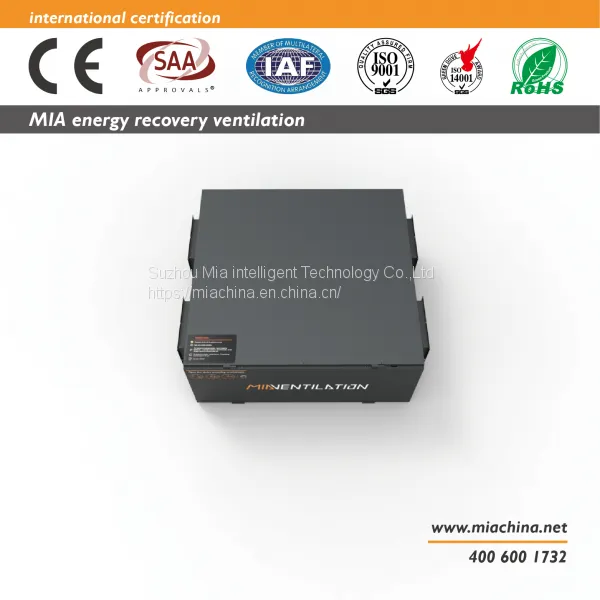

Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light

Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light thumbnail-1
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light thumbnail-2
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light thumbnail-3
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light thumbnail-4
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light thumbnail-5
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light photo-1
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light photo-2
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light photo-3
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light photo-4
Mia Ventilation Erv Ventilation System/recuperator With Easy Access Door and Optional Hvac uv Light photo-5
US$ 1500 - 2000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Place of Origin:
China
Model Number:
MIA-AHE400GL
Contact Supplier Request Quote Chat Now
Suzhou Mia Intelligent Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Place of Origin China
Model Number MIA-AHE400GL
Type HEPA Filter
Voltage (V) 220
Overview
Quick Details

  • Warranty:

  • More than 5 Years

  • After-sale Service:

  • Online Technical Support

  • Project Solution Capability:

  • others

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Model Number:

  • MIA-AHE400GL

  • Product name:

  • MIA Air To Air Energy Recovery Ventilator

  • Material:

  • SGCC

  • Feature:

  • Customized

  • Application:

  • Residential, Office Room, etc, HOTEL, villa, APARTMENT, OFFICE BUILDING, HOSPITAL, school, mall, Sports venues, Leisure Facilities, supermarket, WAREHOUSE, WORKSHOP

  • Function:

  • High Efficient Filtration Performance

  • Shape:

  • Square

  • Airflow:

  • 4000m3/h

  • Motor:

  • brushless fan

  • FIlter:

  • Hepa13+carbon-activated

  • Energy recovery exchanger:

  • PSY material
Supply Ability

  • Supply Ability:

  • 10000 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • Packaging Details Carton package with wooden box for safe export

  • Port

  • Shanghai Port

  • Lead Time :

  • Quantity(Sets) 1 - 10000 >10000
    Est. Time(days) 7 To be negotiated
Product Description
Highlights
High Speed External Rotor Motor: Japan NMB bearings, life more than 80,000 hours.
Washable Energy Recovery Exchanger: The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high energy recovery efficiency.
Pure Air: European standard H13 high efficiency>99.97%
Specification
Model
Voltage
Power
Volume
Pressure
Efficiency
Noise
MIA-AHE15JDN/MIA-AHE15GL/MIA-AHE15N
220V
73W/73W/70W
250m³/h
115Pa
88%~96%
26dB(A)
MIA-AHE25JDN/MIA-AHE25GL/MIA-AHE25N
220V
82W/82W/78W
250m³/h
132Pa
87%~95%
28dB(A)
MIA-AHE35JDN/MIA-AHE35GL/MIA-AHE35N
220V
96W/96W/88W
350m³/h
140Pa
86%~94%
29dB(A)
MIA-AHE50JDN/MIA-AHE50GL/MIA-AHE50N
220V
128W/128W/120W
500m³/h
160Pa
86%~94%
30dB(A)
MIA-AHE80JDN/MIA-AHE80GL/MIA-AHE80N
220V
188W/188W180W
800m³/h
160Pa
86%~91%
36dB(A)
MIA-AHE100JDN/MIA-AHE100GL/MIA-AHE100N
220V
266W/266W/260W
1000m³/h
170Pa
86%~91%
36dB(A)
MIA-AHE130JDN/MIA-AHE130GL/MIA-AHE130N
220V
272W/272W/265W
1300m³/h
170Pa
87%~91%
38dB(A)
MIA-AHE150JDN/MIA-AHE150GL/MIA-AHE150N
220V
298W/298W/285W
1500m³/h
175Pa
85%~88%
44dB(A)
MIA-AHE170JDN/MIA-AHE170GL/MIA-AHE170N
220V
315W/315W/310W
1700m³/h
180Pa
86%~88%
46dB(A)
MIA-AHE200JDN/MIA-AHE200GL/MIA-AHE200N
220V
335W/335W/330W
2000m³/h
205Pa
85%~90%
48dB(A)
MIA-AHE220JDN/MIA-AHE220GL/MIA-AHE220N
220V
352W/352W/340W
2200m³/h
210Pa
85%~90%
49dB(A)
MIA-AHE250JDN/MIA-AHE250GL/MIA-AHE250N
220V
420W/420W/360W
2500m³/h
260Pa
85%~89%
51dB(A)
MIA-AHE300JDN/MIA-AHE300GL/MIA-AHE300N
220V
510W/510W/480W
3000m³/h
260Pa
87%~91%
52dB(A)
MIA-AHE350JDN/MIA-AHE350GL/MIA-AHE350N
220V
580W/580W/560W
3500m³/h
265Pa
86%~91%
55dB(A)
MIA-AHE400JDN/MIA-AHE400GL/MIA-AHE400N
220V
710W/710W/600W
4000m³/h
280Pa
86%~92%
57dB(A)
MIA-AHE450JDN/MIA-AHE450GL/MIA-AHE450N
220V
820W/820W/780W
4500m³/h
285Pa
86%~91%
61dB(A)
MIA-AHE500JDN/MIA-AHE500GL/MIA-AHE500N
220V
920W/920W/900W
5000m³/h
320Pa
86%~90%
64dB(A)
MIA-AHE550JDN/MIA-AHE550GL/MIA-AHE550N
220V
1020W/1020W/980W
5500m³/h
320Pa
86%~91%
64dB(A)
MIA-AHE600JDN/MIA-AHE600GL/MIA-AHE600N
220V
1280W/1280W/1100W
6000m³/h
330Pa
85%~91%
65dB(A)
MIA-AHE700JDN/MIA-AHE700GL/MIA-AHE700N
220V
2.55KW/2.55KW/2.2KW
7000m³/h
350Pa
85%~91%
65dB(A)
MIA-AHE750JDN/MIA-AHE750GL/MIA-AHE750N
220V
3.46KW/3.46KW/2.8KW
7500m³/h
350Pa
84%~90%
65dB(A)
MIA-AHE800JDN/MIA-AHE800GL/MIA-AHE800N
220V
3.88KW/3.88KW/3.6KW
8000m³/h
360Pa
83%~91%
66dB(A)
MIA-AHE850JDN/MIA-AHE850GL/MIA-AHE850N
220V
4.42KW/4.42KW/4.1KW
8500m³/h
365Pa
83%~90%
66dB(A)
Filteration
Energy Recovery Exchanger

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can
infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and
molds production.
High-voltage Electrostatic Dust
With pin type electric discharge way, the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. Its thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It's washable, also can be cleaned
with brush, and will not increase the using cost.
Early Effect+Activated Carbon
The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can ilter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect +activated carbon, greatly reduces the total cost of consumables.

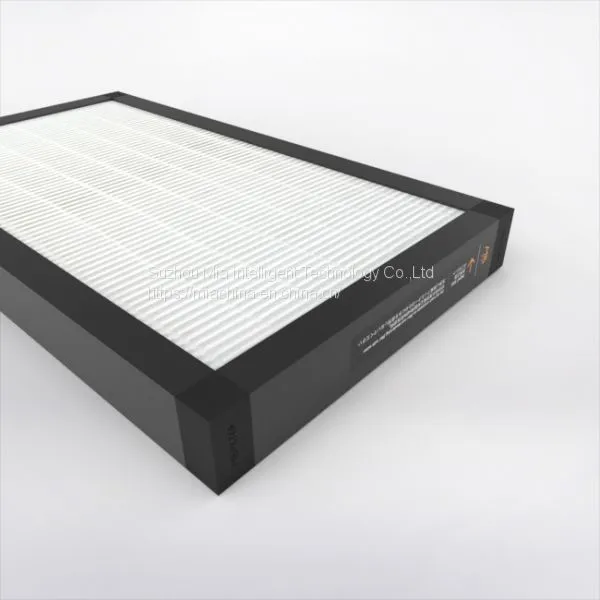

High Efficiency Particulate Air Filter
The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental- friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total
cost.

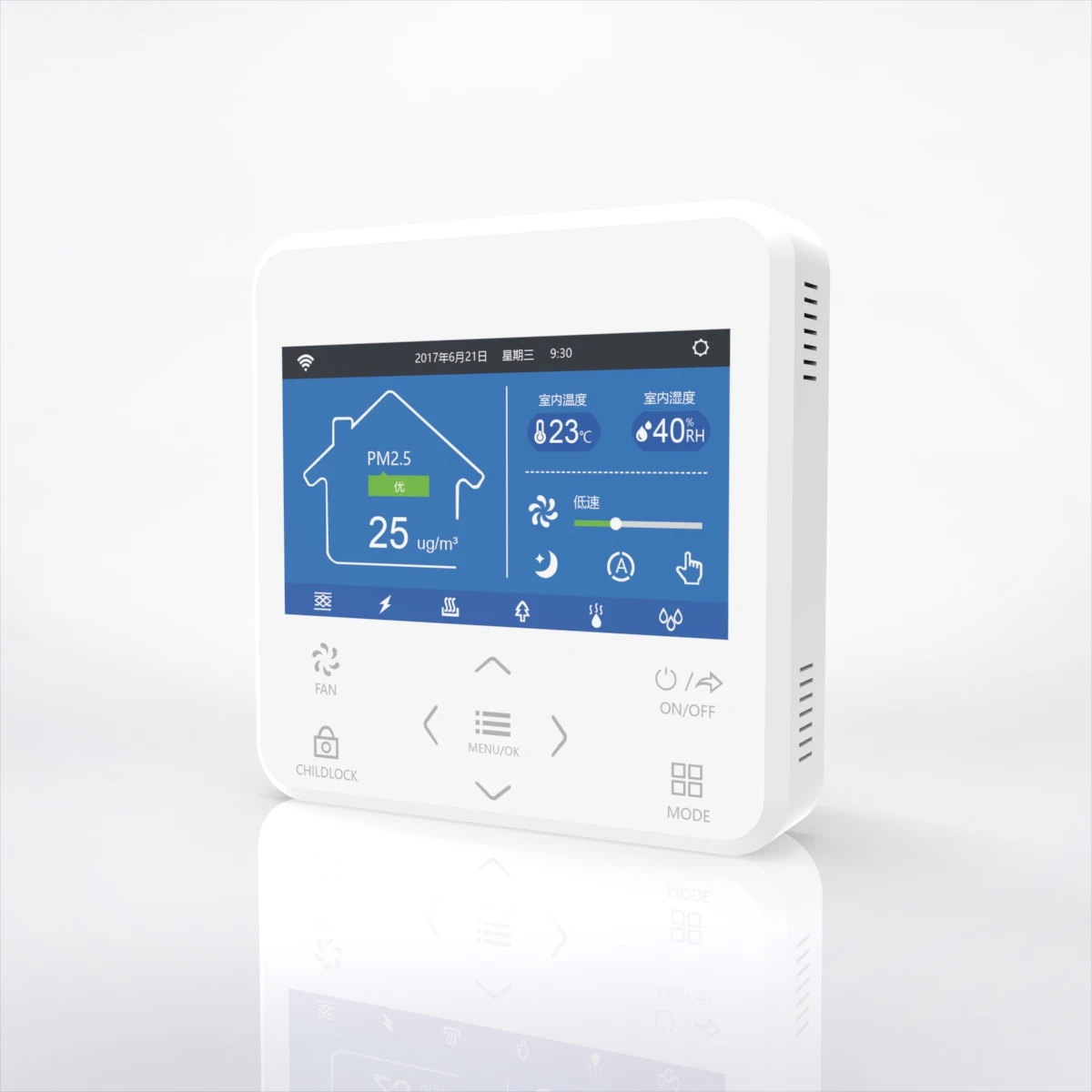

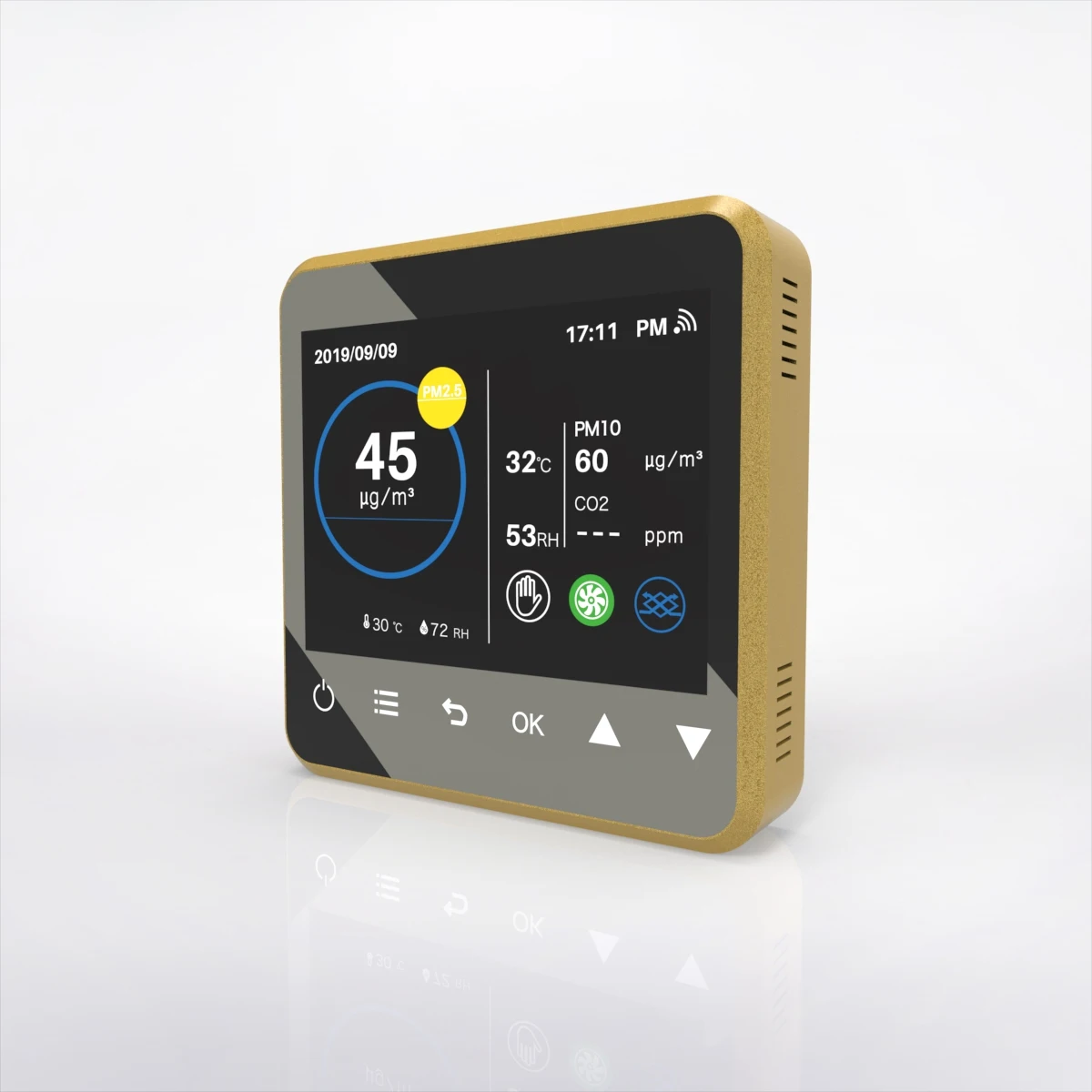

Controllers
Certifications
FAQ
Q1. Are you a factory?
Yes. We are professional ventilator manufacturer, specializing in the design, development, manufacture and sales.

Q2. How to calculate the air volume?

*Number of people × 30 m3/h.

*Room size × Floor height × Fresh air change rate (times/m3/h)

Q3. why do you choose us ?
*The Japanese team exclusively develops and provides technical support.
*Ten years long warranty period!
*Provide the clients with one-stop service during pro-sales& after-sales.
*Delivery time : We have stock for the under 8000m3/h , and we can ship at 3-5 workingdays .
*HEPA(H13) Air Filter: other companies use the HEPA (11) or HEPA(12), but we use the HEPA (13),meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97% . The filter element that we use is 3M HEPA.

Q4. Where is your factory located? How can I visit there?
The headquarted located in Suzhou Jiangsu Province , and near Shanghai .
You can take the train or plane arrive . We'll meet you at our factory from the station.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
