180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home

180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home thumbnail-1
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home thumbnail-2
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home thumbnail-3
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home thumbnail-4
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home thumbnail-5
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home photo-1
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home photo-2
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home photo-3
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home photo-4
180 Cmh Wall Mounted Home Energy Recovery Ventilation System Heat Recovery Recuperator Air To Air Heat Exchanger System For Home photo-5
US$ 250 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MIA
Model Number:
MIA-AHE/BGL
Certification:
CE, ROHS
Contact Supplier Request Quote Chat Now
Suzhou Mia Intelligent Technology Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MIA
Model Number MIA-AHE/BGL
Certification CE, ROHS
Type HEPA Filter
Voltage (V) 220
Power (W) 48
Installation Other, Wall-mounted
Overview
Quick Details

  • Warranty:

  • More than 5 Years, 10 Years

  • After-sale Service:

  • Online Technical Support, Free spare parts

  • Project Solution Capability:

  • others

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • MIA

  • Model Number:

  • MIA-AHE/BGL

  • Airflow:

  • 180CMH

  • Voltage:

  • 220V

  • Power:

  • 48W

  • Efficiency:

  • 92.5%~94%

  • Noise:

  • 16~22dB(A)

  • Size (L*W*H):

  • 506.3*196.5*702.1mm

  • Hole Diameter:

  • 100mm

  • Net Weight:

  • 21kg

  • Certificates:

  • CE, RoHS, ErP, ISO, SAA, 3C, etc

  • Application:

  • HOTEL, villa, APARTMENT, OFFICE BUILDING, HOSPITAL, school, mall, Sports venues, Leisure Facilities, supermarket, WAREHOUSE, WORKSHOP
Supply Ability

  • Supply Ability:

  • 10000 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • Packaging Details Carton package with wooden box for safe export
    1. Selling units: Single item
    2. Single package size: 550*240*1035mm
    3. Single gross weight: 45kg
    4. Picture Example:

  • Port

  • Shanghai Port

  • Picture Example:

  • package-img



    package-img

  • Lead Time :

  • Quantity(Sets) 1 - 10 11 - 20 >20
    Est. Time(days) 7 15 To be negotiated
Product Description
Technical Parameters
Model
MIA-AHE/BJD
Air Volume
180m³/h
Voltage
220V
Power
48W
Efficiency
92.5%~94%
Noise
16~22dB(A)
Size (L*W*H)
506.3*196.5*702.1mm
Φd
100mm
Net Weight
21kg
Motor
AC inner rotor motor
Brand Name:
MIA
Warranty:
10 years
Place of Origin:
Suzhou, China
Certification:
CE, ErP, RoHS, SAA, ISO, CCC
Type:
Energy Recovery Ventilator
Application:
Residential, Office Room, etc
Heat exchanger core:
Cross counterflow heat exchanger (Washable core)
Installation:
Wall-mounted
Function:
Heat recovery fresh air handling unit
Exchange heat and humidity
After-sales Service:
Overseas service center available
Filter Class:
Early effect activated carbon + HEPA(H13) filter + High-voltage electrostatic dust filter
Model
Filter Class
MIA-AHE/BGL
Early effect activated carbon + HEPA(H13) filter
MIA-AHE/BJD
Early effect activated carbon + HEPA(H13) filter + High-voltage electrostatic dust filter

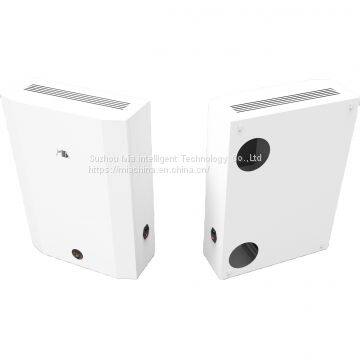

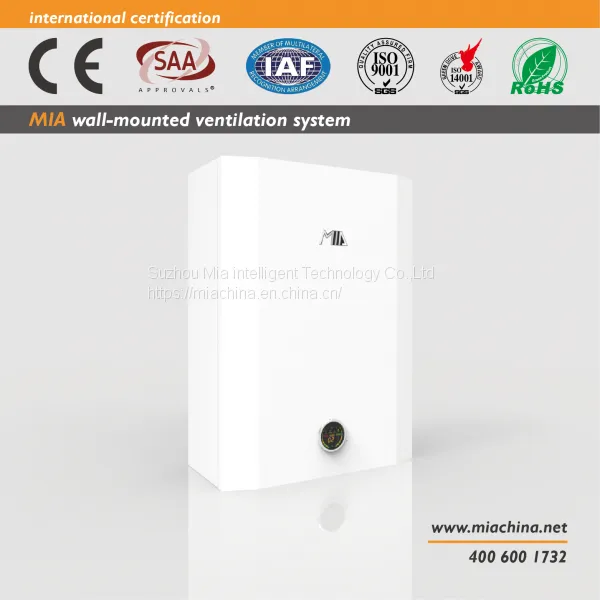

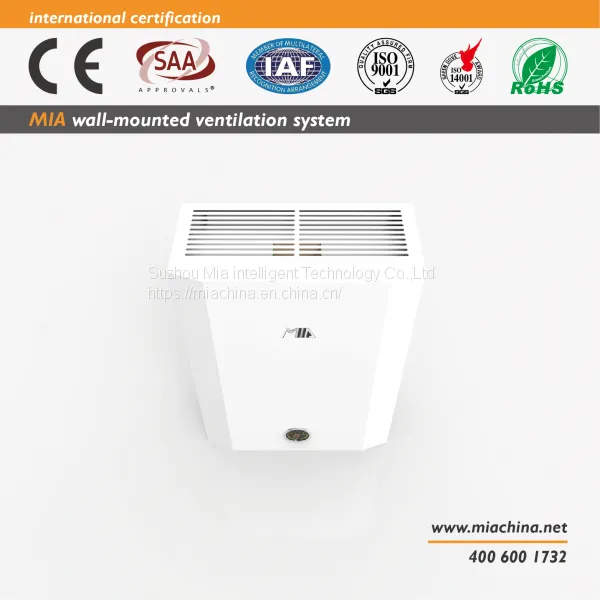

Wall-mounted Energy Recovery Ventilation 180cmh
"0" PM2.5 Extremely Pure Air
European standard H13 high efficency ≥ 99.97%
Washable Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high energy recovery efficiency. It can exchange both temperature and humidity.
Ultra-quiet and energy-saving
MIA ventilation equipment: small power, large air flow, super silent. Originated from 1983s, MIA ventilation equipment have entered the market over 30 years.
MIA Energy Recovery Exchanger & Air Purification System
Washable PSY energy recovery exchanger
The high thermal conductivity of molecular material, developed by Japanese DR team, efficiency up to 90%. It can infiltrate water molecules in the process of heat exchange. With the washable material, it also can avoid the problem of bacteria and molds production.
The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can filter dust particle effiently and the wind resistance is very small. The even-distributed activated carbon. This washable can be used repeatedly, and two in one way, greatly reduces the total cost of consumables.

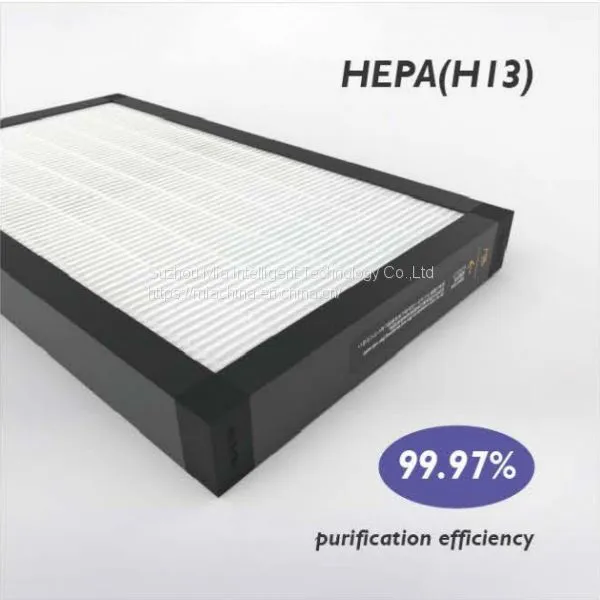

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the enviromental friendly imparted sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

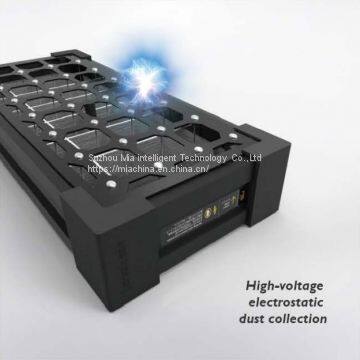

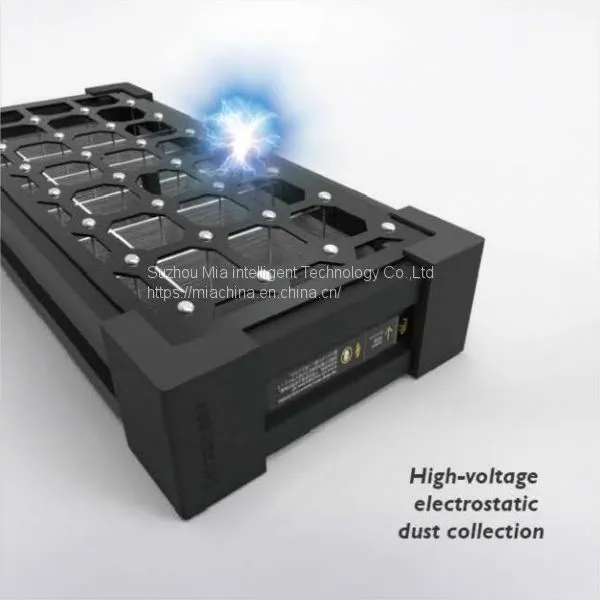

With pin type electric discharge way, the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. It's thickness in only 4cm, can de suitable for all kinds of models. The removel rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infrction. It's washable, also can be cleaned with brush, and will not increase the using cost.
Energy Recovery Exchanger Principle
Product Display
Packing & Delivery
Applicable Scenarios
Why Choose Us
Production and Delivery process
Certifications
