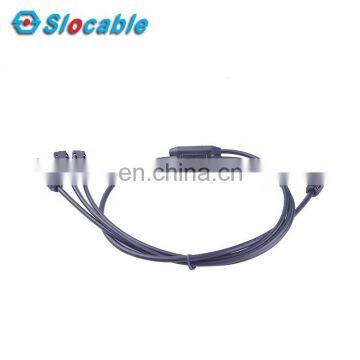

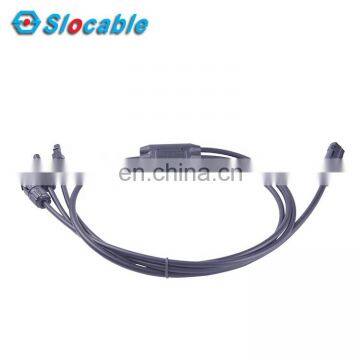

Slocable PV1-F or EN50618 6mm2 and 4mm2 10cm Solar Cable with Solid Copper PV Connector 3to1 Wire Assembly
Detail information of Solar Connector 2to1:
1. Solar Connectors:
- Simple on-site processing
- Mating safety provided by keyed housings
- Multiple plugging and unplugging cycles
- Accommodates PV cables with different insulation diameters
- High current carrying capacity
- CE, TUV and ISO approved
2. Solar Cables:
- Dual wall insulation, electron beam cross-linked.
- Excellent resistance to U.V., water, ozone, fluids, salt, general weathering.
- Excellent resistance to abrasion.
- Halogen free, flame retardant, low toxicity.
- Excellent flexibility and stripping performance.
- High current carrying capacity.
- CE TUV and ISO approved
Technical Data of of Solar Connector 2to1 Assembly:
Technical Data of Solar Connectors | |
Rated current: 50A (2.5-6mm²) | Degree of protection: IP2*/IP68 |
Retaed voltage: 1500V/1000V DC | Flame class: UL94-V0 |
Test voltage: 6000V(50Hz,1min) | Safety class: II |
Overvoltage category: CATIII | Suitable cable: OD4.5-8.5 (2.5-6.0mm²) |
Contact resistance: <0.5mΩ | Insertion/ withdrawal force: ≤50N/≥50N |
Contact material: Copper, Tin Plated | Connecting System: Crimp connection |
Insulation material: PPO | Temperature range: -40℃ ~+90℃ |

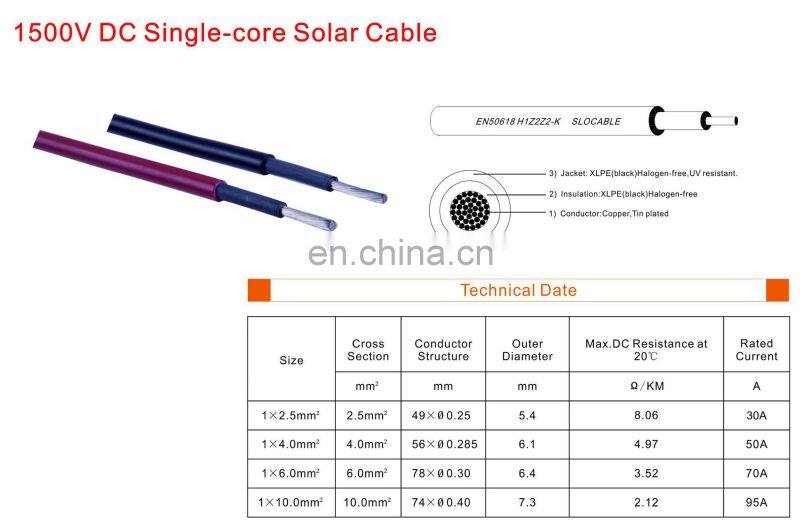

Technical Data of Solar Cables | |
Wire: Copper (Class 5, tinned) | UV resistance |
Insulation material: XLPE | High wear and abrasion resistance |
Double insulation | Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
Halogen-free | Smallest permissible bending radius : 5 x D |
High resistance against oil, greases, oxygen and ozone | Temperature range: -40℃ ~ +90℃ |
Microbe-resistant | Colours: Black, Red |

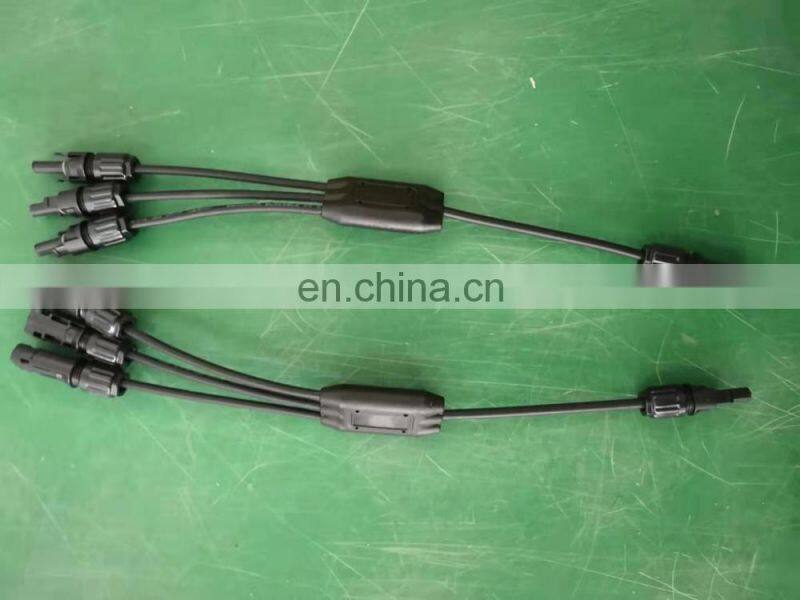

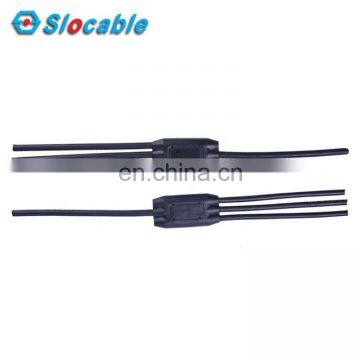

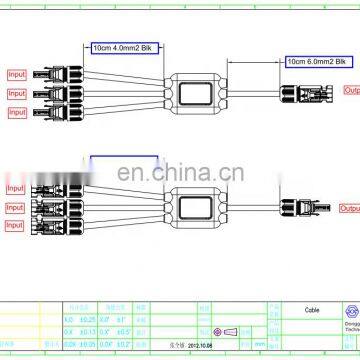

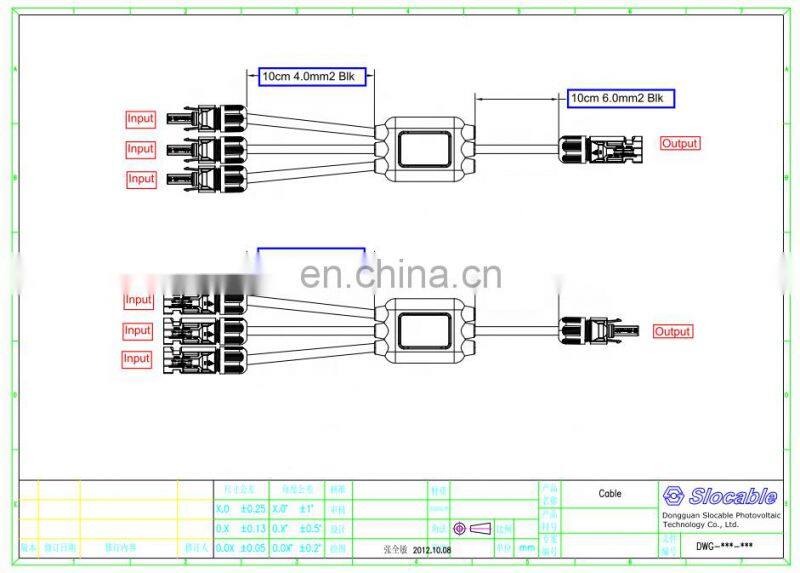

Pictures of Solar Connector 2to1
Click the following picture to get more information of 3 to 1 Connector
