Slocable Solar System PV Wires with Connectors 1Meter 4mm2 Cable Assembly

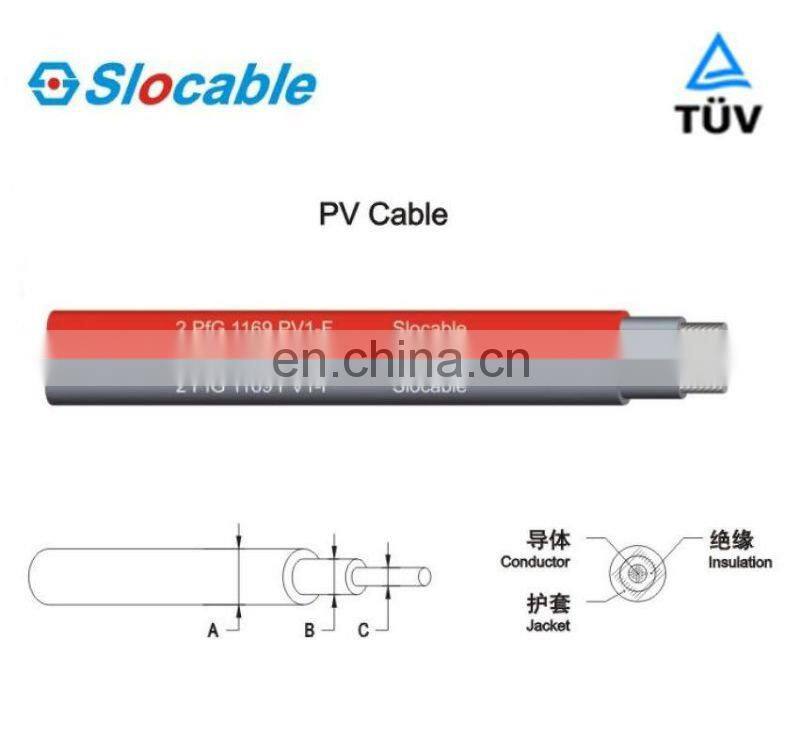

Technical Data of PV Cables and PV Connectors
Cables / Wires
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x4mm2 | 4.0mm2 | 56 x φ0.3mm | 2.6mm | 4.97 Ω/km | 6.2mm | 1000V | 50A |
Wire: Copper, Class 5, tinned | Temperature range: -40~+90℃ |
Insulation material: XLPE / XLPO | High wear and abrasion resistance |
Double XLPE insulation | Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
Halogen-free | Smallest Permissible Bending Radius: 5 x D |
Microbe-resistance | Colours: Black or Red |
Connectors
| PV Terminal Connector Technical Data | |||
| Rated Current | 50A | Degree of Protection | IP2*/IP68 |
| Rated Voltage | 1000V DC | Flame Class | UL94-V0 |
| Test Voltage | 6000V(50Hz,1min) | Safety Class | II |
| Overvoltage Category | CATIII | Suitable Cable | OD 4.5-8.5mm (2.5-10.0mm²) |
| Contact Resistance | <0.5mΩ | Temperature Range | -40℃~+85℃ |
| Contact Material | Copper, tin plated | Insulation Material | PPO/PPE |

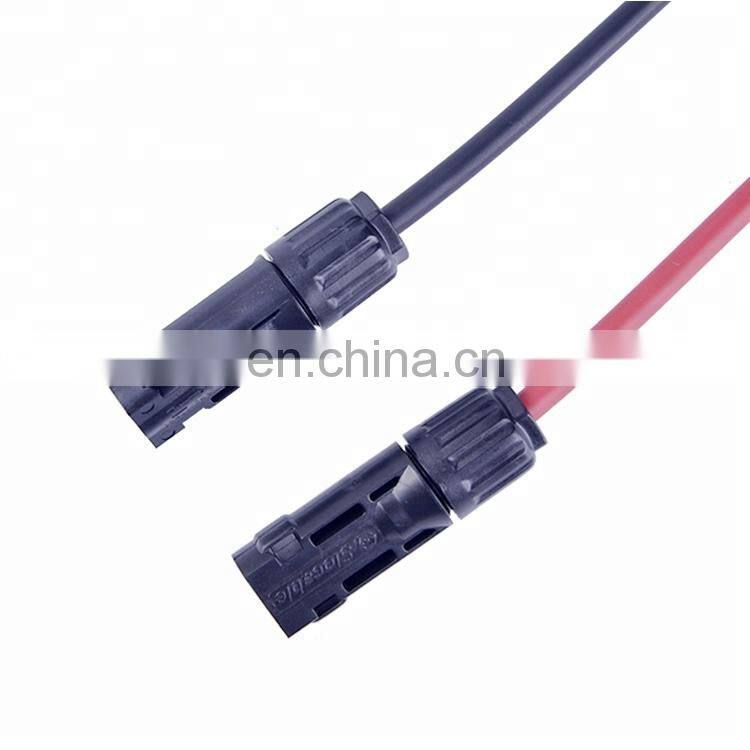

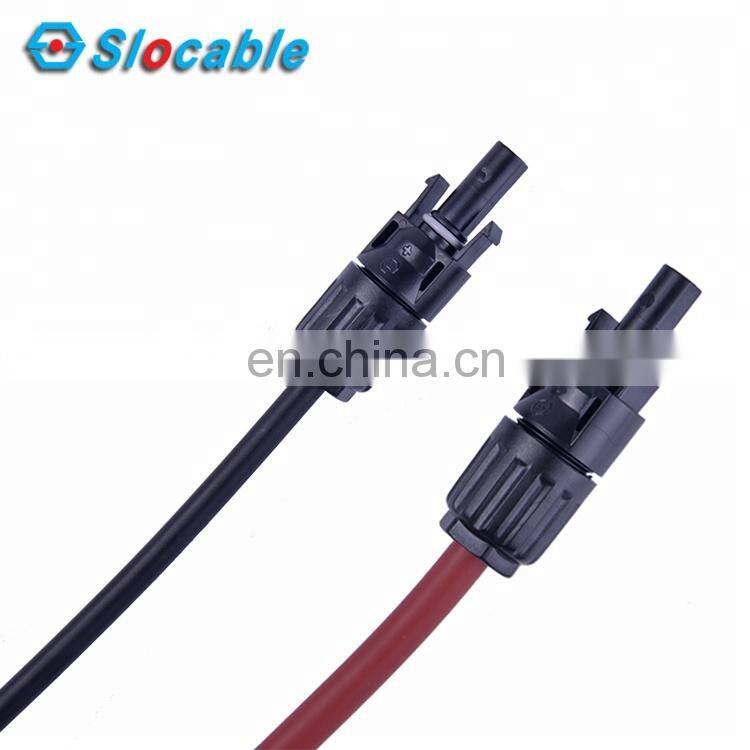

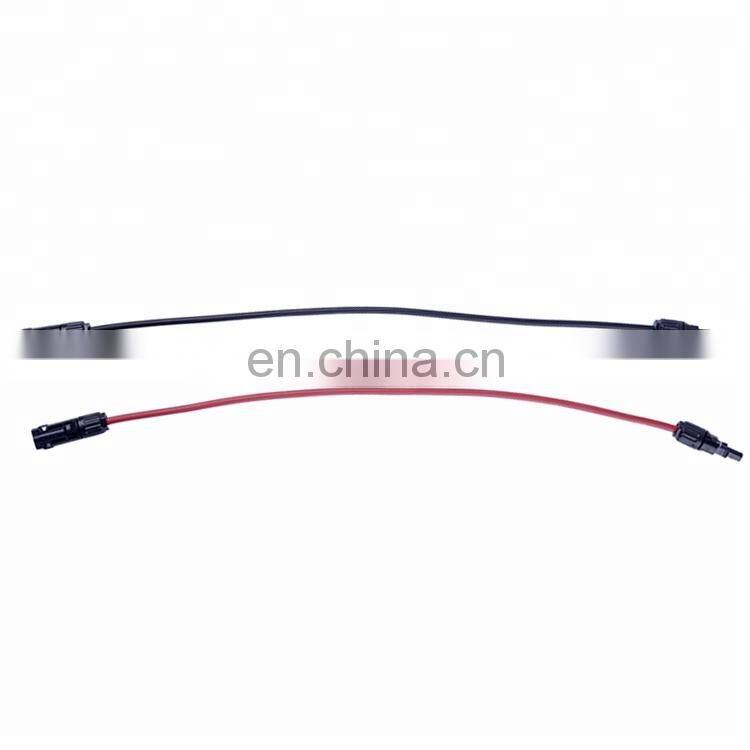

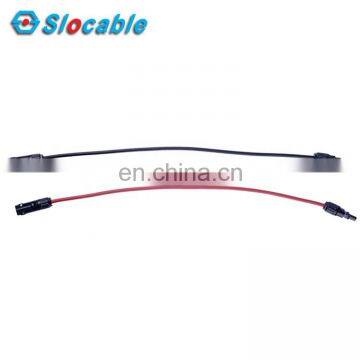

Pictures of Solar Panel Extension Cable:

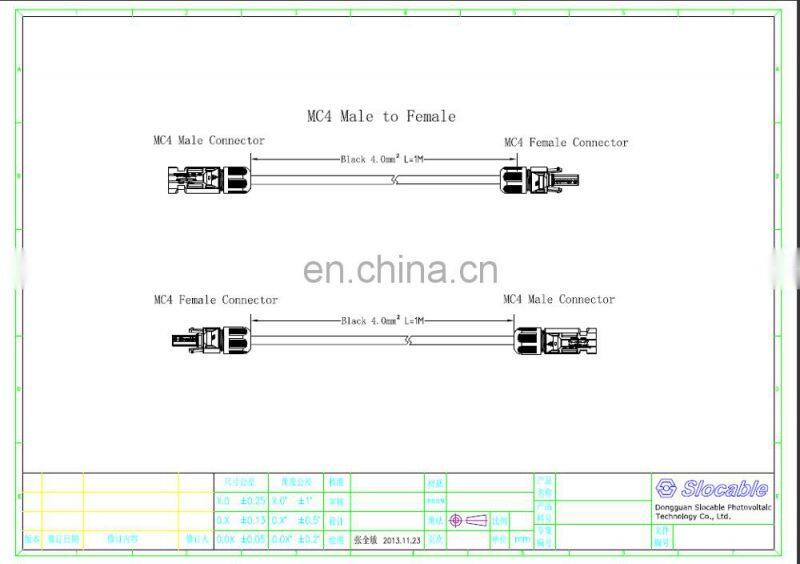

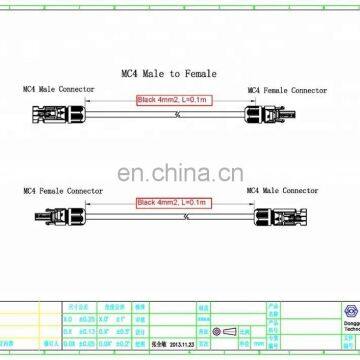

(Length: 1m)
(We can produce 2in1, 3in1, 4in1, 5in1 and other customized cables assemblies,
you can consult me directly if necessary)
Click the picture to get more Slocable products
Who are we:
What we have:
How we transport products:
What we did:
IF any inquiry, please contact me!
