Slocable Branch Cable 6mm2 Solar Cable Main Line 10cm and 4mm2 Branch Line 10cm Solar Wire with Solid Copper Connector
Detail information of Solar Connector 2to1:
1. Solar Connectors:
- Tinned Solid Copper Terminals Pins
- Simple on-site processing
- Mating safety provided by keyed housings
- Multiple plugging and unplugging cycles
- Accommodates PV cables with different insulation diameters
- High current carrying capacity
- CE and TUV approved
2. Solar Cables:
- Dual wall insulation, electron beam cross-linked.
- Excellent resistance to U.V., water, ozone, fluids, salt, general weathering.
- Excellent resistance to abrasion.
- Halogen-free, flame retardant, low toxicity.
- Excellent flexibility and stripping performance.
- High current carrying capacity.
- CE and TUV approved
Technical Data of of Solar Connector 2To1:
|
Technical Data of Solar Connectors |
|
|
Rated current: 50A (2.5-6mm²) |
Degree of protection: IP2*/IP68 |
|
Retaed voltage: 1500V/1000V DC |
Flame class: UL94-V0 |
|
Test voltage: 6000V(50Hz,1min) |
Safety class: II |
|
Overvoltage category: CATIII |
Suitable cable: OD4.5-8.5 (2.5-6.0mm²) |
|
Contact resistance: <0.5mΩ |
Insertion/ withdrawal force: ≤50N/≥50N |
|
Contact material: Copper, Tin Plated |
Connecting System: Crimp connection |
|
Insulation material: PPO |
Temperature range: -40℃ ~+90℃ |
|
Technical Data of Solar Cables |
|
|
Wire: Copper (Class 5, tinned) |
UV resistance |
|
Insulation material: XLPE/XLPO |
High wear and abrasion resistance |
|
Double insulation |
Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
|
Halogen-free |
Smallest permissible bending radius: 5 x D |
|
High resistance against oil, greases, oxygen and ozone |
Temperature range: -40℃ ~ +90℃ |
|
Microbe-resistant |
Colours: Black, Red |

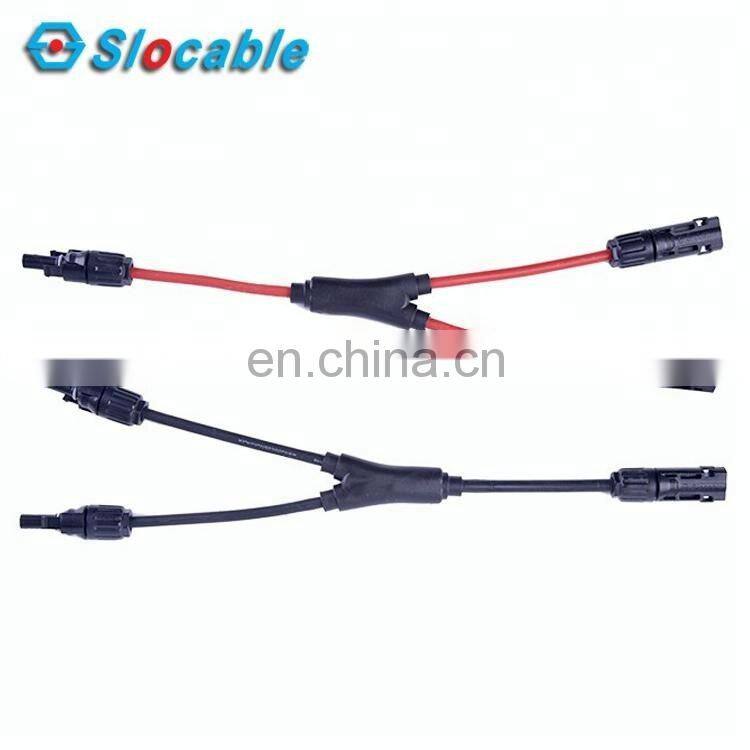

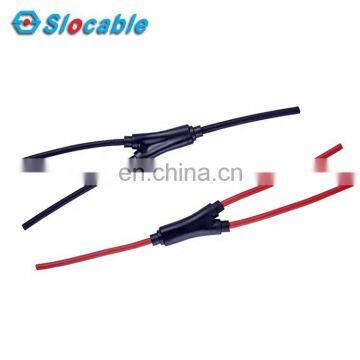

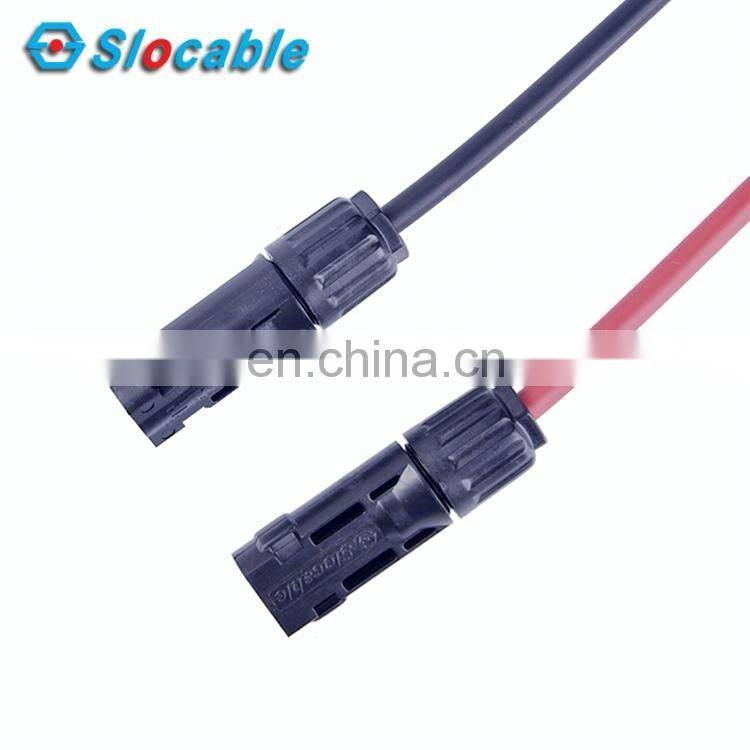

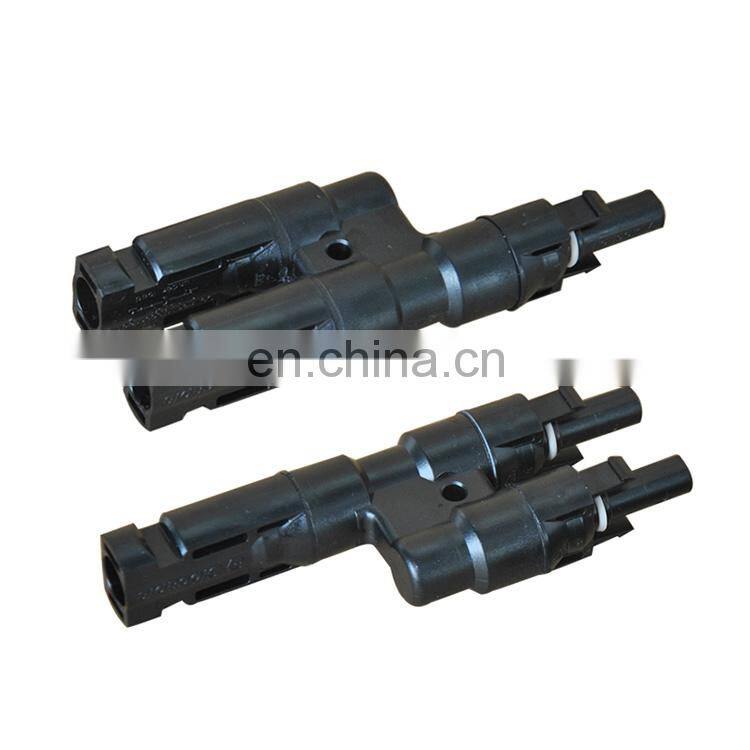

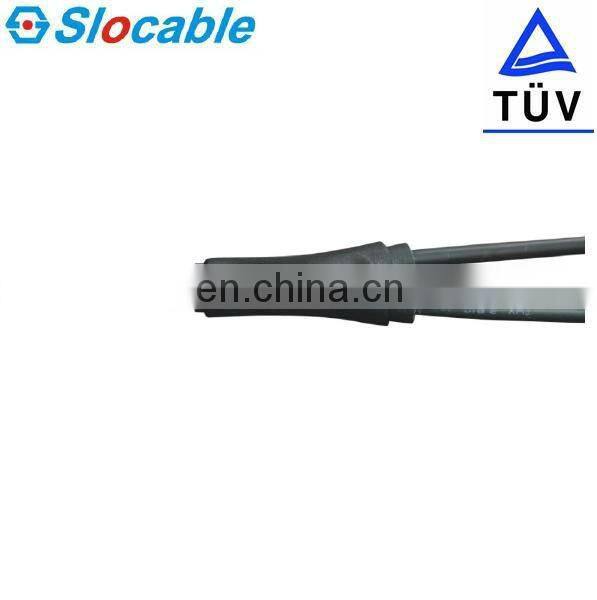

Pictures of Solar Connector 2To1
Click the following picture to get more information of 2 to 1 Connector
Slocable Certificate
Slocable Factory
Successful Cases
IF any inquiry, do not hesitate to contact me!
