Aluminum Electrical Wire for Industry Equipment and Power Distribution System EAL QZ
US$ 3.96
1000 - 4999 Kilograms
US$ 3.66
5000 - 19999 Kilograms
US$ 3.23
≥20000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Certification:
ISO9001, ROHS
Insulation Material:
Enameled
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Factory Direct Sale Enamelled Pure Aluminum Wire 0.16mm 2.5mm for Electromagnetic CoilUS$ 4.92MOQ: 500 Kilograms -
MB QZ/155 EAL ENAMELED ALUMINUM WINDING WIREUS$ 9.90 - 10.00MOQ: 1000 Kilograms
-
MB QA/155 EAL ENAMELED ALUMINUM WINDING WIREUS$ 4.40 - 4.50MOQ: 1000 Kilograms
-
MB QZY/180 EAL ENAMELED ALUMINUM WINDING WIREUS$ 4.40 - 4.50MOQ: 1000 Kilograms
-
MB QZYXY/200 CLASS EAL ENAMELED ALUMINUM WINDING WIREUS$ 4.80 - 5.00MOQ: 1000 Kilograms
Type
Insulated
Certification
ISO9001, ROHS
Insulation Material
Enameled
Conductor Material
Aluminum
Material Shape
Round Wire
Range of Application
Other
Diameter
0.10mm-7.00mm
Model Number
QXYL QZL Q(ZY/XY)
Brand Name
RONGDA
Place of Origin
Anhui, China
Shape
Round
Temperature
155-220
Product name
Enameled aluminum wire
Material
Insulating Varnish
Packing
Spool+carton+pallet
Service
OEM Service
MOQ
1000KG
Payment
TT LC
Advantage
10+ Years Experience
Delivery time
10-25days
Origin
Anhui , China
Specification
item |
value |
Place of Origin |
China |
| Anhui | |
Application |
AUTO, Transformer, Industrial, ELECTRONICS, power, Cable, medical equipment |
Conductor Material |
Aluminum |
Conductor Type |
Solid |
Insulation Material |
Enameled |
Rated voltage |
600V, 450V, 12V , 24V, 750V, 300V, 220V |
Temperature |
155-220 |
Shape |
ROUND |
Diameter |
0.10mm-7.00mm |
Brand Name |
RONGDA |
Model Number |
QXYL QZL Q(ZY/XY) |
Type |
insulated |
Product name |
Enameled aluminum wire |
Material |
Insulating Varnish |
Packing |
Spool+carton+pallet |
Certification |
ROHS/CCC/VDE/CCC/ISO9001:2008 |
Service |
OEM Service |
MOQ |
1000KG |
Payment |
TT LC |
Advantage |
20+ Years Experience |
Delivery time |
10-25days |

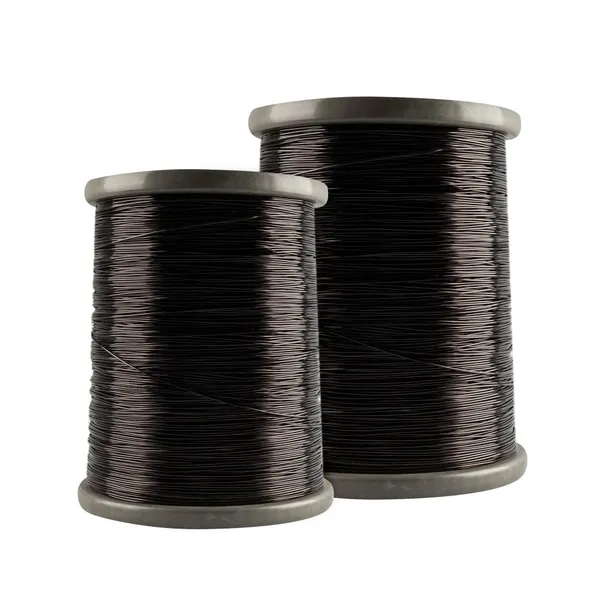

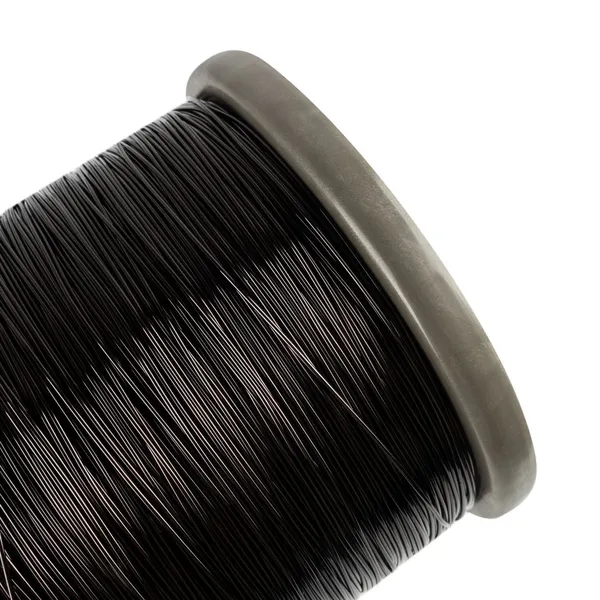

Polyester enameled aluminum wire class 130L/155 (HS code:854419), is composed of aluminum conductor and insulating layer：bare aluminum wire is annealed and softened, painted and baked for many times. Polyester (modified polyester) enameled wire, the thermal grade of ordinary polyester enameled wire is 130, and the thermal grade of modified enameled wire is 155. The product has high mechanical strength, good elasticity, scratch resistance, adhesion, electrical performance and solvent resistance.
Details lmages
The product has high mechanical strength, good elasticity, adhesion, electrical performance and solvent resistance. It is mainly used in Class B motor coils of various ordinary motors, electrical appliances and household appliancesProduction Flow
Production Workshop
Xuancheng Rongda Electrical Technology Co., Ltd., formerly known as Suzhou Rongda Electrical Material Factory, is located in the Xuancheng Development Zone, Anhui Province, with a registered capital of 10 million RMB. Since its establishment in 2021, the company has been dedicated to the professional production and sales of enameled wire. We have introduced internationally advanced wire drawing, testing, and environmentally friendly enameled equipment, with an annual production capacity of 8,000 tons of enameled magnet wire.
Our product range includes various types of enameled wires, such as polyurethane (QA/UEW, 155/180 grade), polyester (QZ/PEW, 130/155 grade), 180 grade polyesterimide (QZY/EIW), and 200 grade polyamide-imide overcoated with polyesterimide (QZY/XY/EI/AIW), with diameters ranging from 0.05 to 7.00 mm.
