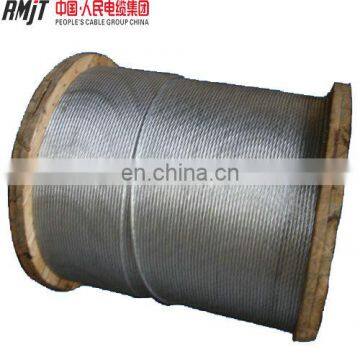

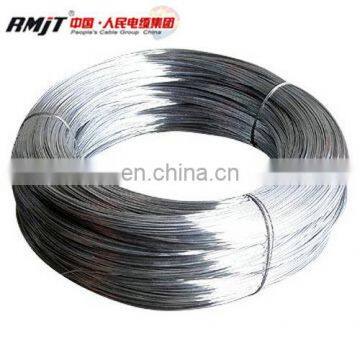

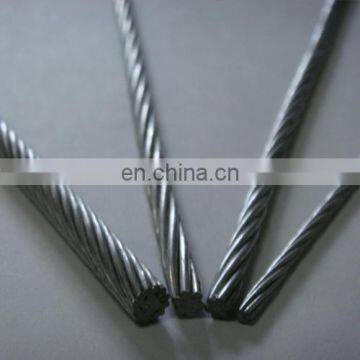

Galvanized Steel Wire/Stay Wire/Guy Wire for Fence Mesh
Galvanized steel wire
1) Construction: 1X7, 1X19
2) Diameter: 0.6mm--9mm
3) Length: 1000m--2000m / reel
4) Lay: right hand regular lay or left hand regular lay
5) Material: #45, #60, #70 carbon steel
6) Surface: electric galvanized or hot dipped galvanized
7) Nominal tensile strength: 1270MPa, 1370MPa, 1570MPa, 1670MPa, 1770MPa
8) Package: in ply-wooden reels
| Nominal diameter of Strand. In (mm) | Number of Wires in Strand | Nominal diameter of Coated Wires in Strand. (mm) | Approximate Weight of Strand (kg/304.8m) | Minimum Breaking Strength of Strand (KN) | ||||
| Utilities Grade | Common Grade | Siemens Martin Grade | High Strength Grade | Extra High Strength Grade | ||||
| 3/16 (4.76) | 7 | 1.57 | 33 | ----- | 5.115 | 8.452 | 12.677 | 17.748 |
| 7/32 (5.56) | 3 | 2.64 | 40 | ----- | 6.228 | 10.409 | 15.569 | 21.796 |
| 7/32 (5.56) | 7 | 1.83 | 44 | ------ | 6.85 | 11.387 | 17.126 | 24.02 |
| 1/4 (6.35) | 7 | 2.03 | 55 | ------ | 8.452 | 14.012 | 21.129 | 29.581 |
| 9/32 (7.14) | 7 | 2.36 | 74 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 |
| 5/16 (7.94) | 7 | 2.64 | 93 | ----- | 14.234 | 23.798 | 35.586 | 49.82 |
| 3/8 (9.52) | 7 | 3.05 | 124 | 51.155 | 18.905 | 30.915 | 48.04 | 68.503 |
| 7/16 (11.11) | 7 | 3.68 | 181 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 |
| 1/2 (12.70) | 7 | 4.19 | 234 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 |
| 1/2 (12.70) | 19 | 2.54 | 229 | ------ | 33.895 | 56.492 | 84.961 | 118.768 |
| 9/16 (14.29) | 19 | 2.87 | 289 | ------- | 42.881 | 71.616 | 107.202 | 149.905 |
| 5/8 (15.88) | 19 | 3.18 | 361 | ------- | 48.93 | 80.513 | 124.995 | 178.819 |
| 3/4 (19.05) | 19 | 3.81 | 524 | ------- | 71.172 | 116.643 | 181.487 | 259.331 |
Packing in plastic reel, paper reel, wooden drum, steel-wooden drum or as customer's requirement.
People's Cable Group Co.,Ltd was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
With the perfect quality and after sales service,our products are very popular in domestic market,whatever in civil using and the government projects.For oversea market,till now we have expanded our market to South America like Chile,Colombia,Bolivia,Brazil and so on,Euro-American market like U.S.A.Germany,Spain,U.K. And so on.Middle East,Africa,Southeast Asia,Mongolia and some other areas.
Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on.As a leading manufacturer in China, we have obtained ISO9001, ISO14001 and CCC certificates.
