US$ 0.3 - 2.7
MOQ: 50 Kilograms
Key Specifications
Get Latest Price
Brand Name:
RMJT
Place of Origin:
Henan, China
Model Number:
stay wire
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Tensile Galvanized Steel Strand Wire Mesh 3mm PriceUS$ 0.1 - 10MOQ: 1 Meter -
LME A Grade 99.99% Pure Copper WireUS$ 1.3 - 3MOQ: 1000 Meters
-
Insulated Enameled Copper Wire Multi Strands Litz Wire in High Frequency Electrical Cable Wire From ChinaUS$ 0.09 - 9.99MOQ: 1 Kilometer
-
High Quality and Cheap Price 16mm2 25mm2 35mm2 50mm2 70mm2 Bare Copper Stranded WireUS$ 1.7 - 3MOQ: 100 Meters
-
Copper Clad Aluminium Winding Wire Price Enamelled Aluminum WireUS$ 2.3 - 10.7MOQ: 100 Kilograms
Brand Name
RMJT
Place of Origin
Henan, China
Model Number
stay wire
Application
Construction
Standard
AISI, ASTM, BS, DIN, GB, JIS
Alloy Or Not
Non-alloy
Special Use
Cold Heading Steel
Steel Grade
Galvinized steel wire
Product Description

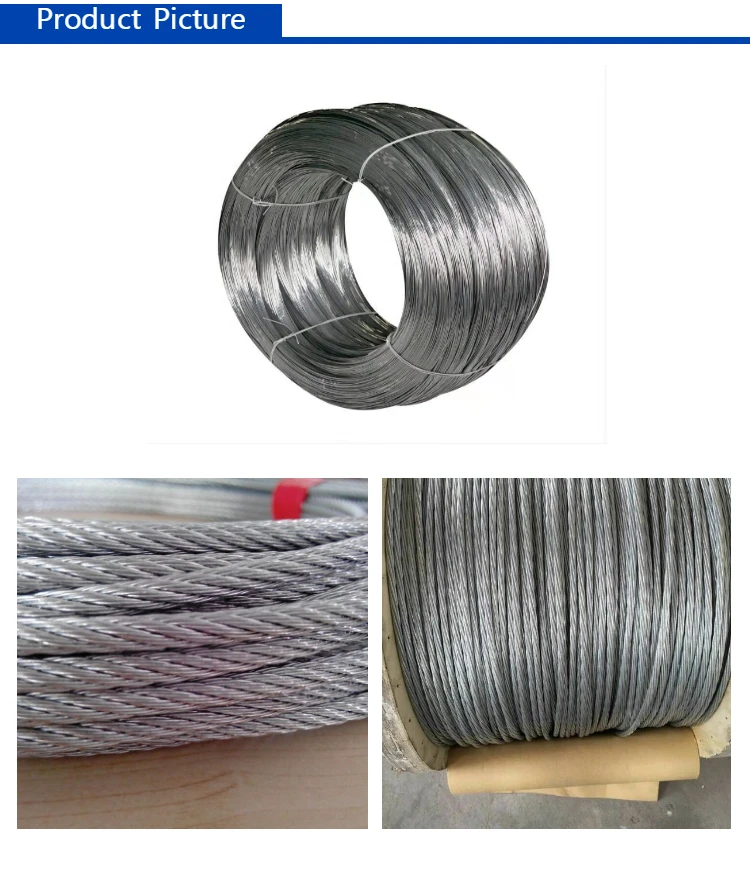

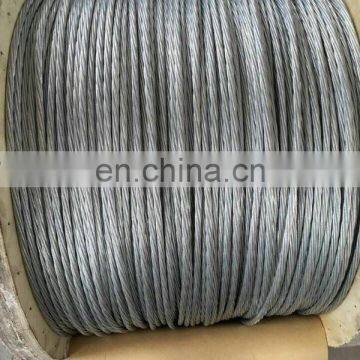

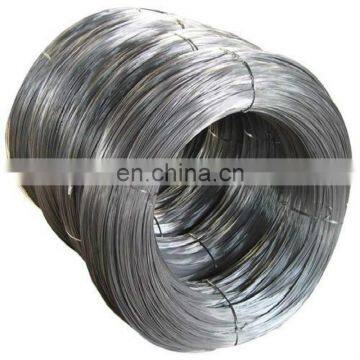

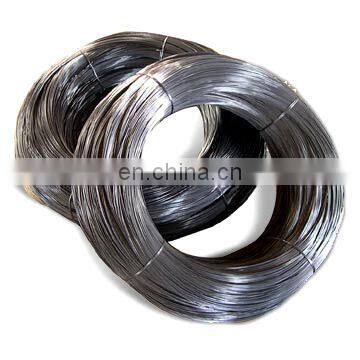

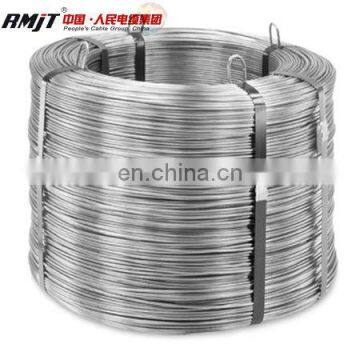

1.galvanized stainless steel cable / stay wire
1) BWG8-BWG30 (0.305mm-4.191mm)
2) Processing with low carbon steel wire, through drawing and electric galvanizing
3) Standard wire gauge from 8 BWG to 26BWG
2) Processing with low carbon steel wire, through drawing and electric galvanizing
3) Standard wire gauge from 8 BWG to 26BWG
2.Technical Information
* galvanized steel stay wire
1) Material: super carbon steel
1) Material: super carbon steel
2) Processing by drawing, hot-dipped galvanizing
3) Standard wire gauge from 8BWG to 30BWG
4) Thick zinc-coating layer
5) Super in corrosion resistance
6) Firm coating layer
7) Custom size available
3) Standard wire gauge from 8BWG to 30BWG
4) Thick zinc-coating layer
5) Super in corrosion resistance
6) Firm coating layer
7) Custom size available
* non galvanized steel wire
1) Material: super carbon steel
2) Processing by drawing, hot-dipped galvanizing
3) Standard wire gauge from 8BWG to 30BWG
4) Thick zinc-coating layer
5) Super in corrosion resistance
6) Firm coating layer
7) Custom size available
1) Material: super carbon steel
2) Processing by drawing, hot-dipped galvanizing
3) Standard wire gauge from 8BWG to 30BWG
4) Thick zinc-coating layer
5) Super in corrosion resistance
6) Firm coating layer
7) Custom size available
3. Usage of galvanized steel stay wire
Galvanized wire is used for weaving of wire mesh, stranded conductors in overhead power circuitry.
4. Standard
1) ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand
2) ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
3) BS183: Specification for General Purpose Galvanized Steel Wire Strand
4) BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
5) IEC 60888: Zinc-coated steel wires for stranded conductors
6) DIN 48200: Wires for stranded conductors
7) JIS G 3537: Zinc-coated steel wire strands
8) AS 1222.1: Steel conductors and stays-Bare overhead
2) ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
3) BS183: Specification for General Purpose Galvanized Steel Wire Strand
4) BS 50189: Conductors ofr overhead lines-Zinc coated steel wires
5) IEC 60888: Zinc-coated steel wires for stranded conductors
6) DIN 48200: Wires for stranded conductors
7) JIS G 3537: Zinc-coated steel wire strands
8) AS 1222.1: Steel conductors and stays-Bare overhead
GALVANIZED STEEL WIRE STAND ASTM A475 | ||||||||||||
Number of Wires / Dia. | Approx Strand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx Weight | |||||||
Inch | mm | KN | KN | KN | kg/km | |||||||
3/2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 | ||||||
3/3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 | ||||||
3/3.05 | 1/4 | 6.35 | - | - | - | 174 | ||||||
3/3.30 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 | ||||||
3/3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 | ||||||
3/4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 | ||||||
7/1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.14 | 49 | ||||||
7/1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 | ||||||
7/1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 | ||||||
7/1.65 | 3/16 | 4.76 | - | - | - | 118 | ||||||
7/1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 | ||||||
7/2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 | ||||||
7/2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 | ||||||
7/2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 | ||||||
7/2.77 | 5/16 | 7.94 | - | - | - | 335 | ||||||
7/3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 | ||||||
7/3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 | ||||||
7/4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 | ||||||
7/4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 | ||||||
7/5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 | ||||||
19/2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 | ||||||
19/2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 | ||||||
19/3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 | ||||||
19/3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 | ||||||
19/4.50 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 | ||||||
19/5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 | ||||||
37/3.63 | 1 | 25.4 | 205.508 | 319.827 | 456.832 | 3061 | ||||||
37/4.09 | 11/8 | 28.58 | 262 | 407.457 | 581.827 | 4006 | ||||||
37/4.55 | 11/4 | 31.75 | 324.72 | 505.318 | 721.502 | 4833 | ||||||
galvanized rope stainless steel wire cable | ||||||
GAUGE NO. | SWG(MM) | BWG(MM) | METRIC(MM) | |||
8 | 4.05 | 4.19 | 4.00 | |||
9 | 3.66 | 3.76 | 4.00 | |||
10 | 3.25 | 3.40 | 3.50 | |||
11 | 2.95 | 3.05 | 3.00 | |||
12 | 2.64 | 2.77 | 2.80 | |||
13 | 2.34 | 2.41 | 2.50 | |||
14 | 2.03 | 2.11 | 2.50 | |||
15 | 1.83 | 1.83 | 1.80 | |||
16 | 1.63 | 1.65 | 1.65 | |||
17 | 1.42 | 1.47 | 1.40 | |||
18 | 1.22 | 1.25 | 1.20 | |||
19 | 1.02 | 1.07 | 1.00 | |||
20 | 0.91 | 0.84 | 0.9 | |||
21 | 0.81 | 0.81 | 0.8 | |||
22 | 0.71 | 0.71 | 0.7 | |||
Notice
If you have other models or standards, please click below to Contact Us. Thank you

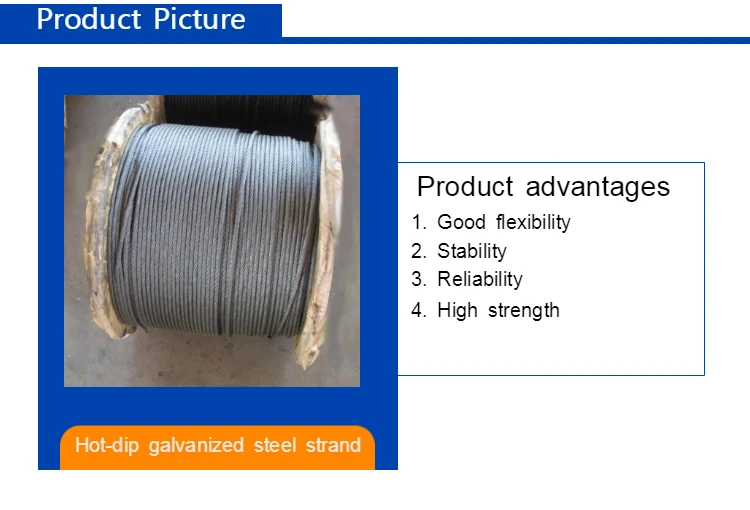

Galvanized steel strands are often used for load-bearing cables, pull wires, reinforced cores, etc., and can also be used as
ground wires for overhead transmission, blocking cables on both sides of highways, or structural cables in building structures.
Prestressed steel strands are commonly used in bridges, construction, water conservancy, energy and geotechnical engineering.
Unbonded prestressed steel strands are often used in floor slabs, foundation works, etc.
ground wires for overhead transmission, blocking cables on both sides of highways, or structural cables in building structures.
Prestressed steel strands are commonly used in bridges, construction, water conservancy, energy and geotechnical engineering.
Unbonded prestressed steel strands are often used in floor slabs, foundation works, etc.
