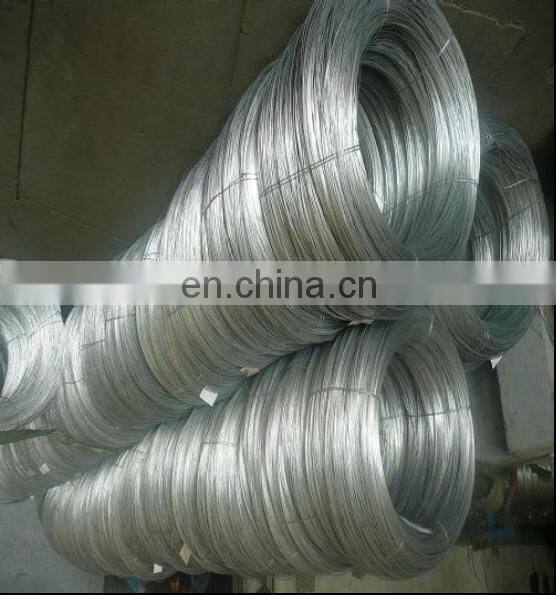

Help CenterHigh Tensile Galvanized Steel Strand Wire Mesh 3mm Price
Related Products
-
LME A Grade 99.99% Pure Copper WireUS$ 1.3 - 3MOQ: 1000 Meters -
Insulated Enameled Copper Wire Multi Strands Litz Wire in High Frequency Electrical Cable Wire From ChinaUS$ 0.09 - 9.99MOQ: 1 Kilometer
-
High Quality and Cheap Price 16mm2 25mm2 35mm2 50mm2 70mm2 Bare Copper Stranded WireUS$ 1.7 - 3MOQ: 100 Meters
-
Copper Clad Aluminium Winding Wire Price Enamelled Aluminum WireUS$ 2.3 - 10.7MOQ: 100 Kilograms
-
Manufacturer Copper Welding Super Enamelled Aluminium WireUS$ 2.7 - 7.9MOQ: 10 Kilograms
Technical Data:

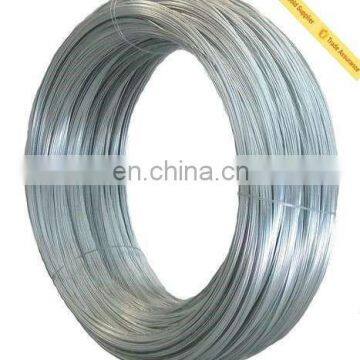

1.Electro Galvanized Iron Wire,Zinc Coating: 10g/m2-20g/m2
2.Hot Dipped Galvanized Iron Wire,Zinc Coating: 50g/m2-370g/m2
3.The Standard Wire Gauge from BWG8-BWG33
4.Tensile Strength: 45kg/mm2-55kg/mm2
5.Firmed Coating Layer
6.The Single roll wire without any inter-cuts or breaks
7.Customer's size is available.
8.Coils in 0.1kgs-800kgs are available
electro galvanized wire advantages:
Thick zinc coating, good corrosion resistance, excellent flexibility and softness
Related products:
(0)aluminium alloy conductor steel reinforced (AACSR)(1) all aluminium conductor (AAC)
(2) all aluminimum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminimum conductor aluminimum clad steel reinforced(ACSR/AW)
(6)aluminimum conductor aluminimum alloy reinforced(ACAR)
Description
The proportions of aluminum alloy and steel can be varied to obtain the relation between current carrying capacity and mechanical strength best suited to each application.
Core wire for AACSR is available with Class A, B or C-galvanized; "aluminized" (AZ): or aluminum clad (AW).
Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
ACSR

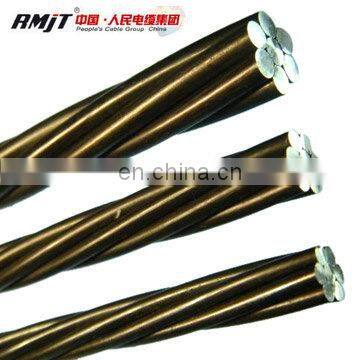

ACSR is a composite conductor consisting of seven or more aluminium and galvanized steel wires built up in
concentrilaystranded layers. The centre core is of galvanized steel and outer layer or layers of aluminium. The steel
core may be single wire or stranded wires depending on the size.with multiple center steel wire and correspondingly
larger quantities of aluminium conductors.When required, the interstices of the inner layers can be filled by grease
compound which is more suitable for the operating conditions of the conductor.ACSR is widely used in overheadEelectric power transmission and distribution lines with various voltage levels.
Standard:
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, BS EN
50182: 2001,ASTM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.
ACSR or ACSR cable or ACSR conductor used for Overhead electrical distribution and transmission lines for
distributing power.
(AAAC) Conductor as per ASTM-B-399-1992
(AAAC) Conductor as per BS-3242-1970
(AAAC) Conductor IS: 398-IV-1994
(ACSR) as per ASTM-B-233-1992
(AAC) as per BS-215-1-1970
(AAC) as per IS-398-1: 1976
(AAC) as per ASTM-B-231-1990
(ACSR) as per IS: 398-II: 1976 & IS: 398-V: 1992
(ACSR) BS-215-II-1970
(AACSR) as per IEC-1089-1191
AAC(All aluminum conductor) are suited for overhead power line
ACSR bare conductor meets or exceeds the following ASTM specifications
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-clad Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AW)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

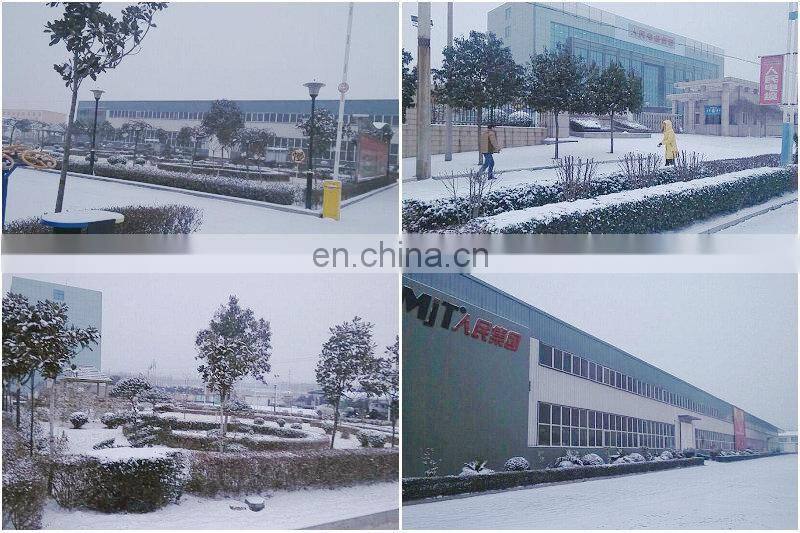

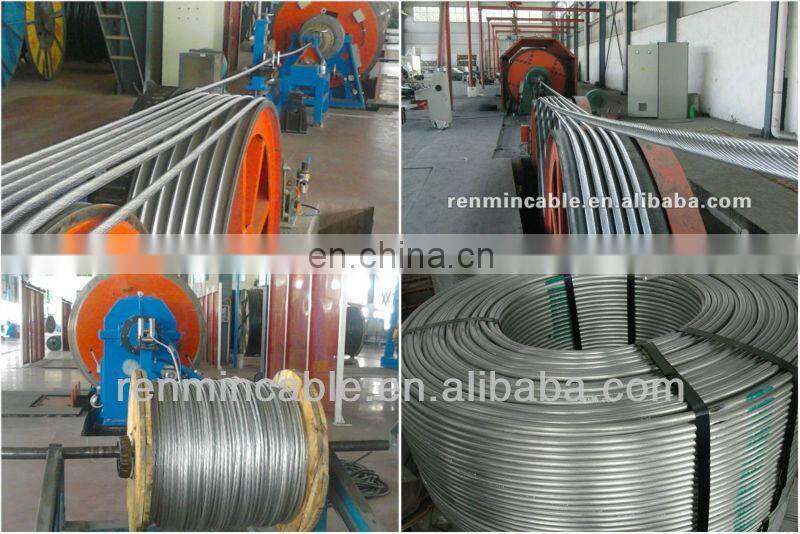

Our factory People`s Cable Group ,.Ltd., is a China non-aera group company,providing professional manufacturing, R&D
and sale of cables and wires.Now it has five core subsidiaries, with more than 80 cooperative enterprise and over 100 sales
outlets in our country.Our products have been exported to more than ten countries,such as Southeast Asia, the Middle East
Africa,South America.
Specialized in manufactured high, medium and low voltage XLPE ,fireresisitant cable,flameretardant cable,control cable,
rubber cable, Insulated aerial cables,shielded cable,bare aluminum conductor ACSR,AAC AAAC ACAR and ABC cable.
PVCinsulated wire .Detailed informations are as follow:
1,PVC insulated wire
2,PVC/XLPE insulated power cable
2,Rubber jacketed cable
3,Contral cable(KVVP KVV KVVRP )
4,ABC cable
5,Bare conductor(AAC AAAC ACSR/AW ACSR/RE GSW ACS AACSR ACAR)
You may ask:
1,About min order,price,delivery time ?
Dear, i would like to give you my answer,but could you give me your products specification first and required quantity?then i can offer you quotation
2,When can i get the price?
Dear,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell
us in your e-mail so that we will regard your inquiry priority.
3,Do you have your own factory?
Yes,dear!we have our own factory, and many customers have visited it ,welcome to my factory!
4,How can i get the sample to check your quality?
Dear,after price confirmation, you can require for samples to check our quality.Sample is free,but the freight charge should
be paid.
5,What about the leadtime for mass production?
Dear,honestly, it depends on the order quantity and the season you place the order. The best recordwe keep is delivering 10
kilometers cable within a week.
