Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable

Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable thumbnail-1
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable thumbnail-2
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable thumbnail-3
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable thumbnail-4
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable thumbnail-5
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable thumbnail-6
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable thumbnail-7
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable photo-1

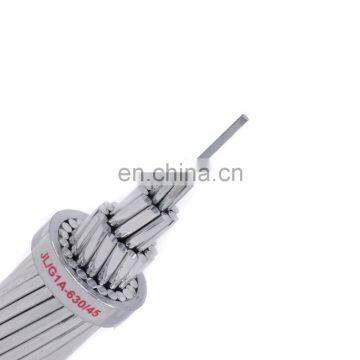

Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable photo-2
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable photo-3

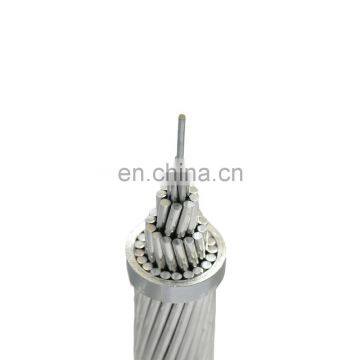

Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable photo-4
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable photo-5
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable photo-6

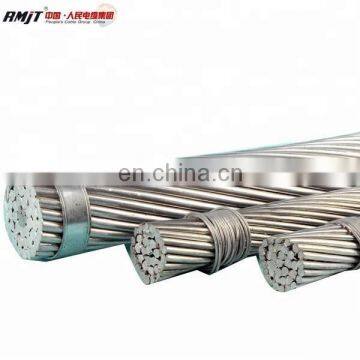

Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable photo-7
US$ 0.1 - 1.7 MOQ: 500 Meters
Key Specifications
Get Latest Price
Brand Name:
RMJT
Place of Origin:
Henan, China
Model Number:
ACSR DOVE cable
Contact Supplier Request Quote Chat Now
People\'s Cable Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name RMJT
Place of Origin Henan, China
Model Number ACSR DOVE cable
Type Medium Voltage
Application Overhead
Conductor Material Aluminum

Application



ACSR dove cable are suitable for use in all practical spans on wood poles, transmission towers,and other structures. Application range from extra high voltage(EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.

ACSR(Aluminum Conductor Steel Reinforced) has a long service record because of its economy ,dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel cores enable higher tensions ,less sag,and longer spans than any alternative.



Property

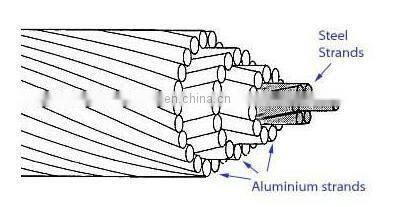

                                                                                ACSR DOVE CABLE drawing picture

 Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable

Aluminum 1350 wires and the steel cores are concentrically stranded and wrapped helically around a central wire. The additional corrosion protection is available through the application of grease to the cores or infusion of the complete cable with grease.



Standard:



ASTM B230,B231,B498 Standard



Code Name

Size

No./Dia.of Stranding Wires

 Approx. Overall Dia.

Approx. Weight

Code Name

Size

No./Dia.of Stranding Wires

 Approx. Overall Dia.

Approx. Weight

AWG or MCM

Aluminum

Steel

AWG or MCM

Aluminum

Steel

No./mm

No./mm

mm

kg/km

No./mm

No./mm

mm

kg/km

Turkey

6

6/1.68

1/1.68

5.04

54

Starling

715.5

26/4.21

7/3.28

26.68

1466

Swan

4

6/2.12

1/2.12

6.36

85

Redwing

715.5

30/3.92

19/2.35

27.43

1653

Swanate

4

7/1.96

1/2.61

6.53

100

Tern

795.0

45/3.38

7/2.25

27.03

1333

Sparrow

2

6/2.67

1/2.67

8.01

136

Condor

795.0

54/3.08

7/3.08

27.72

1524

Sparate

2

7/2.47

1/3.30

8.24

159

Cuckoo

795.0

24/4.62

7/3.08

27.74

1524

Robin

1

6/3.00

1/3.00

9.00

171

Drake

795.0

26/4.44

7/3.45

28.11

1628

Raven

1/0

6/3.37

1/3.37

10.11

216

Coot

795.0

36/3.77

1/3.77

26.41

1198

Quail

2/0

6/3.78

1/3.78

11.34

273

Mallard

795.0

30/4.14

19/2.48

28.96

1838

Pigeon

3/0

6/4.25

1/4.25

12.75

343

Ruddy

900.0

45/3.59

7/2.40

28.73

1510

Penguin

4/0

6/4.77

1/4.77

14.31

433

Canary

900.0

54/3.28

7/3.28

29.52

1724

Waxwing

266.8

18/3.09

1/3.09

15.45

431

Rail

954.0

45/3.70

7/2.47

29.61

1601

Partridge

266.8

26/2.57

7/2.00

16.28

546

Catbird

954.0

36/4.14

1/4.14

28.95

1438

Ostrich

300.0

26/2.73

7/2.12

17.28

614

Cardinal

954.0

54/3.38

7/3.38

30.42

1829

Merlin

336.4

18/3.47

1/3.47

17.5

544

Ortlan

1033.5

45/3.85

7/2.57

30.81

1734

Linnet

336.4

26/2.89

7/2.25

18.31

689

Tanger

1033.5

36/4.30

1/4.30

30.12

1556

Oriole

336.4

30/2.69

7/2.69

18.83

784

Curlew

1033.5

54/3.52

7/3.52

31.68

1981

Chickadee

397.5

18/3.77

1/3.77

18.85

642

Bluejay

1113.0

45/4.00

7/2.66

31.98

1868

Brant

397.5

24/3.27

7/2.18

19.61

762

Finch

1113.0

54/3.65

19/2.19

32.85

2130

Ibis

397.5

26/3.14

7/2.44

19.88

814

Bunting

1192.5

45/4.14

7/2.76

33.12

2001

Lark

397.5

30/2.92

7/2.92

20.44

927

Grackle

1192.5

54/3.77

19/2.27

33.97

2282

Pelican

477.0

18/4.14

1/4.14

20.70

771

Bittern

1272.0

45/4.27

7/2.85

34.17

2134

Flicker

477.0

24/3.58

7/2.39

21.49

915

Pheasant

1272.0

54/3.90

19/2.34

35.10

2433

Hawk

477.0

26/3.44

7/2.67

21.79

978

Skylark

1272.0

36/4.78

1/4.78

33.42

1917

Hen

477.0

30/3.20

7/3.20

22.40

1112

Dipper

1351.5

45/4.40

7/2.92

35.16

2266

Osprey

556.5

18/4.47

1/4.47

22.35

899

Martin

1351.5

54/4.02

19/2.41

36.17

2585

Parakeet

556.5

24/3.87

7/2.58

23.22

1067

Bobolink

1431.0

45/4.53

7/3.02

36.24

2402

Dove

556.5

26/3.72

7/2.89

23.55

1140

Plover

1431.0

54/4.14

19/2.48

37.24

2738

Eagle

556.5

30/3.46

7/3.46

24.21

1298

Nuthatch

1510.5

45/4.65

7/3.10

37.20

2534

Peacock

605.0

24/4.03

7/2.69

24.20

1160

Parrot

1510.5

54/4.25

19/2.55

38.25

2890

Squab

605.0

26/3.87

7/3.01

24.51

1240

Lapwing

1590.0

45/4.77

7/3.18

38.16

2667

WoodDuck

605.0

30/3.61

7/3.61

25.25

1411

Falcon

1590.0

54/4.36

19/2.62

39.26

3042

Teal

605.0

30/3.61

19/2.16

25.24

1399

High Strength Stranding

Kingbird

636.0

18/4.78

1/4.78

23.88

1028

Grouse

80

8/2.54

1/4.24

9.32

222

Rook

636.0

24/4.14

7/2.76

24.84

1219

Petrel

101.8

12/2.34

7/2.34

11.71

378

Grosbeak

636.0

26/3.97

7/3.09

25.15

1302

Minorca

110.8

12/2.44

7/2.44

12.22

412

Scoter

636.0

30/3.70

7/3.70

25.88

1484

Leghorn

134.6

12/2.69

7/2.69

13.46

500

Egret

636.0

30/3.70

19/2.22

25.90

1470

Guinea

159

12/2.92

7/2.92

14.63

590

Swift

636.0

36/3.38

1/3.38

23.62

958

Dotterel

176.9

12/3.08

7/3.08

15.42

657

Flamingo

666.6

24/4.23

7/2.82

25.40

1278

Dorking

190.8

12/3.20

7/3.20

16.03

709

Gannet

666.6

26/4.07

7/3.16

25.76

1365

Brahma

203.2

16/2.86

19/2.48

18.14

1007

Stilt

715.5

24/4.39

7/2.92

26.31

1372

Cochin

211.3

12/3.37

7/3.37

 Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable

Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable

Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable

Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC Cable
