Aluminum Stranded Steel Core ACSR Wire Hidden
- Qingdao
- T/T Credit Card
You May Like
-
All Aluminum Alloy Conductor Power Transmission Used AAAC Conductor
-
Low Voltage 11kv Overhead Transmission Line Thermo-resistant AACSR Cable
-
Factory Price High Quality Aaac Bare Conductor Aluminum Alloy Wire Bare Overhead Cable
-
11KV Overhead Aluminum Power Cable Conductor Factory
-
10 Gauge Wire Hot Dipped Wire Galvanized Steel
-
Oak 100mm Aluminum Alloy Bare AAC Conductors
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | ACSR wire | Type | High Voltage | |
| Conductor Material | Aluminum |
Product Description

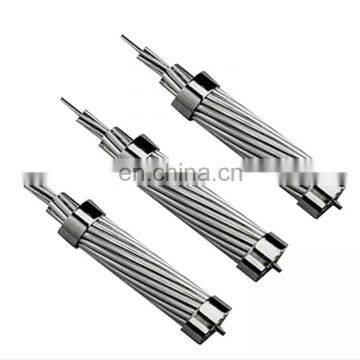

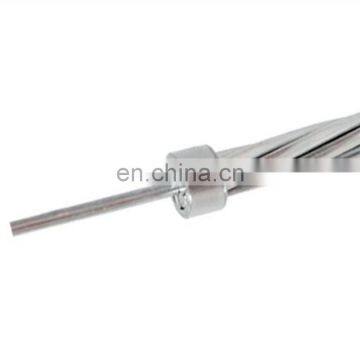

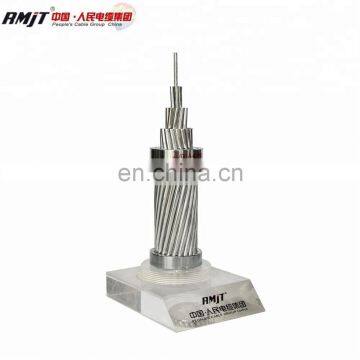

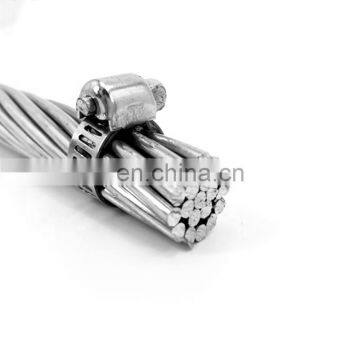

Bare Aluminum Stranded Steel Core ACSR wire
Application
ACSR Wire has the established reputation for economy and dependability in power transmission lines. Also used for primary and secondary distribution lines. Wide range of steel content from 7% to 40% can be achieved by different stranding, to meet desired strength. Electrical losses by corona effect are greatly reduced, due to the larger diameter size of this design. Economical transmission and distribution of electrical energy can be achieved by ACSR wire, at very high voltages and distances.
Construction

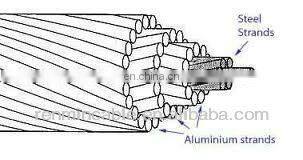

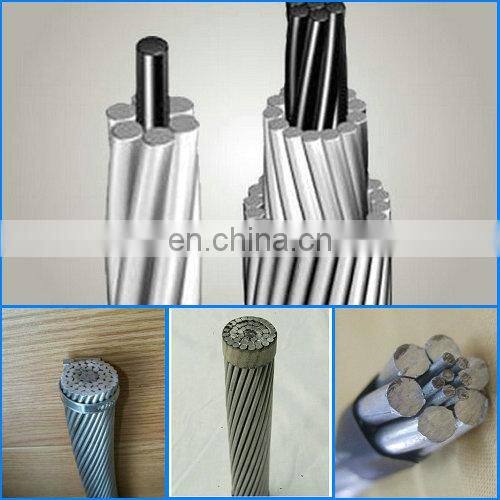

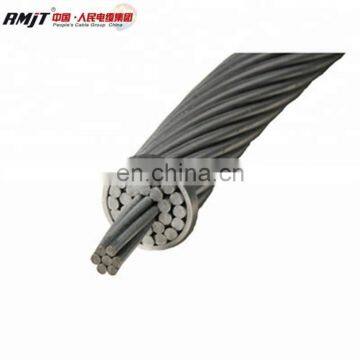

ACSR Wire is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor, around which is stranded one or more layers of EC Grade Aluminium wires. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers arepossible.
The data sheets below show part spec of Ametican standards acsr wire. ASTM B232
Code name | Aluminum | Stranding& | Approx | Approx | Breaking | DC | ||
Area | Wire Diameter | Overall | Weight | Load | Resistance | |||
| Al | Steel | Diameter |
|
|
| ||
AWG | mm 2 | No./mm | No./mm | mm | Kg/km | KN | Ohm/km | |
Turkey | 6 | 13.3 | 6/1.68 | 1/1.68 | 5.04 | 53.75 | 5303 | 2.157 |
Swan | 4 | 21.18 | 6/2.12 | 1/2.12 | 6.36 | 85.57 | 8302 | 1335 |
Swanate | 4 | 21.12 | 7/1.96 | 1/2.61 | 6.53 | 99.56 | 10642 | 1352 |
Sparrow | 2 | 33.59 | 6/2.67 | 1/2.67 | 8.01 | 135.7 | 12653 | 0.854 |
Raven | 1/0 | 53.52 | 6/3.37 | 1/3.37 | 10.1 | 216.2 | 19455 | 0.536 |
Quail | 2/0 | 67.32 | 6/3.78 | 1/3.78 | 11.3 | 272 | 23529 | 0.426 |
Pigeon | 3/0 | 85.14 | 6/4.25 | 1/4.25 | 12.8 | 344 | 29417 | 0.337 |
Penguin | 4/0 | 107.2 | 6/4.77 | 1/4.77 | 14.3 | 433.4 | 37055 | 0.268 |
Waxwing | 266800 | 135 | 18/3.09 | 1/3.09 | 15.5 | 430.5 | 30519 | 0.213 |
Merlin | 336400 | 170.2 | 18/3.47 | 1/3.47 | 17.4 | 542.9 | 38487 | 0.169 |
Linnet | 336400 | 170.6 | 26/2.89 | 7/2.25 | 18.3 | 689.9 | 62918 | 0.169 |
Hawk | 477000 | 241.6 | 26/3.44 | 7/2.67 | 21.8 | 975.5 | 86011 | 0.12 |
Dove | 556500 | 282.6 | 26/3.72 | 7/2.89 | 23.6 | 1142 | 100838 | 0.103 |
Peacock | 605000 | 306.2 | 24/4.03 | 7/2.69 | 24.2 | 1159 | 95861 | 0.0948 |
ACSR WIRE
FAQ:
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
