Help CenterLow Voltage 11kv Overhead Transmission Line Thermo-resistant AACSR Cable
Related Products
-
Factory Price High Quality Aaac Bare Conductor Aluminum Alloy Wire Bare Overhead CableUS$ 0.2 - 1MOQ: 2000 Meters -
11KV Overhead Aluminum Power Cable Conductor FactoryUS$ 0.33 - 0.35MOQ: 1000 Meters
-
10 Gauge Wire Hot Dipped Wire Galvanized SteelUS$ 700 - 1,000MOQ: 2 Tons
-
Oak 100mm Aluminum Alloy Bare AAC ConductorsUS$ 0.1 - 9.9MOQ: 5000 Meters
-
Bare AAAC 300 Sqmm Aluminum Alloy Conductor With Heat-ResistantUS$ 1 - 9.9MOQ: 1000 Meters
(1)AACSR is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be single wire or stranded depending on the size.
(2)The proportions of aluminum alloy and steel can be varied to obtain the relation between current carrying capacity and mechanical strength best suited to each application.
(3)Core wire for AACSR is available with Class A, B or C-galvanized; "aluminized" (AZ): or aluminum clad (AW).
(4)Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.
Specification
(1)Offer optimal strength for line design.
(2)Improved strength to weight ratio
(3)Ideal for extra long span with heavy load
(4)Excellent resistance to corrosion
Products range
1)AAAC(All Aluminum Alloy Conductors)
2)ACSR(Aluminum Conductor Steel Reinforced)
3)AAC(All Aluminum Conductors)
4)AACSR(Aluminum Alloy Conductors Steel Reinforced)
5)ACSR/AW(Aluminum Conductor Aluminum Clad Steel Reinforced
6)ACAR (Aluminum conductor aluminum alloy reinforced)
7)ACSR/AW (Aluminum conductor aluminum clad steel reinforced)
8)TACSR (Thermal-resistant Aluminum-alloy Conductor, Steel Reinforced)
9)ACSR/TW (Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductor, Steel-Reinforced)
10)ACSS (Concentric-Lay-Stranded Aluminum Conductors, Coated steel Supported)
11)ACSS/TW (Aluminum Conductors Steel Supported-Trapezoidal)
Aluminium Clad Steel Wire
Galvanized Steel Wire
Copper Stranded Conductors for Electric Railway /Catenary Wire
Trolley Wire for Electric Railway/ Contact wire
ABC Cable
some technology data about fire-resistance AACSR
Nominal section Area (mm2) |
NO./DIA. (mm) |
Calculated Area (mm2) |
Overall Dia.
(mm) | 20℃ D.C. Resistance(20℃) Ω/km |
Rated Breaking Load KN | Unit Weight
kg/km |
ReferenceCurrent at 40℃(A) | ||||||||
aluminum alloy |
steel |
aluminum alloy |
steel |
total |
JNRLH58/G1A (NRLH58GJ) |
JNRLH58 /G2A |
JNRLH58 /G3A | 90℃ | 110℃ | 130℃ | 150℃ | ||||
240/30 | 24/3.60 | 7/2.40 | 244.29 | 31.67 | 275.96 | 21.6 | 0.1242 | 76.41 | 80.85 | 84.96 | 920.7 | 613 | 756 | 882 | 967 |
240/40 | 26/3.42 | 7/2.66 | 238.84 | 38.9 | 277.74 | 21.7 | 0.1271 | 83.75 | 89.20 | 94.26 | 962.8 | 610 | 746 | 873 | 956 |
240/55 | 30/3.20 | 7/3.20 | 241.27 | 56.3 | 297.57 | 22.4 | 0.1260 | 101.74 | 109.62 | 117.50 | 1105.8 | 612 | 758 | 885 | 969 |
250/25 | 22/3.80 | 7/2.11 | 250 | 24.6 | 275 | 21.6 | 0.1216 | 70.03 | 73.48 | 76.92 | 880.6 | 630 | 769 | 882 | 980 |
Related products

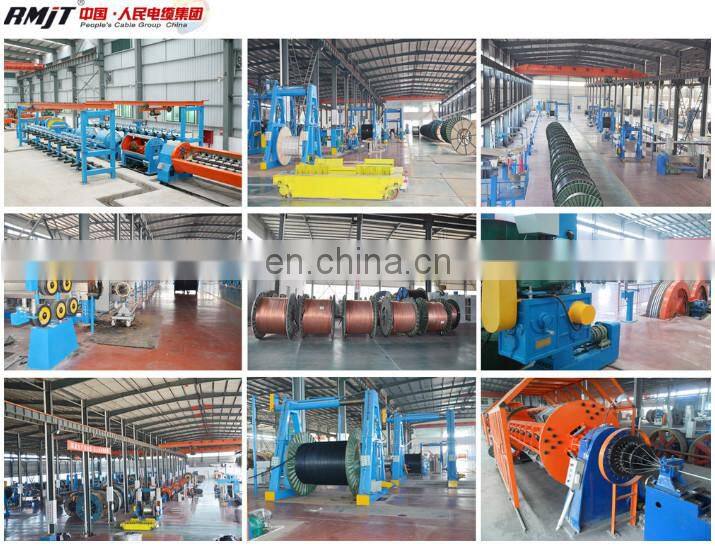

Our factory People`s Cable Group ,.Ltd., is a China non-aera group company,providing professional
manufacturing, R&D and sale of cables and wires.Now it has five Core subsidiaries, with more than 80
cooperative nterprise and over 100 sales outlets in our country.Our products have been exported to more
than ten countries,such as Southeast Asia, the Middle East ,Africa,South America.
Specialized in manufactured high, medium and low voltage XLPE ,fire-resisitant cable,flame-retardant cable,control cable,rubber cable, Insulated aerial cables,shielded cable,bare aluminum conductor
ACSR,AAC AAAC ACAR and ABC cable.PVCinsulated wire .Detailed informations are as follow:
1,PVC insulated wire
2,PVC/XLPE insulated power cable
2,Rubber jacketed cable
3,Contral cable(KVVP KVV KVVRP )
4,ABC cable
5,Bare conductor(AAC AAAC ACSR/AW ACSR/RE GSW ACS AACSR ACAR)
1,About min order,price,delivery time ?
Dear, i would like to give you my answer,but could you give me your products specification first and required
quantity?then i can offer you quotation
2,When can i get the price?
Dear,We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
3,Do you have your own factory?
Yes,dear!we have our own factory, and many customers have visited it ,welcome to my factory!
4,How can i get the sample to check your quality?
Dear,after price confirmation, you can require for samples to check our quality.Sample is free,but the freight
charge should be paid.
