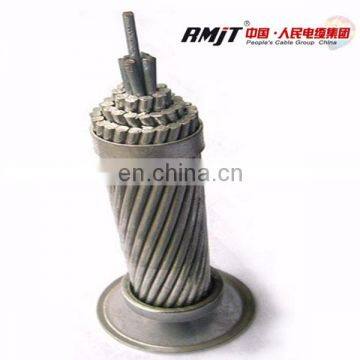

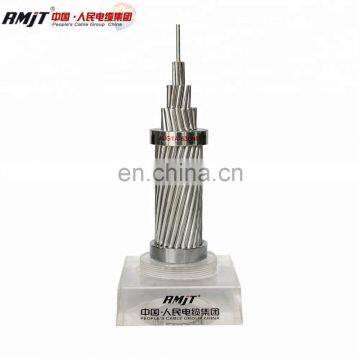

240/40 ACSR Aluminum Conductor AAC Conductors Bare Conductor
US$ 1 - 5
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
RMJT
Place of Origin:
Henan, China
Model Number:
240/40 acsr
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bare Overhea Electrical Wire All Aluminum Alloy Stranded Conductor Steel Reinforce ACSR AAAC CableUS$ 0.1 - 1.7MOQ: 500 Meters -
Aluminum Stranded Steel Core ACSR Wire HiddenUS$ 0.1 - 5MOQ: 3000 Meters
-
All Aluminum Alloy Conductor Power Transmission Used AAAC ConductorUS$ 0.1 - 5MOQ: 100 Meters
-
Low Voltage 11kv Overhead Transmission Line Thermo-resistant AACSR CableUS$ 0.1 - 15MOQ: 1 Meter
-
Factory Price High Quality Aaac Bare Conductor Aluminum Alloy Wire Bare Overhead CableUS$ 0.2 - 1MOQ: 2000 Meters
Brand Name
RMJT
Place of Origin
Henan, China
Model Number
240/40 acsr
Type
High Voltage
Application
Overhead
Conductor Material
Aluminum
1. Applications
240/40 acsr is Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
2. Construction

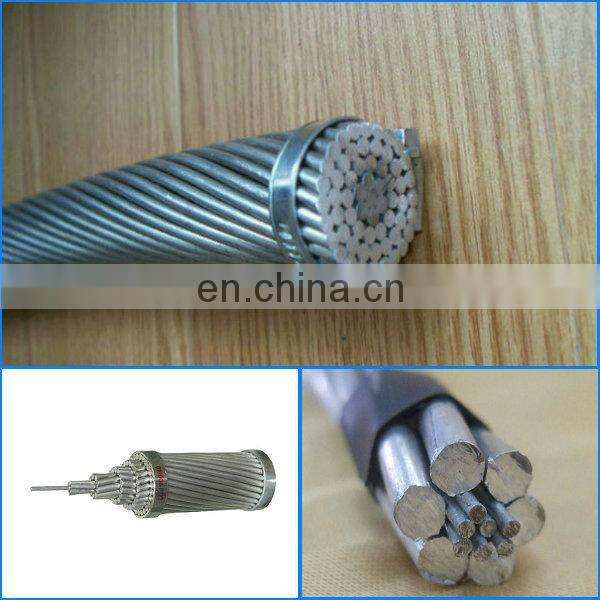

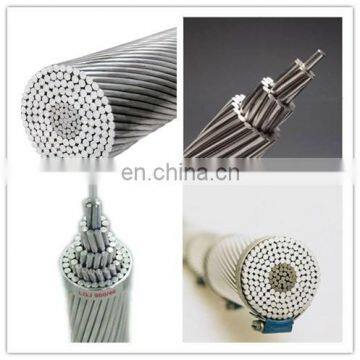

240/40 ACSR is composed by concentric-lay-stranded galvanized steel wires and aluminium wires.
3. Advantage
a. Excellent electric and mechanical characteristics.
b. Good conductivity; Resistance to chemical corrosion, heat-aging, and environment stress.
c. Unit volume light; Simple in structure.
d. Conveniently to use.
4.Characters
a. Under the same weight, the ACSR aluminium conductor is lower than the copper conductor;
b. In order to prevent corrosion, the anti-corrision grease can be fully or partially applied to ACSR;
c. ACSR offers optimal strength for line design.Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
240/40 ACSR Specification
| Area | Stranding and wire diameter | Overall Diameter | Linear Mass | ||||||
| Nominal | Actual | Aluminium | Steel | Total | |||||
| Alu/steel mm² | Alu mm² | Steel mm² | Total mm² | Aluminium mm | Steel mm | mm | kg/km | kg/km | kg/km |
| 16/2.5 | 15.3 | 2.5 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 42 | 20 | 62 |
| 25/4.0 | 23.8 | 4.0 | 27.8 | 6/2.25 | 1/2.25 | 6.8 | 65 | 32 | 97 |
| 35/6.0 | 34.3 | 5.7 | 40.0 | 6/2.70 | 1/2.70 | 8.1 | 94 | 46 | 140 |
| 44/32.0 | 44.0 | 31.7 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 122 | 250 | 372 |
| 50/8.0 | 48.3 | 8.0 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 132 | 64 | 196 |
| 50/30 | 51.2 | 29.8 | 81.0 | 12/2.33 | 7/2.33 | 11.7 | 141 | 237 | 378 |
| 70/12.0 | 69.9 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 193 | 91 | 284 |
| 95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 260 | 123 | 383 |
| 95/55 | 96.5 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16.0 | 266 | 446 | 712 |
| 105/75 | 105.7 | 75.5 | 181.5 | 14/3.10 | 19/2.25 | 17.5 | 292 | 599 | 891 |
| 120/20 | 121.6 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 336 | 158 | 494 |
| 120/70 | 122.0 | 71.3 | 193.3 | 12/3.60 | 7/3.60 | 18 | 337 | 564 | 901 |
| 125/30 | 127.9 | 29.8 | 157.7 | 30/2.33 | 7/2.33 | 16.3 | 353 | 238 | 591 |
| 150/25 | 148.9 | 24.2 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 411 | 194 | 605 |
| 170/40 | 171.8 | 40.1 | 211.9 | 30/2.70 | 7/2.70 | 18.9 | 475 | 319 | 794 |
| 185/30 | 183.8 | 29.8 | 213.6 | 26/3.00 | 7/2.33 | 19.0 | 507 | 239 | 746 |
| 210/35 | 209.1 | 34.1 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 577 | 273 | 850 |
| 210/50 | 212.1 | 49.5 | 261.6 | 30/3.00 | 7/3.00 | 21.0 | 587 | 394 | 981 |
| 230/30 | 230.9 | 29.8 | 260.7 | 24/3.50 | 7/2.33 | 21.0 | 638 | 239 | 877 |
| 240/40 | 243.0 | 39.5 | 282.5 | 26/3.45 | 7/2.68 | 21.9 | 671 | 316 | 987 |
| 265/35 | 263.7 | 34.1 | 297.8 | 24/3.74 | 7/2.49 | 22.4 | 728 | 274 | 1002 |
| 300/50 | 304.3 | 49.5 | 353.7 | 26/3.86 | 7/3.00 | 24.5 | 840 | 396 | 1236 |
| 305/40 | 304.6 | 39.5 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 843 | 317 | 1160 |
| 340/30 | 339.3 | 29.8 | 369.1 | 48/3.00 | 7/2.33 | 25.0 | 938 | 242 | 1180 |
| 380/50 | 382.0 | 49.5 | 431.5 | 54/3.00 | 7/3.00 | 27.0 | 1056 | 397 | 1453 |
| 385/35 | 386.0 | 34.1 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1067 | 277 | 1344 |
| 435/55 | 434.3 | 56.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1203 | 450 | 1653 |
| 450/40 | 448.7 | 39.5 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1241 | 320 | 1561 |
| 490/65 | 490.3 | 63.6 | 553.9 | 54/3.40 | 7/3.40 | 30.6 | 1356 | 510 | 1866 |
| 495/35 | 494.1 | 34.1 | 528.2 | 45/3.74 | 7/2.49 | 29.9 | 1363 | 283 | 1646 |
| 510/45 | 510.2 | 45.3 | 555.5 | 48/3.68 | 7/2.87 | 30.7 | 1413 | 365 | 1778 |
| 550/70 | 550.0 | 71.3 | 621.3 | 54/3.60 | 7/3.60 | 32.4 | 1520 | 572 | 2092 |
| 560/50 | 561.7 | 49.5 | 611.2 | 48/3.86 | 7/3.00 | 32.2 | 1553 | 401 | 1954 |
| 570/40 | 565.5 | 39.5 | 610.3 | 45/4.00 | 7/2.68 | 32.2 | 1563 | 325 | 1888 |
| 650/45 | 698.8 | 45.3 | 653.49 | 45/4.30 | 7/2.87 | 34.4 | 1791 | 372 | 2163 |
| 680/85 | 678.8 | 86.0 | 764.8 | 54/4.00 | 19/2.40 | 36.0 | 1866 | 702 | 2570 |
| 1045/45 | 1045.58 | 45.3 | 1090.9 | 72/4.30 | 7/2.87 | 43.0 | 2879 | 370 | 3249 |
