Hard-drawn Aluminum Conductor Steel Reinforced Overhead ACSR Bare Conductor SCA Conductor
US$ 0.2 - 32.5
/ Meter
10000 Meters(Min. Order)
- Qingdao Tianjin Shanghai
- T/T Credit Card
You May Like
-
ACSR 720/50 Aluminum Conductor Steel-reinforced Cable
-
ASTM 795 MCM AAAC Bare Aluminum Stranded AAC Wire ACSR Conductor Cable
-
Overhead Aac, Aaac, Acsr Conductor Wire Cable Standard ASTMB 231, BS 215 Part1, IEC 61089, DIN 48201
-
ACSR Bare Conductor Aluminum Steel Reinforced Electrical Cable
-
Bare Aluminum Cable All Aluminum Alloy Conductor ASTM B399
-
ACSR Martin / ACSR Conductor 1351.5mcm
Product Details
| Brand Name | RMjT | Place of Origin | China | |
| Model Number | ACSR Bare Conductor | Type | High Voltage | |
| Application | Overhead | |||
| Conductor Material | Aluminum |
Product Description
Product Description
1. Brief description:

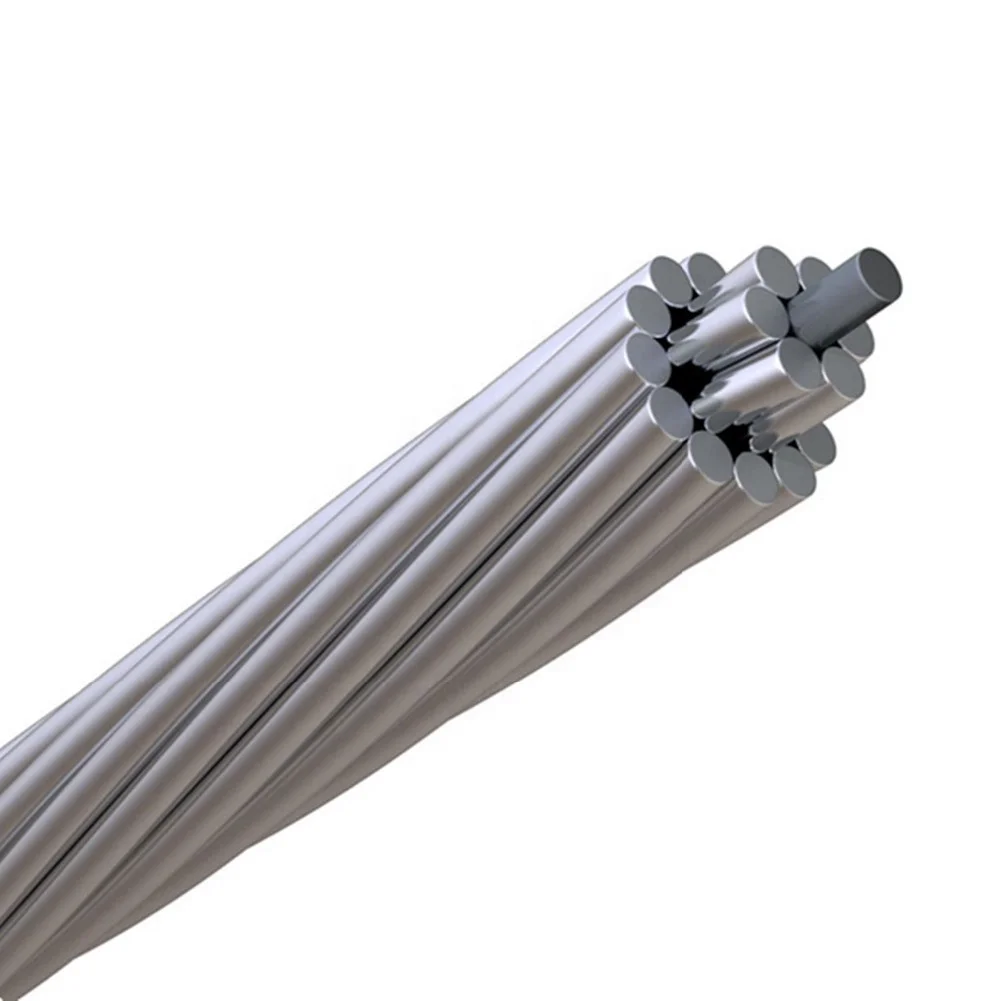

ACSR(Aluminum Conductor Steel Reinforced),consisting of a galvanized steel core which is surrounded by concentric layers of aluminum wires, and can becorrosion resistant if necessary. It is widely used in the overhead power distribution system.
2.Features:
a. high tensile strength
b. better sag properties
c. economic design
d. best suited for transmission lines with long spans
3.Application:
ACSR conductor have been widely used in power transmission lines with various voltage.
Because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
4.Standard:
We can supply this conductor according to different recognized standards,
such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110,
and customers’ special specifications also can be satisfied.
5.Package:
In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
6.Material:
Conductor: AL1350 pure aluminum
Steel core: G1A or G2A steel wire
Zinc coating steel wire
Size | Number / Diameter of wire | Calculated Cross Section Area | Overall Diameter | Weight | Calculated Breaking Load | |||||||||
AL | GSW | AL | GSW | |||||||||||
mm² | No. / mm | No. / mm | mm² | mm² | mm | kg/km | kN | |||||||
16 | 6 / 1.84 | 1 / 1.84 | 16 | 2.7 | 5.52 | 64 | 6.08 | |||||||
25 | 6 / 2.30 | 1 / 2.30 | 24.9 | 4.2 | 6.9 | 101 | 9.13 | |||||||
40 | 6 / 2.91 | 1 / 2.91 | 39.9 | 6.7 | 8.73 | 161 | 14.4 | |||||||
63 | 6 / 3.66 | 1 / 3.66 | 63.1 | 10.5 | 10.98 | 255 | 21.63 | |||||||
100 | 6 / 4.61 | 1 / 4.61 | 100.1 | 16.7 | 13.83 | 405 | 34.33 | |||||||
125 | 18 / 2.97 | 1 / 2.97 | 124.7 | 6.9 | 14.85 | 397 | 29.17 | |||||||
125 | 26 / 2.47 | 7 / 1.92 | 124.6 | 20.3 | 15.64 | 503 | 45.69 | |||||||
... | ||||||||||||||
Attention: We can provide more info than above data, if needed.The above are just some examples.

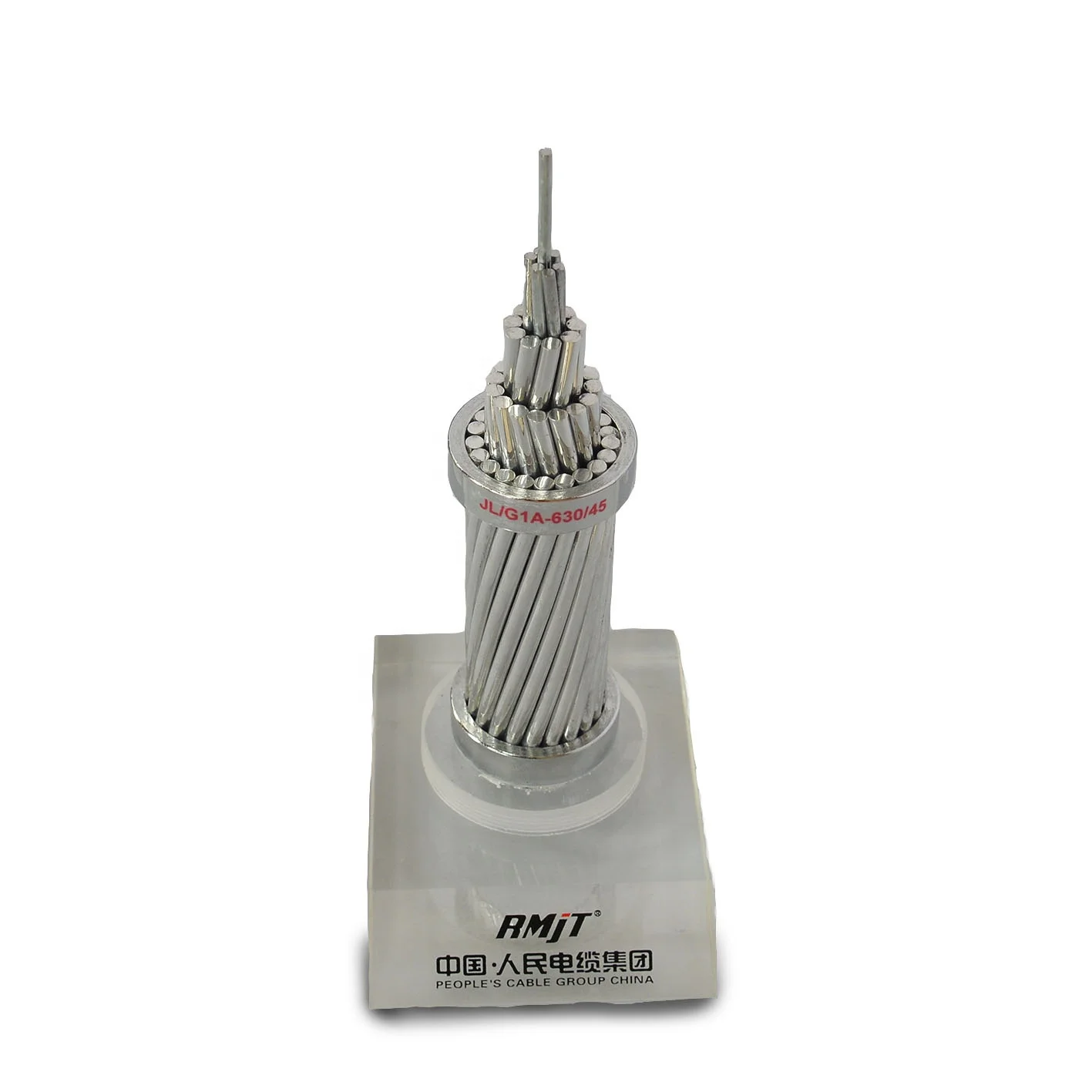

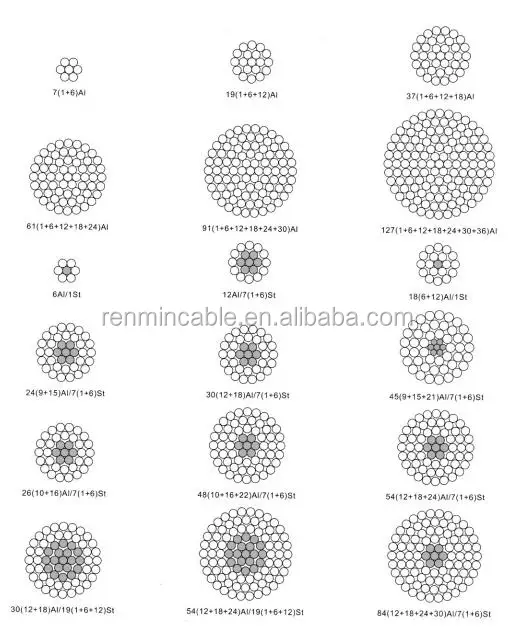

Detailed image
Our other related products

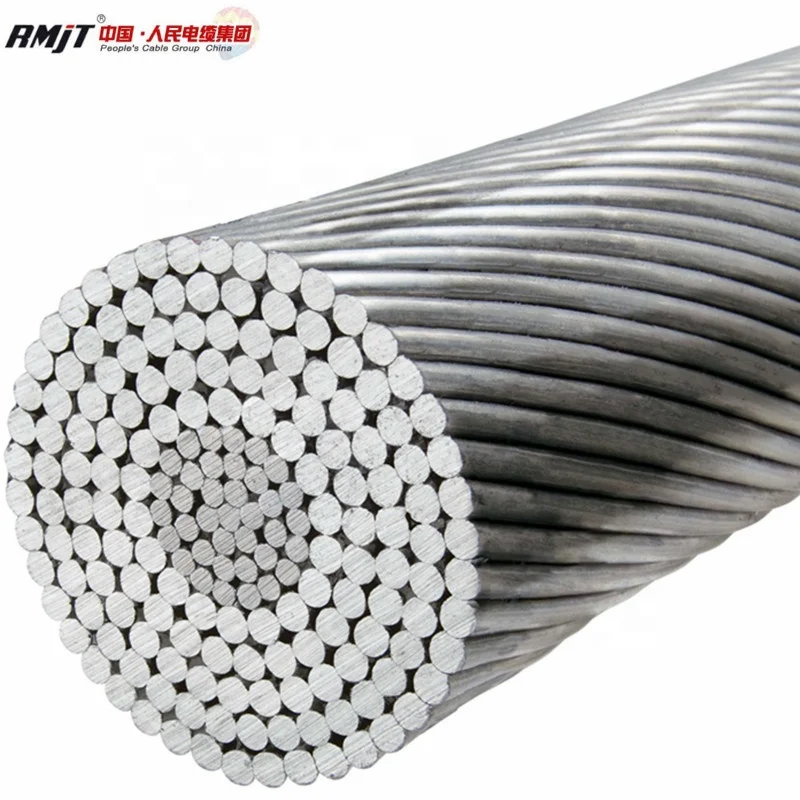

Bare Aluminum Conductor(AAC AAAC ACSR ACAR ACS...)

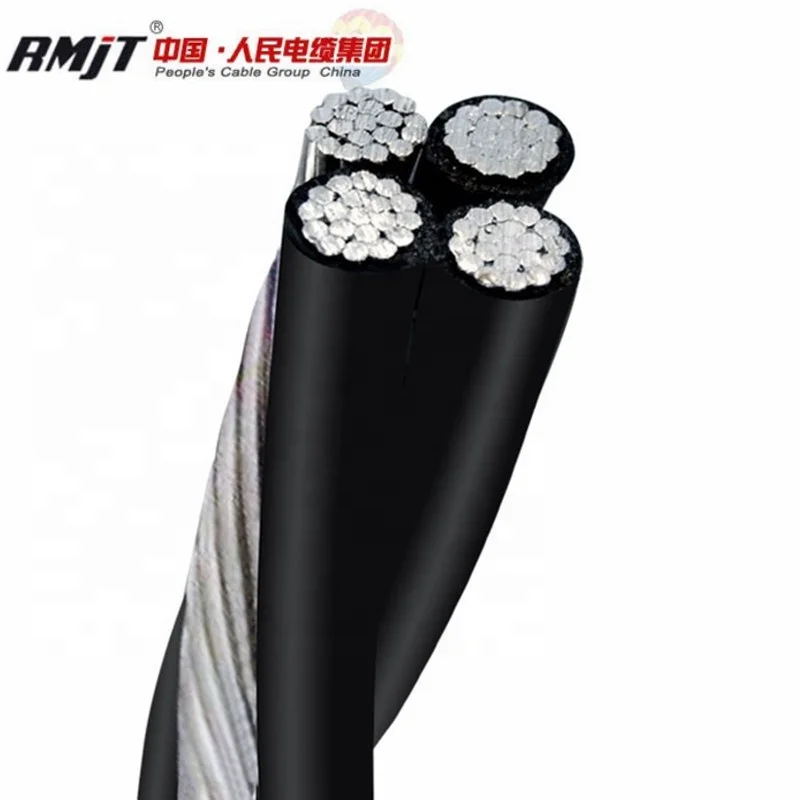

Aerial Bundled Cable(ABC Cable)
Low voltage power cable

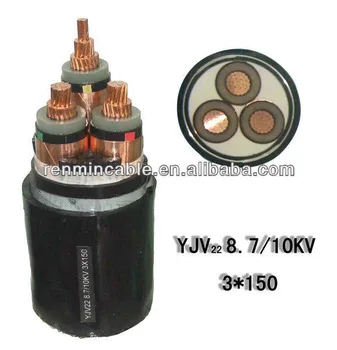

Medium voltage power cable
Control cable
NH_ fire proof power cable

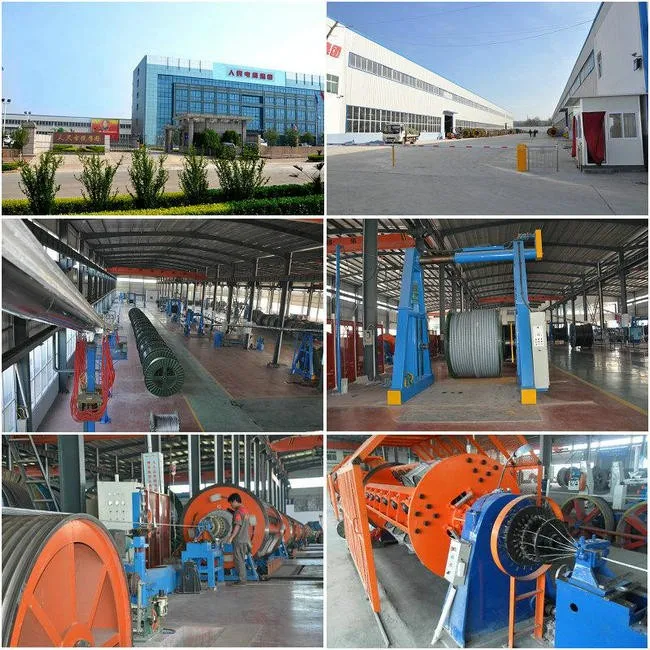

Company Profile
Company Profile
People's Cable Group Ltd is a professional cable manufacturer in china, with more than 10 years' experience in cable field, located in Yongding Road, Gongyi City, Henan Province. Our company specialize in manufacturing high, medium and low voltage cable.
And our cable mainly include xlpe power cable, pvc insulated electric cable, fireproof cable, flame-retardant cable, control cable, rubber cable, insulated aerial cable coaxial cable, waterproof cable, aluminum stranded conductor, etc. we have exported to more than 40 countries, and receiving lots of high praise from our clients.
Certification

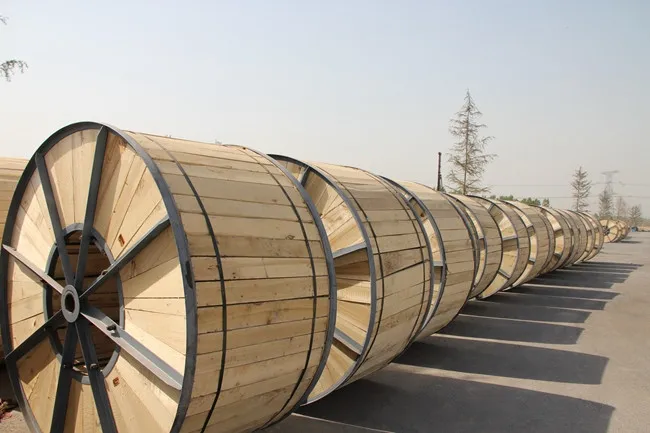

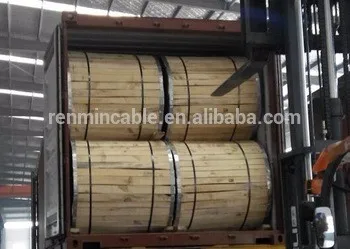

Packaging and delivery
Our customers
FAQ
Q: I didn't find the cable which I need in this page?
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q: Are you a trading company or manufacturer?
We are professional manufacturer in Henan, China.
Q: What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless it is customed-made.
Q: Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality.
Q: How long to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
Q: How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.
Q: How is the payment?
T/T, L/C is accepted.
