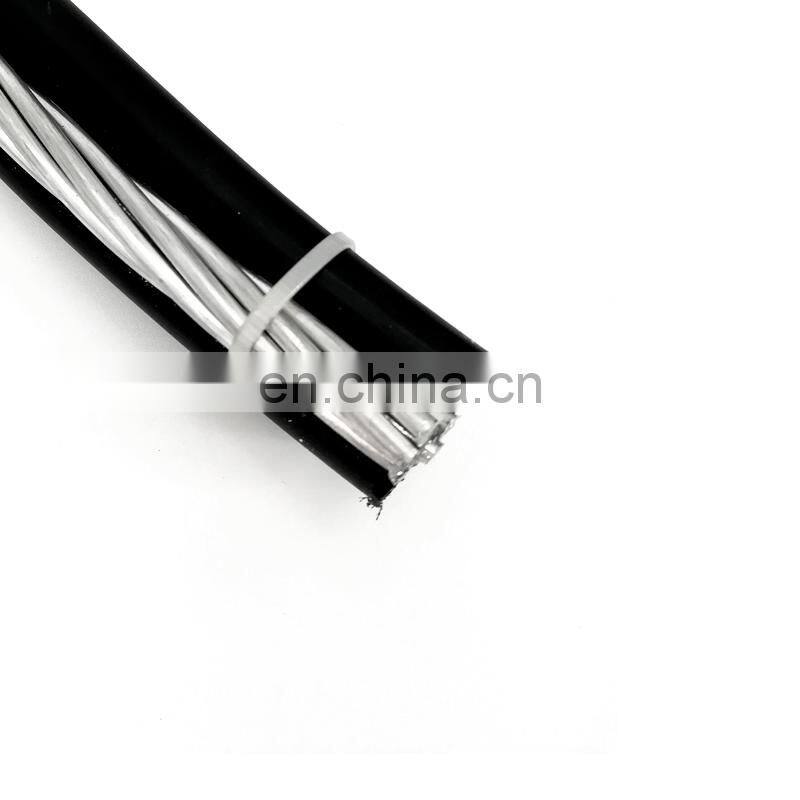

Low Voltage Quadruplex Service Drop AAAC-6201 Neutral-Messenger Aerial Bundle Cable ABC Cable

Applications

Service Drop AAAC-6201 Neutral-Messenger Aerial Bundle Cable ABC Cable used for overhead service applications such as street lighting. Outdoor lighting, and temporary service for construction. service drop abc cable/service drop cable/abc are to be used at voltages of 600V phase-to phase or less and at conductor temperatures not to exceed 75°c for polyethylene

insulated conductors or 90°c for crossliked polyethylene(XLPE) insulated conductors.

Construction

The contruction of Service Drop AAAC-6201 Neutral-Messenger Aerial Bundle Cable ABC Cableare concentric strand or

compressed 1350 H19 conductor, poly- ethylene or cross linked polyethylene insulation,concentric strand AAC, ACSR or

6201 alloy neutral messenger.

Types of XLPE(PE) insulatedabc cable (service drop)---

service drop abc cable/service drop cable/abc

 XLPE(PE) insulatedabc cable (service drop)covers mainly three types:

Duplex Service Drop

Triplex Service Drop

Quadruplex Service Drop

The cable for service drop abc cable/service drop cable/abc can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor , etc. And we can still produce the cables according to the request of customers.

Detaild Introduction of XLPE(PE) insulatedabc cable (service drop)

Duplex Service Drop

Applications: To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.

Triplex Service Drop

Applications: To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .

Quadruplex Service Drop

Applications: Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.

Standards

We can supply service drop abc cable/service drop cable/abc with the standard of ASTM.

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

We can supply service drop abc cable/service drop cable/abc with the standard of IEC60502.

We can supply service drop abc cable/service drop cable/abc with the standard of NF C33-209.

We can supply service drop abc cable/service drop cable/abc with the standard of GB 12527-90.
