0.6/1kV 3*70+54.6+2*16 Overhead ABC Cable
US$ 1 - 27.3
/ Meter
500 Meters(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
-
0.6/1KV TORSADE TWISTED BT 3X35+54.6+16 mm2 ABC cable
-
Triplex Service Drop Aluminum Conductors AAAC 6201 Alloy Neutral ABC cable
-
Aluminum conductor XLPE insulated aerial bounded cable abc cable
-
aerial bundled cable Malaysia
-
Specification 11kv 95 sq mm Electrical Aerial Power Cables Aluminium ABC Cable
-
Twisted LV Cable Triplex Aluminium HDPE Insulated Overhead 1/0 AWG Cable Offer To Malaysia
Product Details
| Brand Name | RMJT | Place of Origin | China | |
| Model Number | Overhead Abc Cable | |||
| Application | Overhead | Insulation Material | XLPE | |
| Conductor Material | Aluminum |
Product Description
Product Description
1 Application
The cable as a new type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
The conductor temperatures should not exceed 75 degrees for polyethylene(PE) insulated conductors or 90 degrees for cross-linked polyethylene(XLPE) insulated conductors.

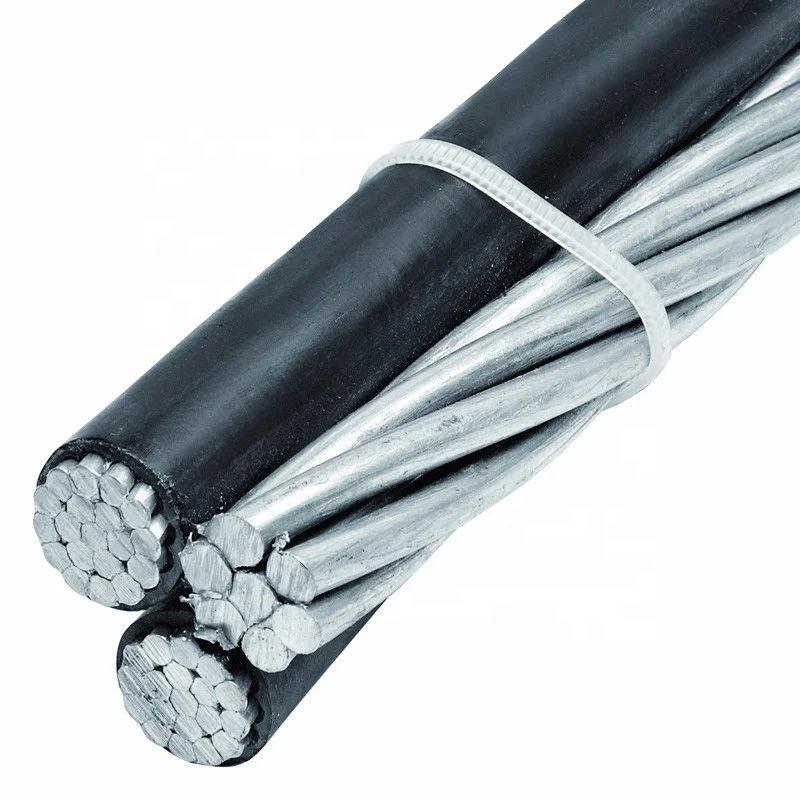

2 Structure
The basic construction is as follows:
Power cores consist of standard aluminum conductors, insulated with XLPE insulation
(1) One sheath lighting aluminum conductor with XLPE insulation(optional)
(2) One messenger Al-alloy conductor (bare or covered)
The messenger conductor can also be galvanized steel wire.
The purpose of messenger wire is:
(1) It acts as load bearing wire.
(2) It acts as earth or neutral conductor.
Number of Cores x Nominal Cross Section （No.×mm²） | Overall Diameter （mm） | Weight （Kg/Km） | ||
1 x 16 RM | 8.0 | 74.0 | ||
1 x 25 RM | 9.0 | 106.0 | ||
1 x 35 RM | 10.5 | 138.0 | ||
1 x 50 RM | 11.8 | 182.0 | ||
1 x 70 RM | 13.0 | 252.0 | ||
1 x 95 RM | 15.4 | 333.0 | ||
1 x 120 RM | 17.0 | 408.0 | ||
1 x 150 RM | 19.0 | 502.0 | ||
... | ||||
Attention: We can provide more info than above data, if needed.The above are just some examples.
Our other related products
Aerial Bundled Cable(ABC Cable)
Electrical Wire/Cable
Bare Aluminum Conductor(AAC AAAC ACSR ACAR ACS...)
Control Cable
Low voltage power cable
Medium voltage power cable
Company Profile
Company Profile
People's Cable Group Ltd is a professional cable manufacturer in china, with more than 10 years' experience in cable field, located in Yongding Road, Gongyi City, Henan Province. Our company specialize in manufacturing high, medium and low voltage cable.
And our cable mainly include xlpe power cable, pvc insulated electric cable, fireproof cable, flame-retardant cable, control cable, rubber cable, insulated aerial cable coaxial cable, waterproof cable, aluminum stranded conductor, etc. we have exported to more than 40 countries, and receiving lots of high praise from our clients.
Certification
Packaging and delivery
Our customers
FAQ
Q: I didn't find the cable which I need in this page?
If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
Q: Are you a trading company or manufacturer?
We are professional manufacturer in Henan, China.
Q: What is the MOQ?
Mostly we sell from stock for normal items, you can buy any quantity unless it is customed-made.
Q: Can you offer me a free sample?
Yes, after price confirmation, you can require for samples to check our quality.
Q: How long to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
Q: How is your package?
Normally packed with coils and cartons, and wooden/steel wooden drums, other ways can be done according you.
Q: How is the payment?
T/T, L/C is accepted.
