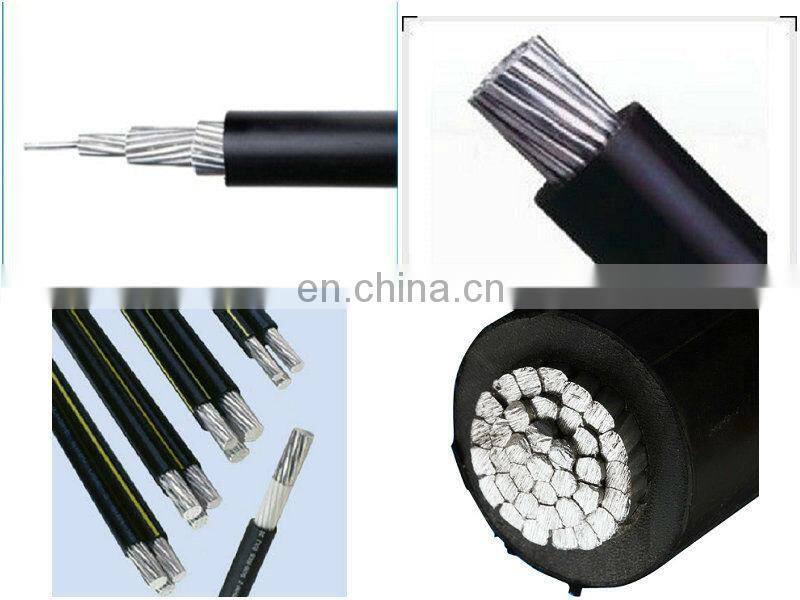

Low Voltage Aerial Bundled Cable With Aluminum Conductor Xlpe Insulated ABC Cable

Feature :

1. It is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting.

2. It is ideal or rural distribution and specially attractive for difficult areas such as hilly areas, coasted areas.

3. It is also best choice fr places with narrow lanes and bylanes.

4. Long-term operating temperature not to exceed 70°c fr PVC and PE insulated conductors and 90 °c for XLPE insulated,

   the laying temperature of the cable should not be below-20

Product:

Type and Application :

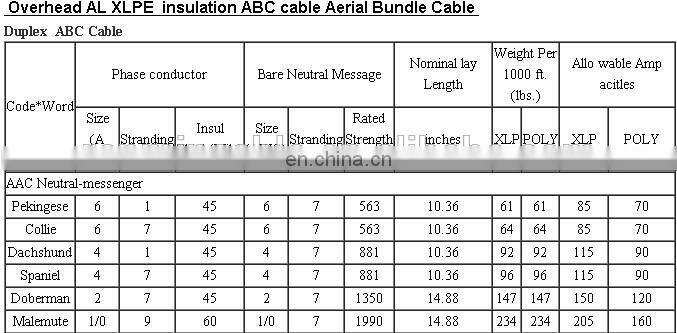

    a. Duplex Service Drop

         Application:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.

  b. Triplex Service Drop

         Application: To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene   insulation 90°C maximum for crosslinked insulation.

    c. Quadruplex Service Drop

         Application: Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at  conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinkedpolyethylene(XLPE) insulated conductors.

about us:

Aerial Bundled Cable (ABC cable ) specification:
Voltage: 0.6/1 KV
Conductor: Aluminum conductor, aluninum alloy conductor, AAC, ACSR, AAAC,
Insulation: HDPE, XLPE, PVC
Laying up: Insulated conductors are laid up around the messenger,

JKV-0.6/1: Cu core PVC aerial insulated cable with 0.6/1kV rated voltage
JKLV-0.6/1: Al core PVC aerial insulated cable with 0.6/1kV rated voltage
JKY-0.6/1: Cu core PE aerial insulated cable with 0.6/1kV rated voltage
JKLY-0.6/1: Al core PE aerial insulated cable with 0.6/1kV rated voltage
JKYJ-0.6/1: Cu core XLPE aerial insulated cable with 0.6/1kV rated voltage
JKLYJ-0.6/1: Al core XLPE aerial insulated cable with 0.6/1kV rated voltage

package:

Product Standard and Certificates:

 (1).As a leading manufacturer of Wire & Cable, our products have passed through strict inspection by Bureau of Quality Supervision to ensure the production of eligible product.

(2).By controlling the quality of products and maintaining a safe working environment, we have passed the China Compulsory Certification.

(3).Our products cover all range of cables from house wiring to power cable, all of which have obtained widely agreement from our customers across the world.

(4).Our export trading area covers Asia, Middle East, South America, Africa and Europe.

(5)We are the  Level 1 supplier of China national petroleum corporation.

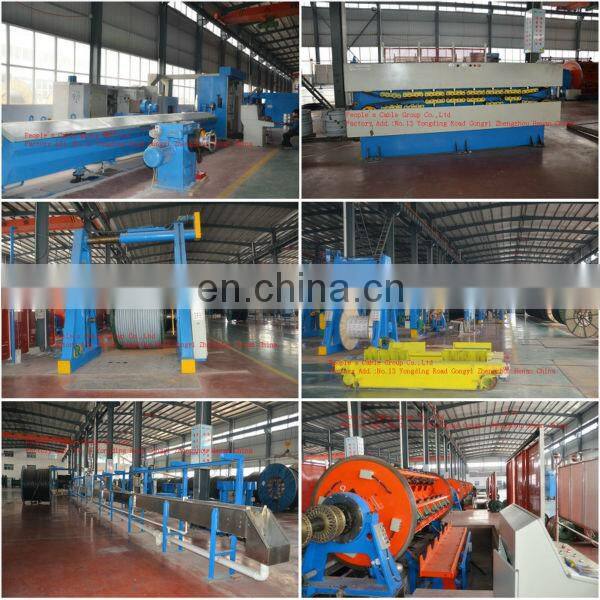

testing manchine:

FAQ:

(1).When can I get the price?

     We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please

call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

     After price confirmation, you can require for samples to check our quality. Sample is free, but the freight

charge should be paid.

(3).How long can I expect to get the sample?

     After you pay the freight charge and send us confirmed files,  the samples will be ready for delivery in 3-7

days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

     Honestly, it depends on the order quantity and the season you place the order.The best record we keep is

delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months

before the date you would like to get the products at your country.
