Medium Voltage Xlpe Insulated Parallel and Twisted Aerial Bundled Cable, ABC Cable, Electrical Cable
- Qingdao Tianjing Shanghai
- T/T Credit Card
You May Like
-
Chinese Factory Price 50mmsq 70mmsq 95mmsq 120mmsq 150mmsq ABC Overhead Electrical Wire Cable
-
10kv Overhead Transmission Line Conductor Service Drop Wire Aerial Bounded Cables ABC
-
0.6/1KV 11kv Overhead Insulated Aerial Bundle ABC Cable
-
0.6/1KV 11kv Overhead Insulating Cover for Conductor Transmission Power Wire Lines Aerial Bundle Cable3x70+54.6+16sqmm Abc Cable
-
Overhead Transmission Power Wire Lines Aerial Bundle Cable 3 Core Cenia Runcina Triton Triplex Abc Able
-
ASTM Standard Overhead Insulating Cover Transmission Wire Lines Aerial Bundle Aluminium Power Cables
Product Details
| Brand Name | RMJT | Place of Origin | Henan, China | |
| Model Number | abc cable | |||
| Application | Overhead | |||
| Conductor Material | Aluminum |
Product Description

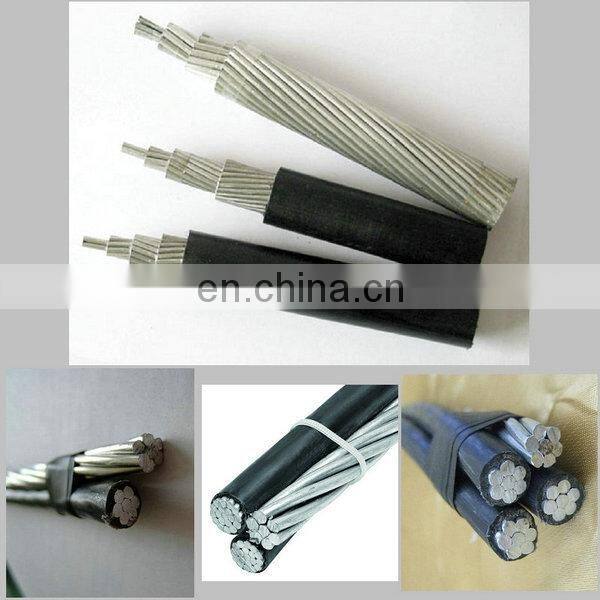

medium voltage xlpe insulated parallel and twisted Aerial Bundled Cable, ABC cable, electrical cable
Product Description
1.Introduction
ABC aerial Cable are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. They can improves safety and reliance of electrified wire netting.

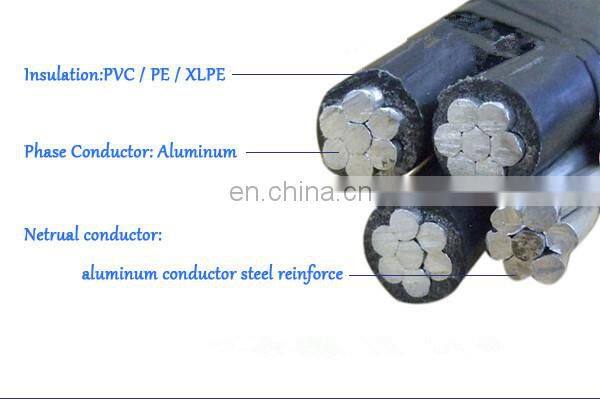

2.Construction
Phase conductors are concentrically stranded EC Grade aluminum wires, insulated with either black weather resistant cross linked polyethylene (XLPE) or polyethylene (PE). The conductor insulation is marked with longitudinal ridges for phase identification.
Neutral messengers are concentrically stranded AAC or 6201 Alloy or ACSR. Neutral messenger can either be bare or insulated, depending on ABC aerial cable design.
3.Standards(ABC aerial cable)
1). B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2). B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3). B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4). B-399 Concentric-Lay Stranded 6201-T81 Aluminum Alloy Conductors.
5). B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6). Duplex Aerial Bundled Cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
4.Type(ABC aerial cable)
Duplex ABC Cable
| Code*Word | Phase conductor | Bare Neutral Message | Nominal lay Length | Weight Per 1000 ft.(lbs.) | Allo wable Amp acitles | ||||||
| Size (A WG) | Stranding | Insul Thick(Mils) | Size (AWG) | Stranding | Rated Strength (lbs.) | inches | XLP | POLY | XLP | POLY | |
| AAC Neutral-messenger | |||||||||||
| Pekingese | 6 | 1 | 45 | 6 | 7 | 563 | 10.36 | 61 | 61 | 85 | 70 |
| Collie | 6 | 7 | 45 | 6 | 7 | 563 | 10.36 | 64 | 64 | 85 | 70 |
| Dachshund | 4 | 1 | 45 | 4 | 7 | 881 | 10.36 | 92 | 92 | 115 | 90 |
| Spaniel | 4 | 7 | 45 | 4 | 7 | 881 | 10.36 | 96 | 96 | 115 | 90 |
| Doberman | 2 | 7 | 45 | 2 | 7 | 1350 | 14.88 | 147 | 147 | 150 | 120 |
| Malemute | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 14.88 | 234 | 234 | 205 | 160 |
Triplex ABC Cable
| Code*Word | Phase conductor | Bare Neutral Message | Nominal lay Length | Weight Per 1000 ft.(lbs.) | Allo wable Amp acitles | ||||||
| Size (A WG) | Stranding | Insul Thick(Mils) | Size (AWG) | Stranding | Rated Strength (lbs.) | inches | XLP | POLY | XLP | POLY | |
| AAC Neutral-messenger | |||||||||||
| Pateela | 6 | 7 | 45 | 6 | 7 | 563 | 14.88 | 103 | 103 | 85 | 70 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 14.88 | 154 | 154 | 115 | 90 |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 20.58 | 233 | 233 | 150 | 120 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 20.58 | 374 | 374 | 205 | 160 |
| Purpura | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 20.58 | 368 | 368 | 205 | 160 |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 25.42 | 462 | 462 | 235 | 185 |
| Melita | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 29.97 | 562 | 562 | 275 | 215 |
| Portunus | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 29.97 | 696 | 696 | 315 | 245 |
| Nannynose | 336.4 | 19 | 60 | 336.4 | 19 | 6146 | 38.79 | 1118 | 1118 | 420 | 325 |
| *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP) +Conductor temperature of 90 for XLP,75 for Poly;ambient temperature of 40;emissivity 0.2;2ft./sec.Wind in sun. | |||||||||||
Quadruplex ABC Cable
| Code*Word | Phase conductor | Bare Neutral Message | Nominal lay Length | Weight Per 1000 ft.(lbs.) | Allo wable Amp acitles | ||||||
| Size (A WG) | Stranding | Insul Thick(Mils) | Size (AWG) | Stranding | Rated Strength (lbs.) | inches | XLP | POLY | XLP | POLY | |
| AAC Neutral-messenger | |||||||||||
| Clydessdale | 4 | 1 | 45 | 4 | 7 | 881 | 20.58 | 198 | 198 | 100 | 80 |
| Pinto | 4 | 7 | 45 | 4 | 7 | 881 | 20.58 | 211 | 211 | 100 | 80 |
| Mustang | 2 | 7 | 45 | 2 | 7 | 1350 | 25.42 | 318 | 318 | 135 | 105 |
| Criollo | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 25.42 | 503 | 503 | 180 | 140 |
| Percheron | 2/0 | 11 | 60 | 2/0 | 7 | 2510 | 29.97 | 619 | 619 | 205 | 160 |
| Hanovarian | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 35.18 | 764 | 764 | 235 | 185 |
| Oldenburg | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 35.18 | 945 | 945 | 275 | 210 |
| Lippizaner | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 38.79 | 1519 | 1519 | 370 | 280 |
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP) +Conductor temperature of 90 for XLP,75 for Poly;ambient temperature of 40;emissivity 0.2;2ft./sec.Wind in sun | |||||||||||
Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on.As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.

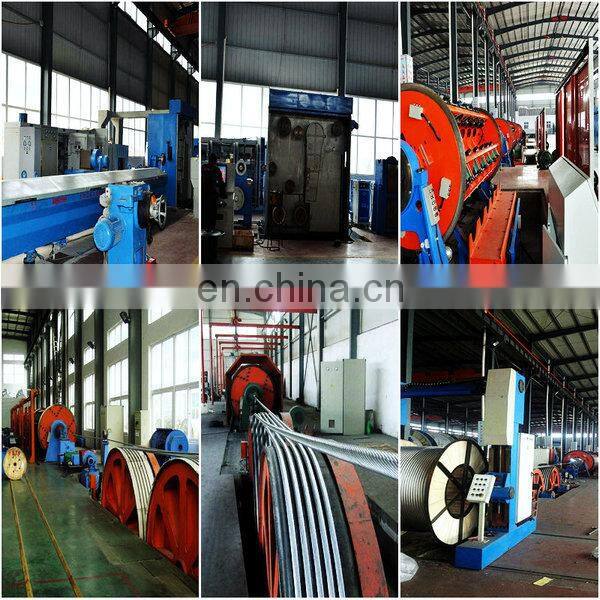

As one of top rank cables manufacturers in China, our Zhitian factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And the Zhulin factory is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as triplex overhead service conductors(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).

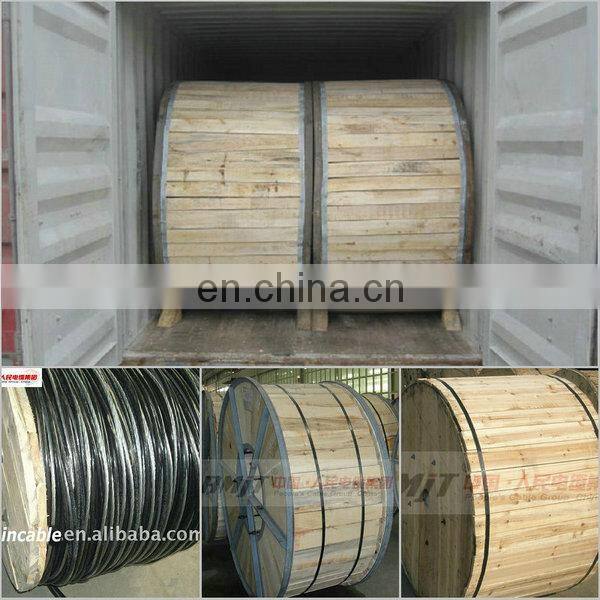

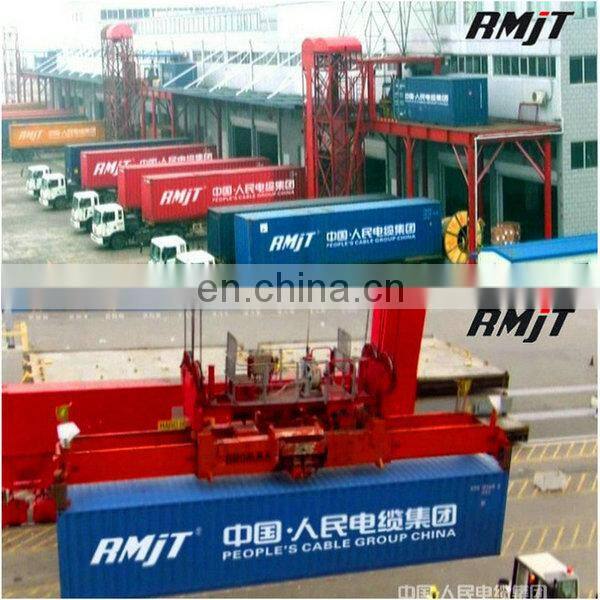

Wooden or iron drum or as customer's requirement

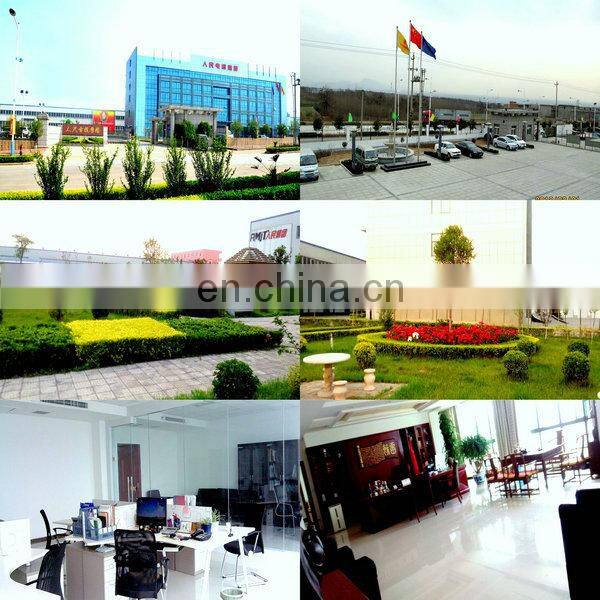

Company Information
People's Cable Group Co., Ltd. Was founded in 2007, With good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts

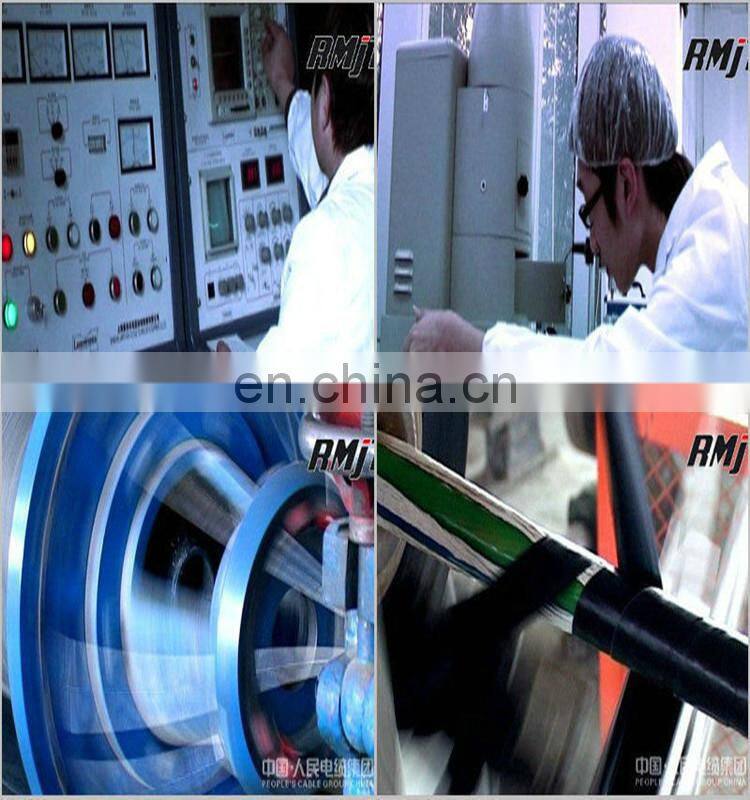

Testing
Our market
With the perfect quality and after sales service,our products are very popular in domestic market,whatever in civil using and the government projects.For oversea market,till now we have expanded our market to South America like Chile,Colombia,Bolivia,Brazil and so on,Euro-American market like U.S.A.Germany,Spain,U.K. And so on.Middle East,Africa,Southeast Asia,Mongolia and some other areas.
1.Are you factory or trading company?
We are factory with 27 years manufacturing experiences.
2.When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
3.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
Sample is free,but the freight charge should be paid.
4.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
5.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
The best record we keep is delivering 10 kilometers cable within a week.
Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
6.What is your terms of delivery?
We accept EXW, FOB, CFR, CIF, DDU, DDP, etc. You can choose the one which is the most convenient or cost effective for you.
