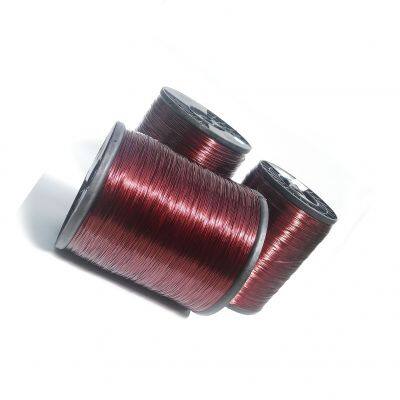

Manufacturing Price Enameled Aluminum Magnet Wire With ISO UL ROHS REACH Certification Brazil
US$ 4.03
500 - 4999 Kilograms
US$ 3.81
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturing AWG/SWG Magnet Wire Motor Winding Aluminium Enameled Wire for Motor Capacitor Starter IndonesiaUS$ 3.77 - 3.97MOQ: 500 Kilograms -
REACH RoHS Certificated Enameled Aluminum Magnetic Wire for Motors and Transformers Electrical Wires Winding IndonesiaUS$ 3.83 - 4.03MOQ: 500 Kilograms
-
EI/AIW-200 220 AWG/SWG Aluminium Enameled Round Wire Magnet Wire With ISO ROHS REACH Certification JingdaUS$ 3.79 - 3.99MOQ: 500 Kilograms
-
Manufacturer Wholesales Enameled Aluminum Magnet Wire Winding Coil AWG4-32 UzbekistanUS$ 3.82 - 4.02MOQ: 500 Kilograms
-
AWG/SWG IEC-60317 Motor Winding Enameled Aluminium Magnet Wire Winding Electrical Wires ISO Certification PortugalUS$ 3.79 - 3.99MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
AWG
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ISO9001 ROHS REACH UL
Bobbin:
PT25 PT30 PT60 PT200 PT270
Color
Brown
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
Product Name: AWG enameled aluminum wire /swg Magnetic wire
Gauge Class 155-180-200-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
AWG15 Round Enamelled Aluminum Wire Used For Washing Machine Motors Winding
High Quality Enameled Round aluminum 18 AWG Magnet Wire
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
