LBJ Series Standard Load Testing Machine
1. Introduction

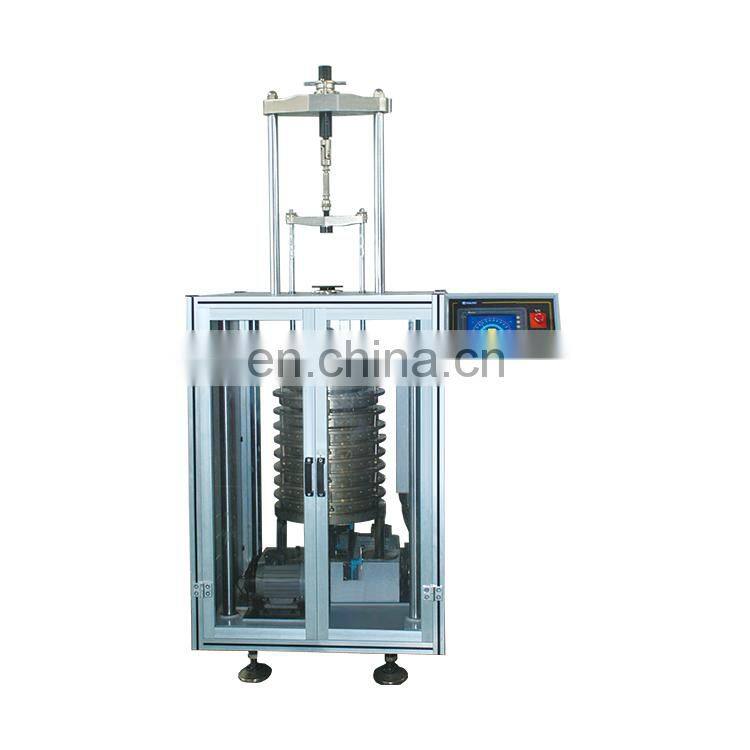

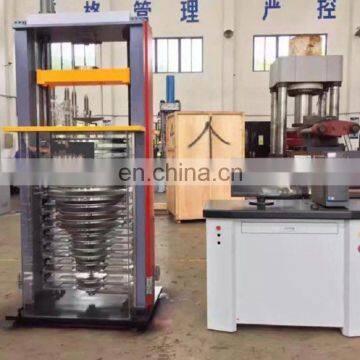

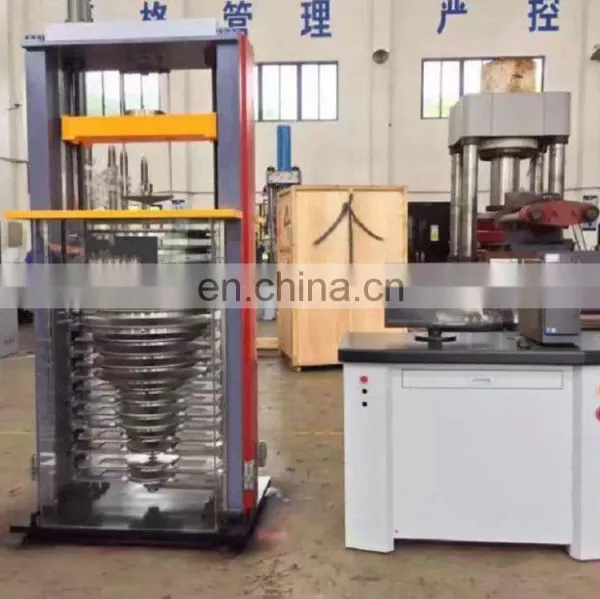

The LBJ Series standard load testing machine is a measuring instrument for force value calibration, which
can be used for tensile and compression tests.It is mainly composed of main machine, table type electric
control cabinet and computer system.
2. Machine structure
2.1 Host
2.2 Weight and its drive mechanism
2.3 Host rack combination
2.4 Reaction frame suspension assembly
2.5 Anti-swing device
3. Control System
Adopt Japanese Panasonic PLC control system, computer operation method, automatic loading and unloading. Automatically collect data, store, and automatically print test reports. With security protection {emergency stop}
China First Material Testing Machine Cop.
button switch.
4. Operating software
The software system is designed and developed by the our company. It has real-time monitoring of running
status, real-time display of the number and position of weight loading, etc. It has real-time pause, one-key
recovery, automatic unloading and other functions.
5. Specifications
- Weight group: 100N four blocks, 200N four blocks, 300N one block, 500N three blocks, 1000N seven blocks
- Measurement range: 100N—10kN
- Force accuracy: 0.005%
- Adding and unloading time: less than 10s
- Test space: no less than 200mm wide, pull/pressure two-way height: 400mm
