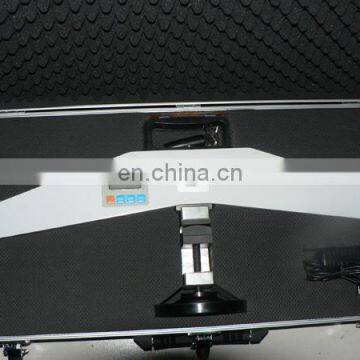

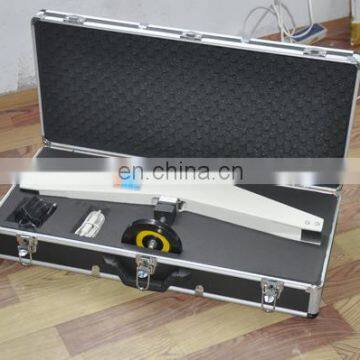

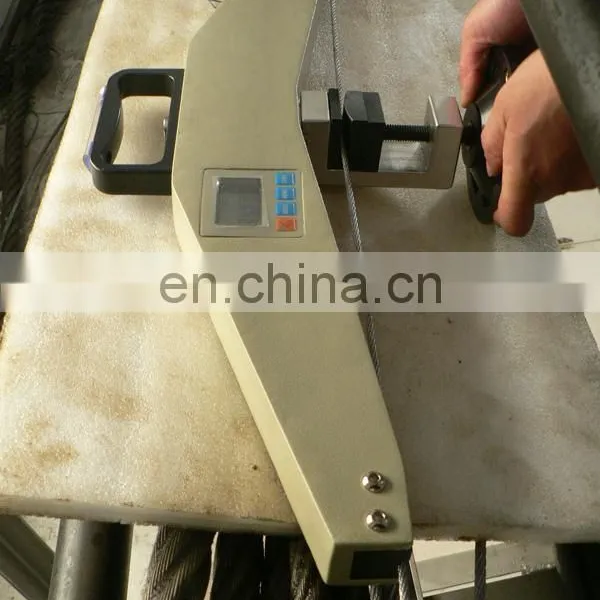

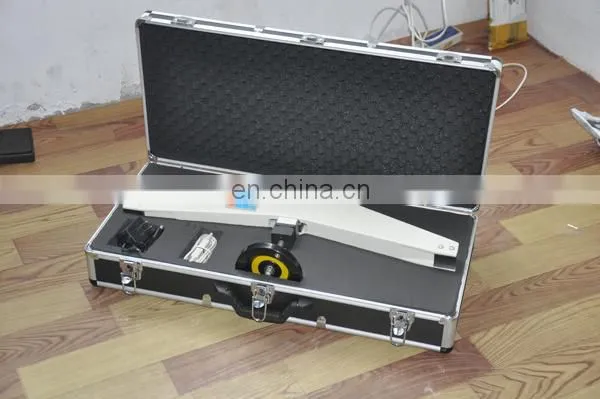

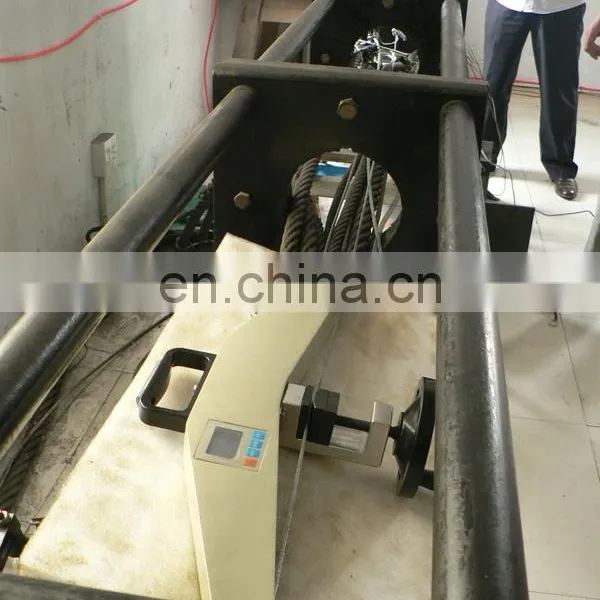

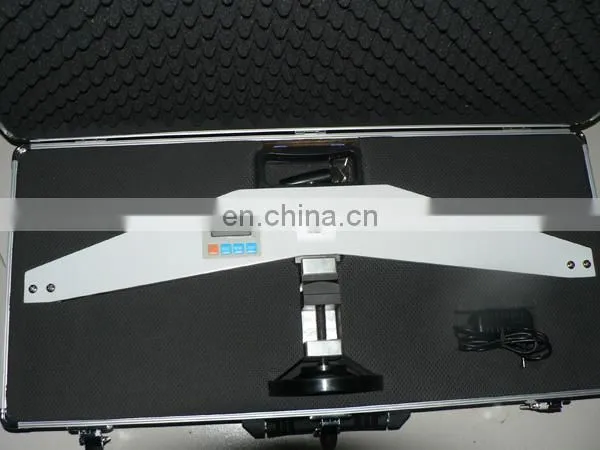

Portable Outdoor Wire Rope Tension Meter Tester / Cable Tension Tester
US$ 560 - 3,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hensgrand
Place of Origin:
Shandong, China
Model Number:
ASZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HF 50ton Digital Push Pull Dynamometers / Push and Pull Tester/meter / Push Pull GaugeUS$ 600 - 1,000MOQ: 300 Pieces -
Digital Tension Meter / Force Gauge / DynamometerUS$ 150 - 900MOQ: 1 Set
-
ASZ Outdoor Wire Rope Tension Meter Tester or Cable Tension MeterUS$ 560 - 3,999MOQ: 1 Set
-
Digital Display Column Type Push and Pull Force Gauge/dynamometerUS$ 130 - 4,000MOQ: 1 Set
-
Manual Side Shaking Vertical DynamometerUS$ 100 - 1,000MOQ: 1 Set
Brand Name
Hensgrand
Place of Origin
Shandong, China
Model Number
ASZ
Power
Electronic
belt tension tester
Portable Outdoor Wire Rope Tension Tester
Product Description
Applied Occasions:
Rope Tension Testing Instrument can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, ropeway industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes.
Functional Features:
1. It has the rope structure with tension force, and can be measured directly without the need of being taken apart.
2. It has the light weight, simple structure, convenient operation, and applies to any situations.
3. It has the stable performance, high measurement accuracy, with automatic system compensation function. When the specification of the tested rope is the same as the rope tension testing instrument rope number, the measurement accuracy can reach 2% error or less within the rated measurement range.
4. It has broader range of measurement, with 15 kinds of rope-diameter measuring functions.
5. Applied range: applied to flexible, stretched ropes, such as various steel wire ropes, high-strength ropes, etc.
6. Accuracy grade: 2~6% of maximum function (depending on the rope form and features).
7. Rope Diameter: ¢6~¢40mm.
Parameter:
| Item No. | Maximum load value (KN) | Divided load value (KN) |
| ASZ-20KN | 20 | 0.01 |
| ASZ-50KN | 50 | 0.01 |
| ASZ-100KN | 100 | 0.1 |
| ASZ-200KN | 200 | 0.1 |
