500N Pneumatic Clamping Fixture Grips For Universal Testing Machine
US$ 1,000 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST / Customized
Model Number:
502A
Power:
Electronic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pneumatic Clamping Fixture Grips For Universal Testing MachineUS$ 1,000 - 1,000MOQ: 1 Set -
Fastener Grips Bolt Nut Fixture M6 M8 M10 M12 M24 M32US$ 70 - 80MOQ: 1 Set
-
Vertical Horizontal Dual Push Pull Test StandUS$ 100 - 1,000MOQ: 1 Set
-
HF Digital Display Push and Pull Force Gauge/dynamometerUS$ 130 - 4,000MOQ: 1 Set
-
Portable Outdoor Wire Rope Tension Meter Tester / Cable Tension TesterUS$ 560 - 3,999MOQ: 1 Set
Brand Name
HST / Customized
Model Number
502A
Power
Electronic

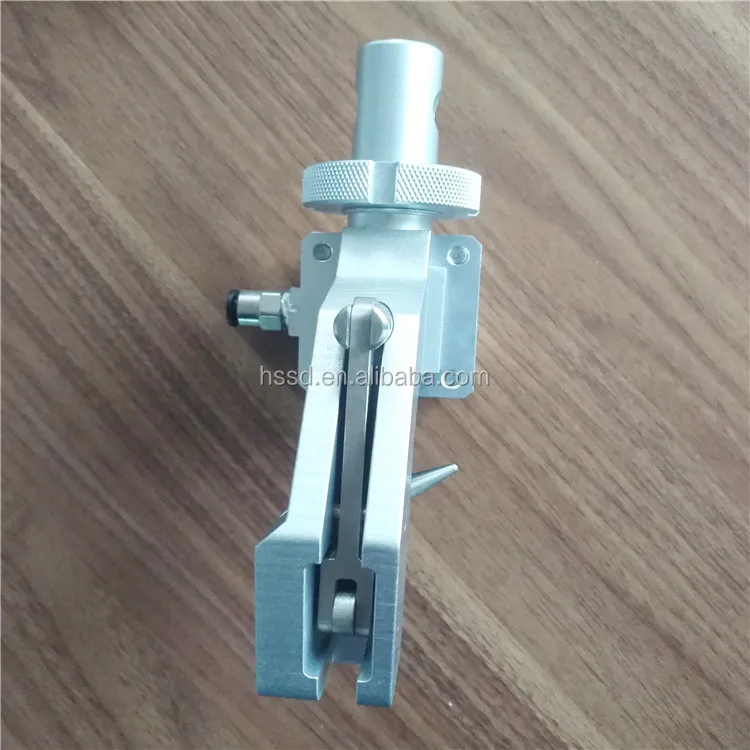

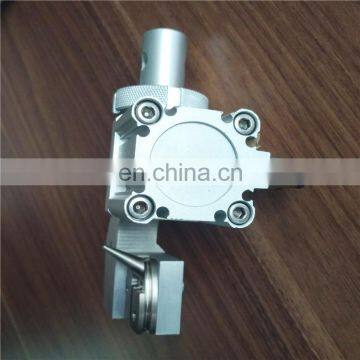

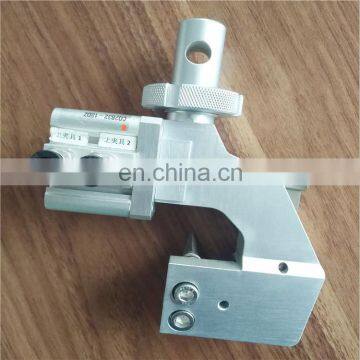

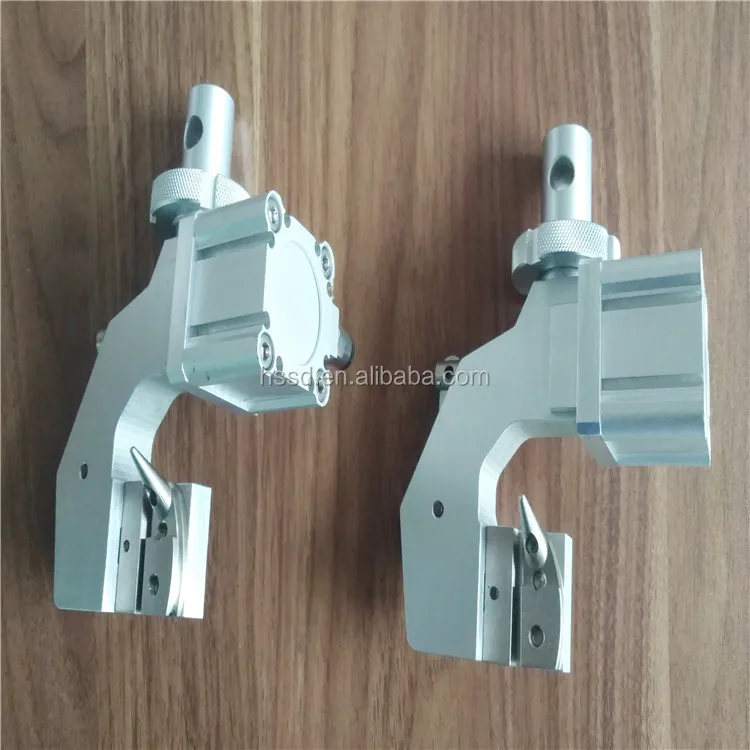

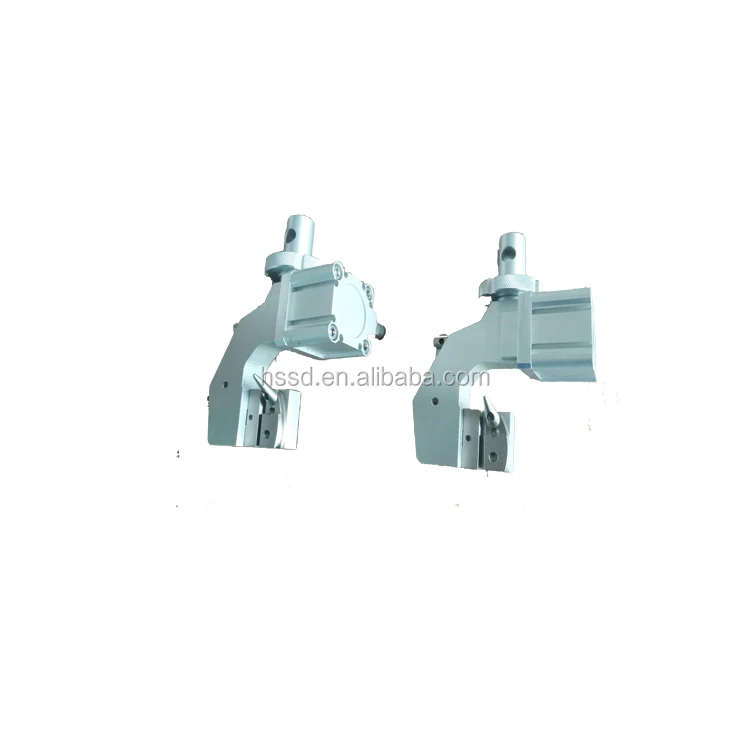

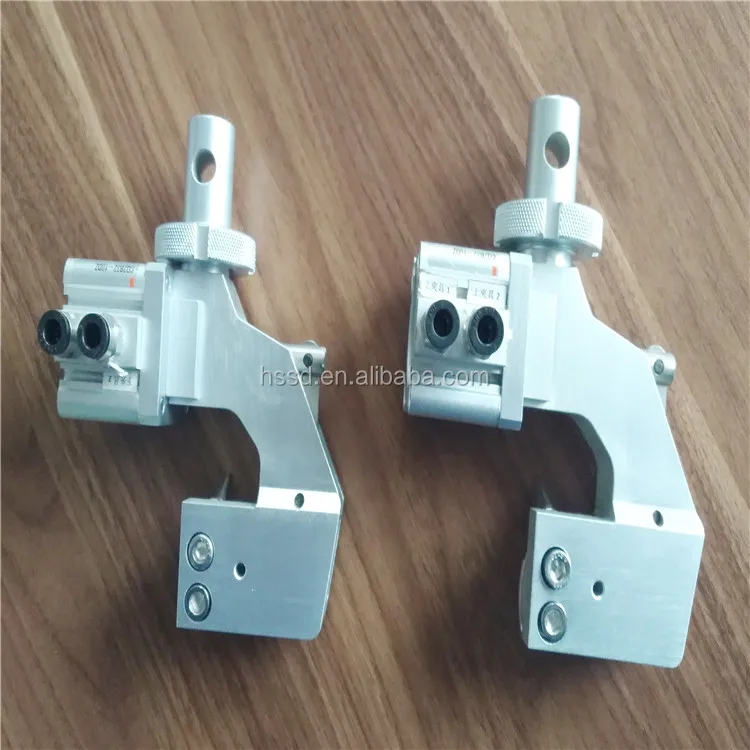

Pneumatic Clamping Fixture Grips For Universal Testing Machine
Pneumatic cord and yarn grips provide a convenient method for clamping fiber, cord, yarns and fine wires to reduce the problem associated with testing these materials.
Product Description
Application Range
* This pneumatic clamping fixture is suitable for tensile test test of wire specimen.
* Type of loading: Tension. Not suitable for through zero / reverse stress or fatigue testing * Specimen material: Fine wires, cords, yarns, mono-filaments
* Specimen shapes: Round
Features
* The clamp is pneumatically clamped.

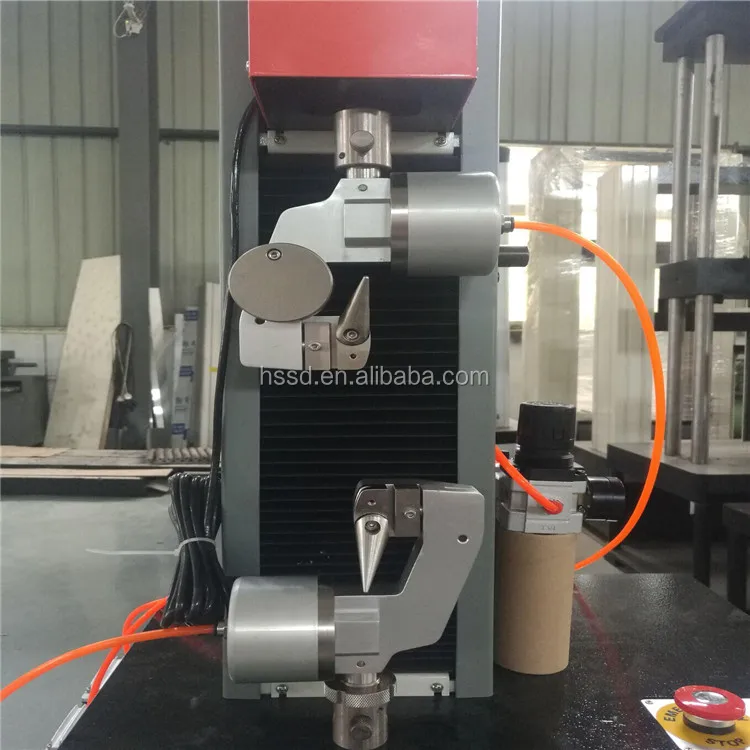

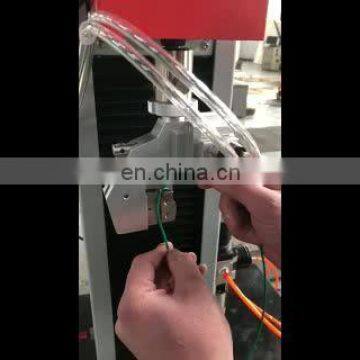

* Clamping method: After the upper clamp automatically clamps the specimen, the lower clamp automatically clamps the specimen after the predetermined load is given.
* Clamping method: After the upper clamp automatically clamps the specimen, the lower clamp automatically clamps the specimen after the predetermined load is given.
* Adjustable gripping force to reduce breakage at the clamping point
* Quick grip release for increased productivity
*Optional automatic air kit with pretension and remote control for easy loading
and improved efficiency
Specifications

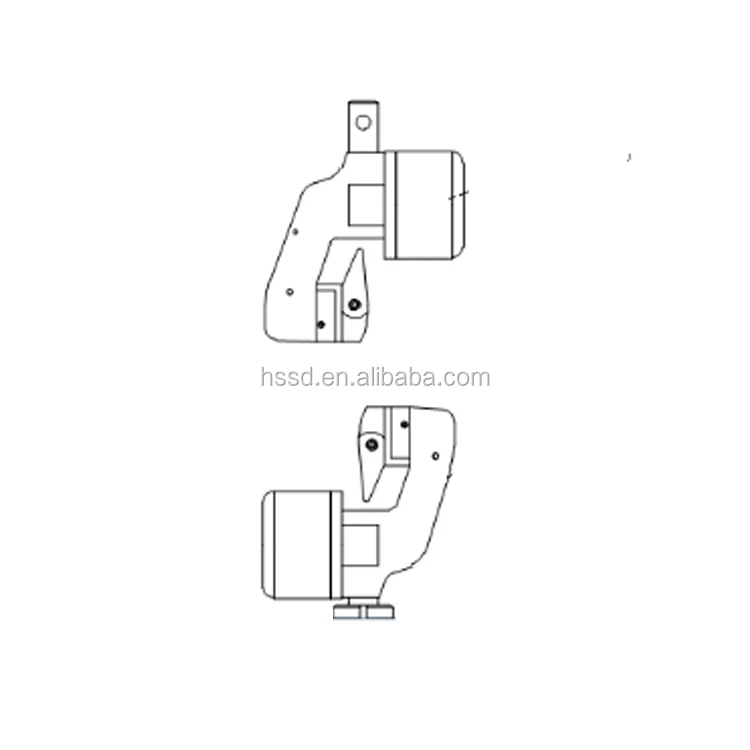

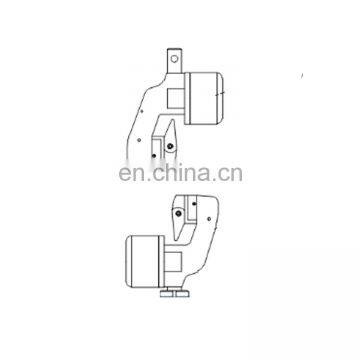

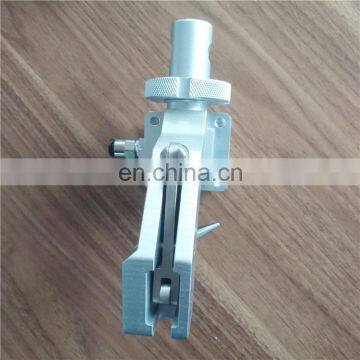

A specially designed horn with a smooth finish and a contoured surface with a graduated cam allows for easy loading and a stress reduced clamping area on the specimen.

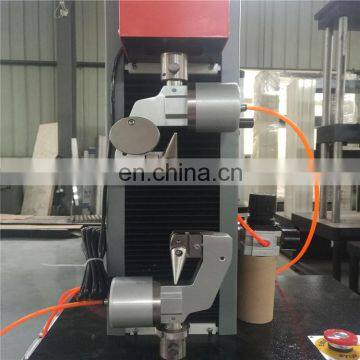

The clamping mechanism can be activated either automatically or through a foot switch.
Max. capacity |
500N |
Upper Fitting |
6 clevis pin (Type Om) |
Lower Fitting |
6 clevis pin (Type Om) |
Temperature Range |
-10 to +80 |
Working Principle |
Pneumatic single moving face clamping |
Maximum Air Pressure |
6.2-bar (90 PSI) |
Details Images
