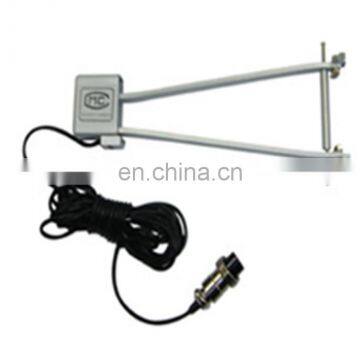

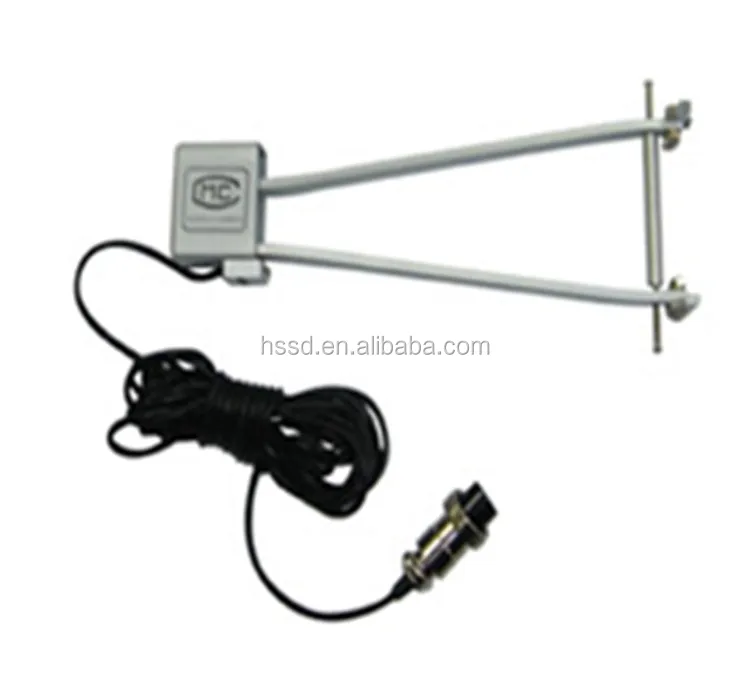

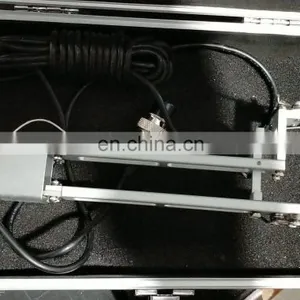

Electronic Extensometer For Tensile Testing Deformation Measurement
US$ 31,200 - 31,500
/ Set
1 Set(Min. Order)
- T/T Credit Card
You May Like
-
RTTS Video Extensometer For Steel Bar Tensile Testing Machine For Sale
-
4 Heads Martindale Abrasion Testing Machine For Fabric Textile Testing With The Best Price From Factory
-
Good Quality Digital Magic Tape Fatigue Tester DIN 3415 Adhesive Tape Fatigue Testing Machine From China Factory
-
High Precision Gold Purity Testing Machine For Metal Analysis From Manufacture
-
High Precision Gold Purity Testing Machine For Gold Analysis With The Best Price
-
500N Pneumatic Clamping Fixture Grips For Universal Testing Machine
Product Details
| Brand Name | HST / Customized | Model Number | 10/25 | |
| Power | Electronic |
Product Description
What is the extensometer?
The electronic extensometer is a sensor that measures the deformation of the test piece. The strain gauge extensometer is a widely used type due to its simple principle and convenient installation.
Electronic extensometers can be divided into axial extensometers, lateral extensometers, and clip extensometers according to the measurement object.
Electronic extensometers can be divided into axial extensometers, lateral extensometers, and clip extensometers according to the measurement object.
Product Description

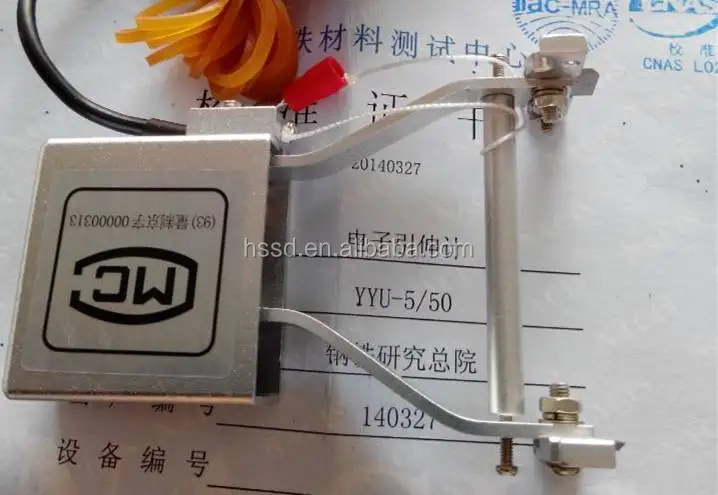

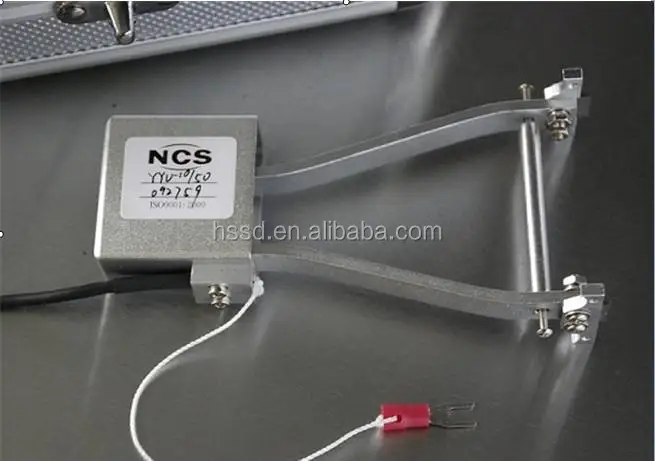

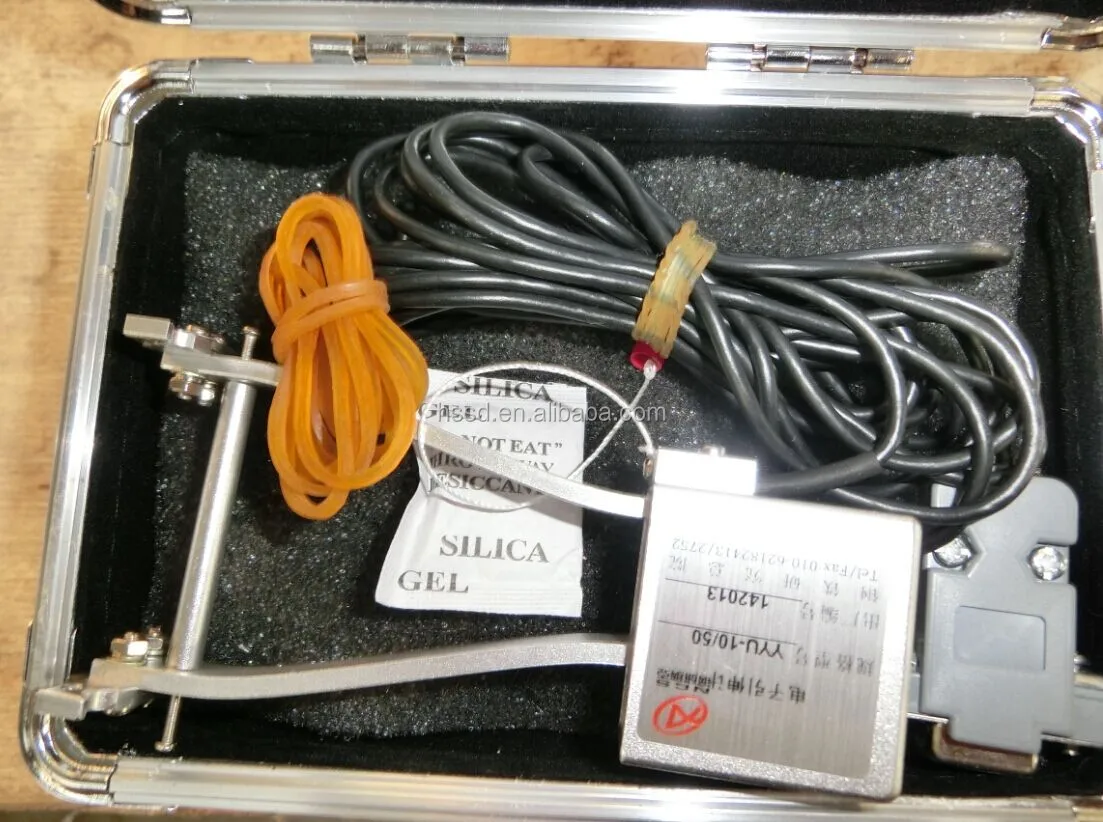

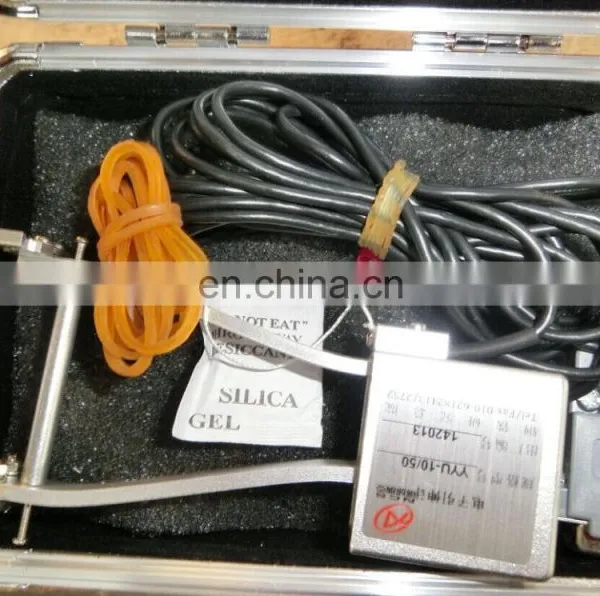

Introduction of the YYU extensometer:
YYU series axial deformation extensometer is suitable for testing of metal and non-metal materials. Including conventional extensometer, average strain extensometer, special extensometer (large gauge steel strand, concrete, rock, wood, etc.)
Used to measure elastic modulus E, prescribed non-proportional elongation strength RP, prescribed total elongation strength Rt, various elongations, strain hardening index n and other parameters.
YYU series axial deformation extensometer is suitable for testing of metal and non-metal materials. Including conventional extensometer, average strain extensometer, special extensometer (large gauge steel strand, concrete, rock, wood, etc.)
Used to measure elastic modulus E, prescribed non-proportional elongation strength RP, prescribed total elongation strength Rt, various elongations, strain hardening index n and other parameters.
Using method:
YYU series extensometer mounting card: Use two fingers to gently pinch the extensometer's two force arms to make the gauge rod contact the force arm, and insert the attached gauge sheet opening between one of the force arm and the gauge rod between. Using an extensometer hook, secure the extensometer to the specimen with a rubber band.
Note: The holding force should be appropriate, and the center line of the two knife edges should be parallel to and aligned with the axis of the sample.
After the inspection is correct, remove the gauge plate so that a distance of about 0.5mm is maintained between the force arm and the gauge rod.
For YYU series extensometers using spring clamps, please refer to Article 2 and special precautions.
YYU series extensometer mounting card: Use two fingers to gently pinch the extensometer's two force arms to make the gauge rod contact the force arm, and insert the attached gauge sheet opening between one of the force arm and the gauge rod between. Using an extensometer hook, secure the extensometer to the specimen with a rubber band.
Note: The holding force should be appropriate, and the center line of the two knife edges should be parallel to and aligned with the axis of the sample.
After the inspection is correct, remove the gauge plate so that a distance of about 0.5mm is maintained between the force arm and the gauge rod.
For YYU series extensometers using spring clamps, please refer to Article 2 and special precautions.

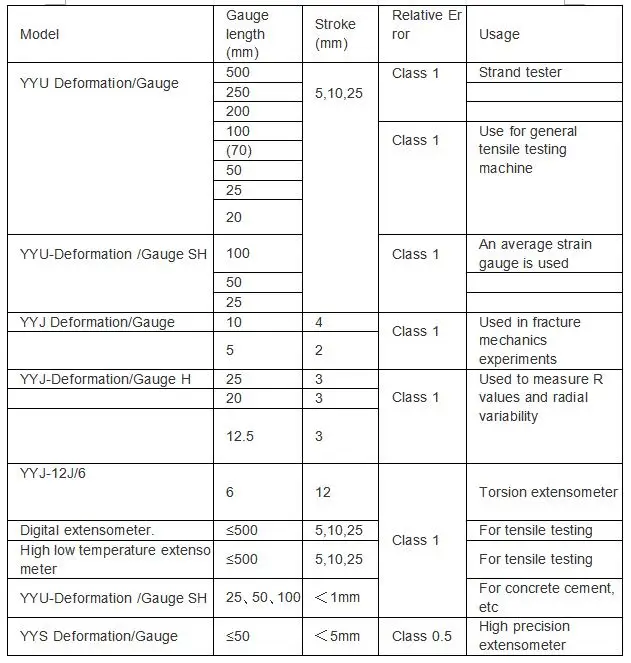

Specifications
1. Resistance value of strain gauge: 350Ω
2. Supply bridge voltage value: ≤6V (DC, AC )
3. Output sensitivity: about 2mv / v
4. Extensometer gauge distance: YYU series 20 ~ 200mm; YYJ series 5 ~ 25mm.
5. Maximum deformation: YYU series 25mm; YYJ series 4mm
6. Output terminal connector: four-core or five-core plug, etc.
The above are general parameters. If users have special requirements, they can be specially produced and provided as required.
2. Supply bridge voltage value: ≤6V (DC, AC )
3. Output sensitivity: about 2mv / v
4. Extensometer gauge distance: YYU series 20 ~ 200mm; YYJ series 5 ~ 25mm.
5. Maximum deformation: YYU series 25mm; YYJ series 4mm
6. Output terminal connector: four-core or five-core plug, etc.
The above are general parameters. If users have special requirements, they can be specially produced and provided as required.
