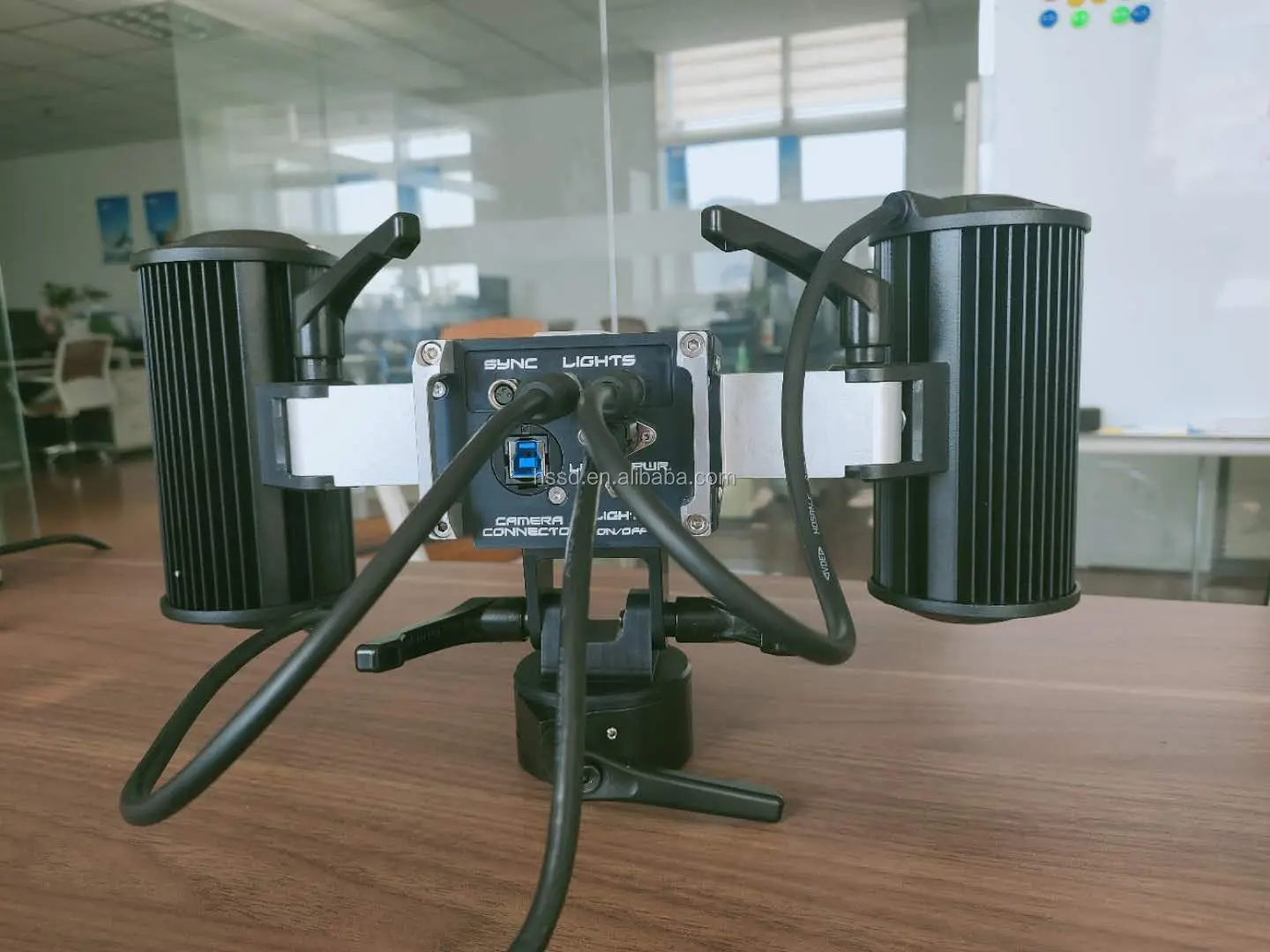

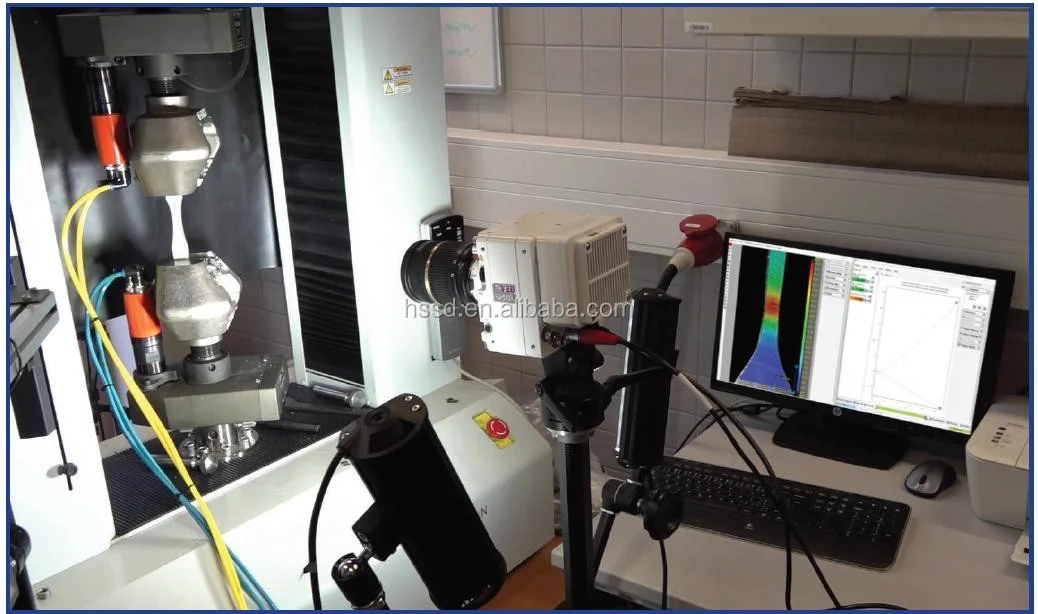

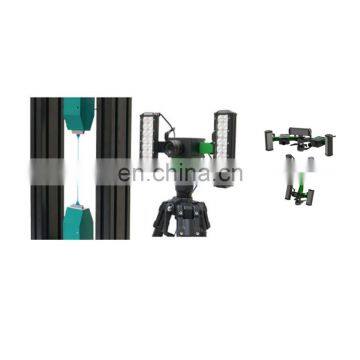

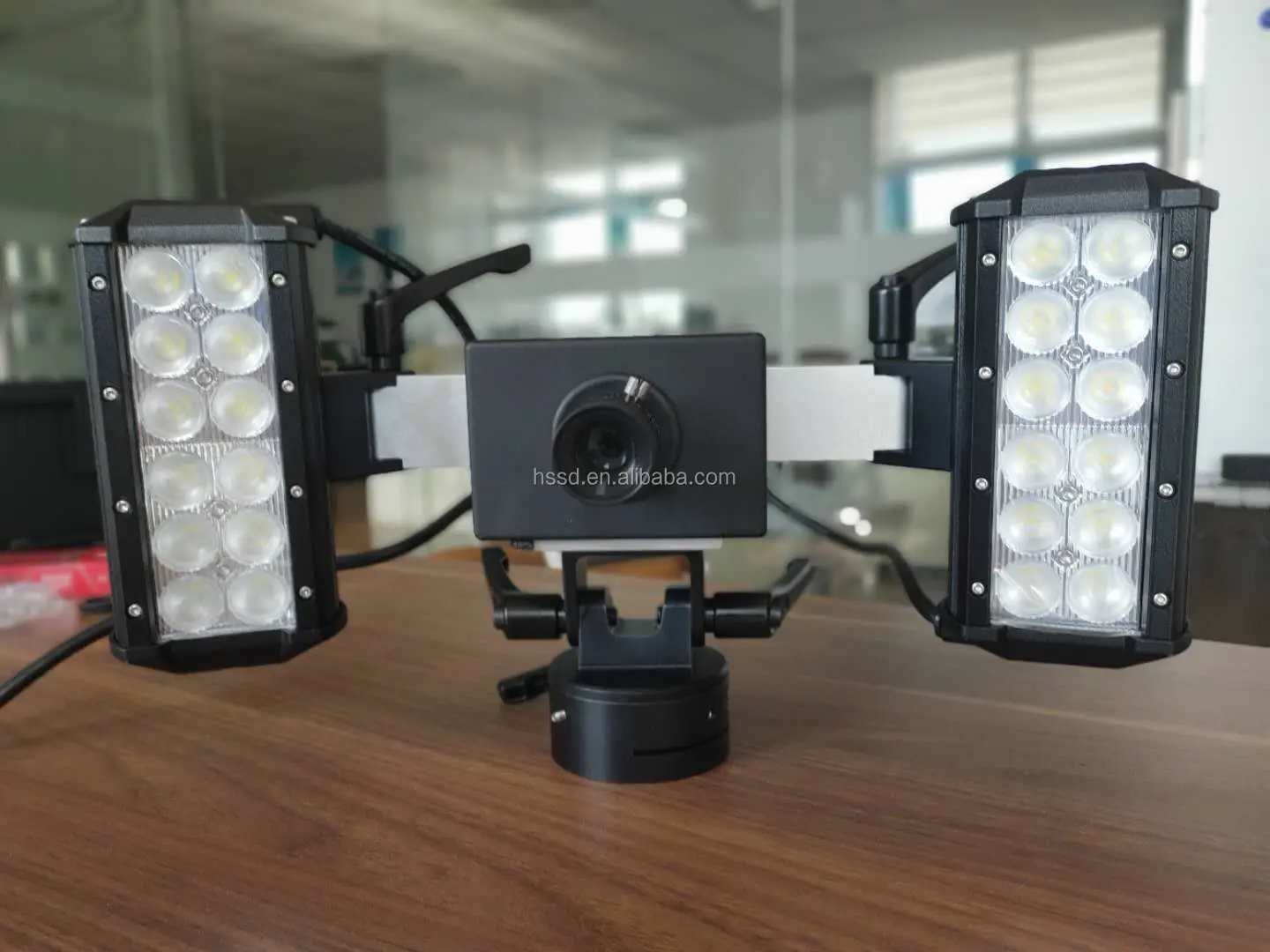

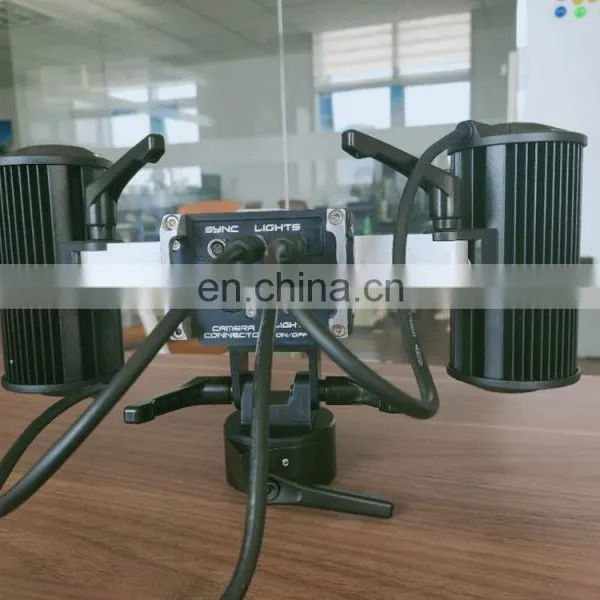

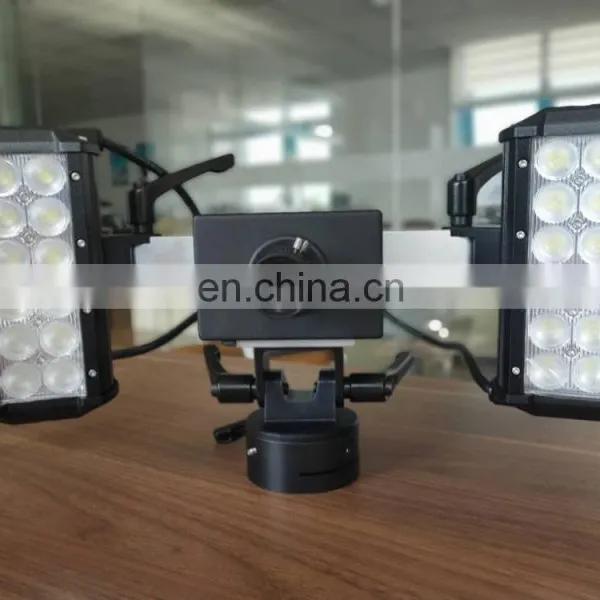

RTTS Video Extensometer
RTTS Video Extensometer is an optical non-contact type three-dimentional deformation measuring system based on DIC (Digital Image Correlation)measurement method. It can accurately measure the 2D 3D strain property of materials and components
Product Description
Application Range
1、 Tensile test for bar specimen at 1000℃
2、Tensile test for smaller metal sheet with 12mm gauge length
3、Tensile test for film specimen
4、Tensile test for plastic specimen with dual camera system（Stitched Scene）
5、Poisson’s ratio measurement for carbon fibre composite with dual camera system
6、Three point bending test for wooden specimen
Features
· Non-contact
· High temperature
· Material independent
· High speed
· Geometry independent
· Connectivity to large number of test rigs types
· 2D and 3D measurement
· Smallest to largest object sizes
· Mobile and flexible
· Smallest to largest deformations
· High accuracy
· Easy specimen preparation
· Video stroboscopic functionality (synchronization with periodic phenomena)
· Customizable export formats
Specifications
Parameters |
Range |
Typical system |
Classification to ISO 9513 |
Class 0.2, 0.5, 1, 2, - |
Class 1 |
Classification to ASTM E 83 |
Class A, B-1, B-2, C, D, E |
Class B-1 |
FOV |
2-2000mm |
60mm |
Gage length |
0.01-800 % |
0.01-10 % |
Digital output |
RS232/422/485, TCP/IP |
TCP/IP |
Details Images

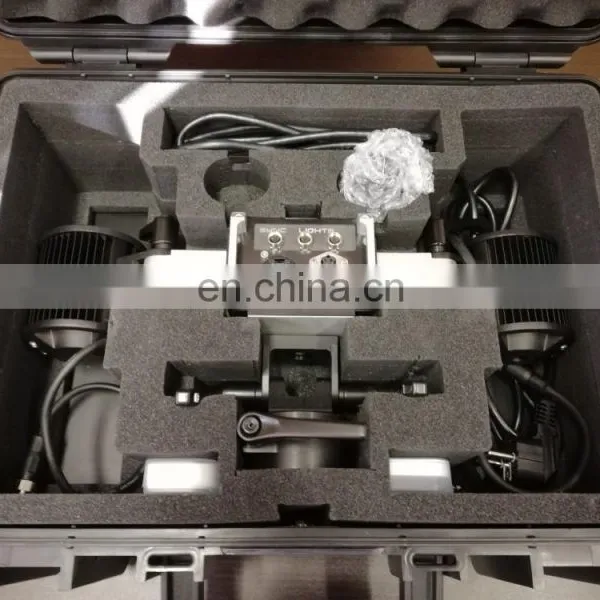

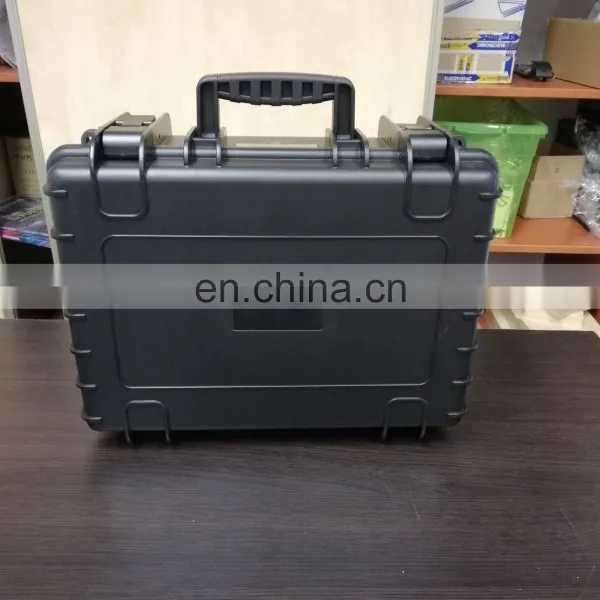

Package & Shipment
