1kn, 2kn, 3kn Spring Fatigue Test Machine/ Spring Fatigue Tester
1. Usage
Spring Fatigue Testing Machine is mainly used to test the fatigue performance of various torsion springs.
2. Features
1) the torsion angle and frequency are adjustable;
2) the machine will stop automatically when reaching the preset testing times;
3) full digital display of the times, frequency;
4) easy operation, smooth running, safe and reliable.
3. Main technical parameters
Model | TPL-A |
Max. testing force | 1kN/2kN/3kN |
Max. length of samples | 200mm |
Max. external diameter of samples | Dia 100mm |
Testing frequency | 0-5Hz |
Amplitude | Max.:50mm or 100mm |
Counter capacity | 999999999 |
Testing station | Depending on the size and force of spring |
Power supply | 220VAC 50Hz |
Motor output torque | 12Nm, 40Nm |
Count-stop accuracy | 1 |
Dimension | 800 x 500 x 450mm |
Weight | 150kg |
Protect function | Double protection of mechanical, procedure |

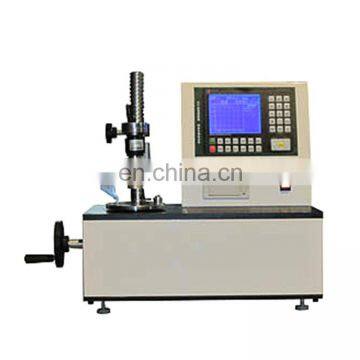

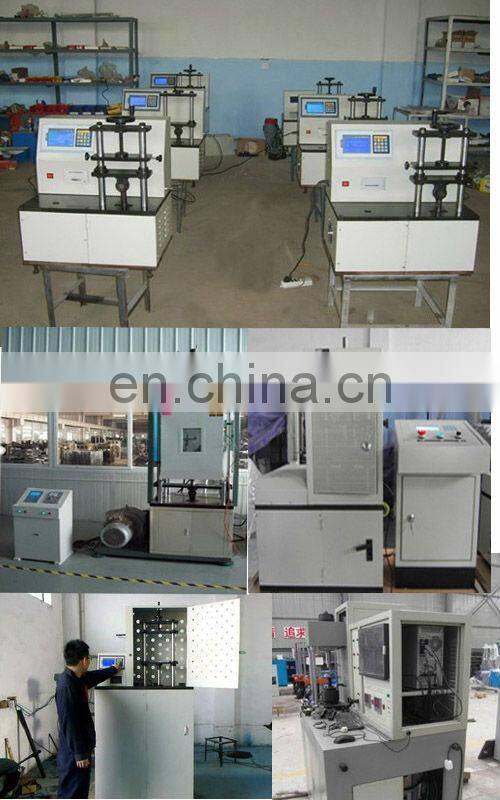

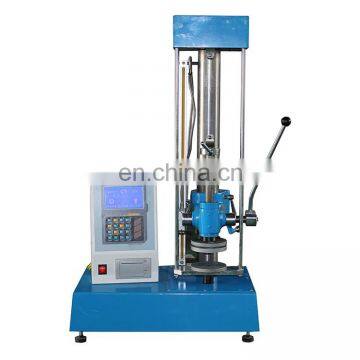

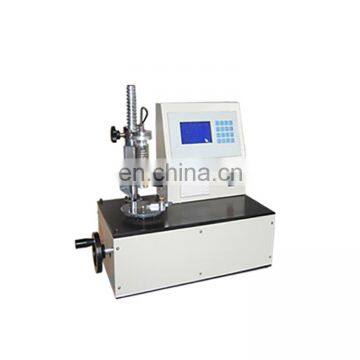

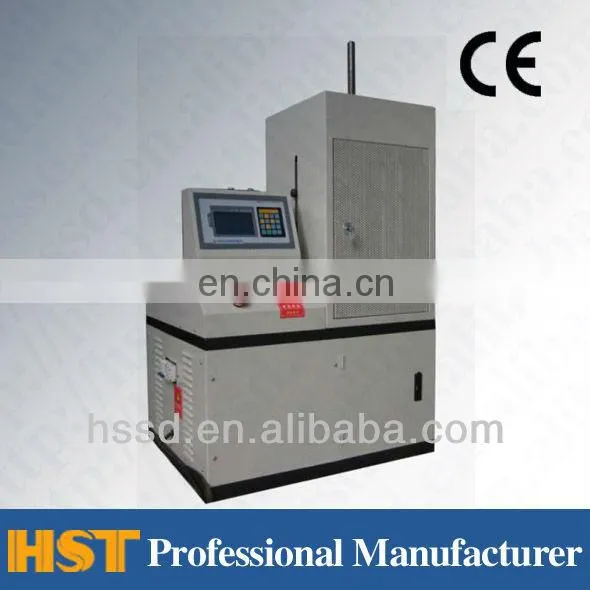

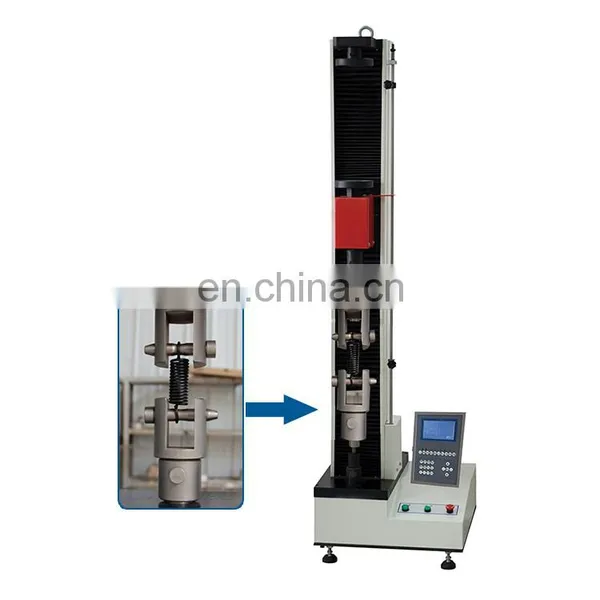

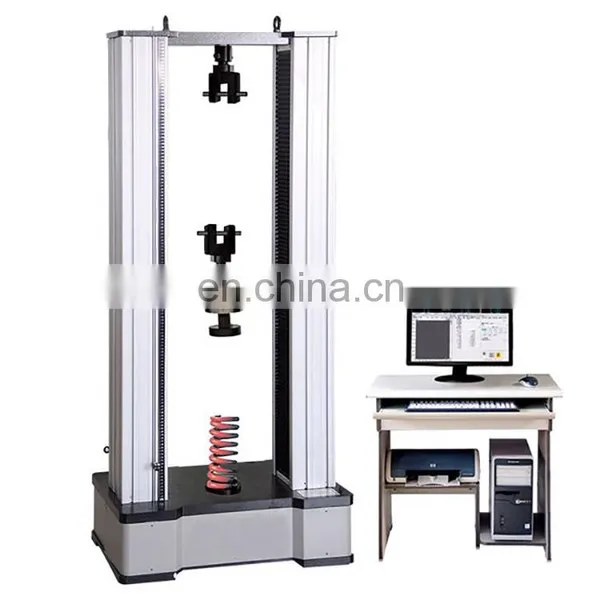

Detailed pictures:
