20kN Spring Testing Machine + Spring Load Test +Spring Tester

20kN Spring Testing Machine + Spring Load Test +Spring Tester photo-1

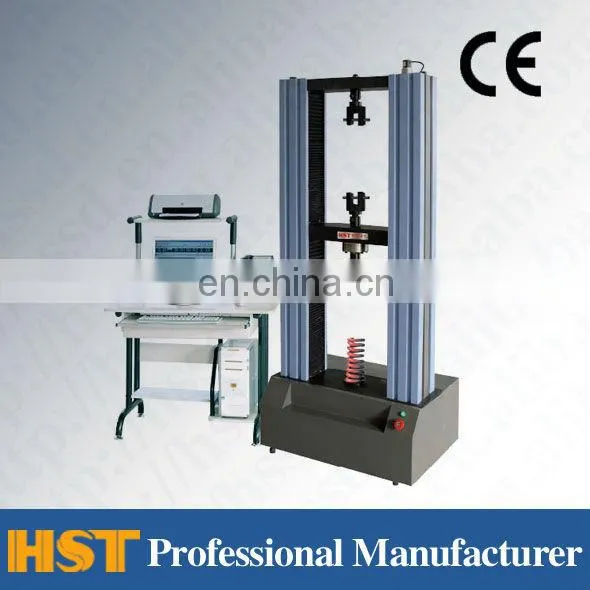

20kN Spring Testing Machine + Spring Load Test +Spring Tester photo-2
US$ 999 - 5,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
hensgrand
Place of Origin:
Shandong, China
Model Number:
TLW-20
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name hensgrand
Place of Origin Shandong, China
Model Number TLW-20
Power Electronic

TLW computer control spring tension and compression tester



Application:

This machine mainly used for tension spring,compression spring, saucer reed,tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring,mould spring,deformed spring and other precision spring tensile,compression,displacement and rigidity test and analysis.



Main specification:

Model

TLW

Max testng force

10KN,20KN,50 KN

Testing force range

2%-100%

accuracy

±1%

Displacement resolution

0.01mm

Displacement mesure accuracy

± 1%

Tesnsile space

700mm or more

Compression space

700mm or more

Testing space

 700mm

Add load speed

0.05mm~500mm

Displacement speed control accuracy

± 1%

Tester level

1 calss

Deformation indicating error

≤±( 50+0.15L)

Power supply

220V/50HZ



Main features:

1. Adopt LSI circuit,improving the testing accuray.

2.Spring testing special program,designed according to the national standard,high efficiency full function,easy operation.

3.Optimize from both mechanical design and program software,increase the measurement scope.

4.Suitable for spring batch testing, sorting lines, also suitable for precision sampling of laboratory samples

5.Data and curves dynamic display with experimental process

6.Can reanalysis of curves, can enlarge, shrink and click to see the corresponding      data on the datacurve

7.You can print the curve and other data of force value, deformation and stiffness like standard test report.

8.With mechnical and program control Two level limit protect function

  20kN Spring Testing Machine + Spring Load Test +Spring Tester 20kN Spring Testing Machine + Spring Load Test +Spring Tester

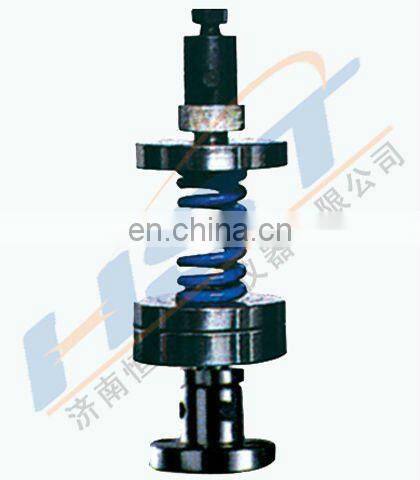

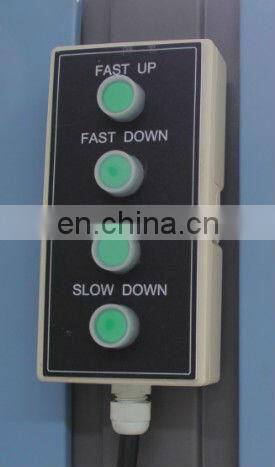

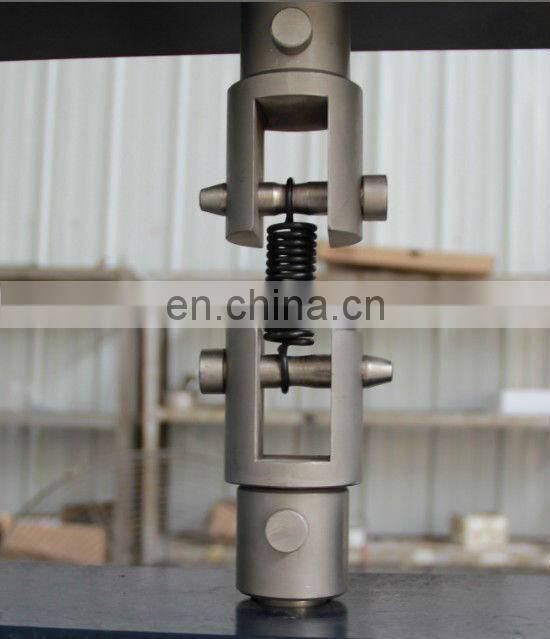

Fixture picture:                                         Hand control box:







20kN Spring Testing Machine + Spring Load Test +Spring Tester 20kN Spring Testing Machine + Spring Load Test +Spring Tester

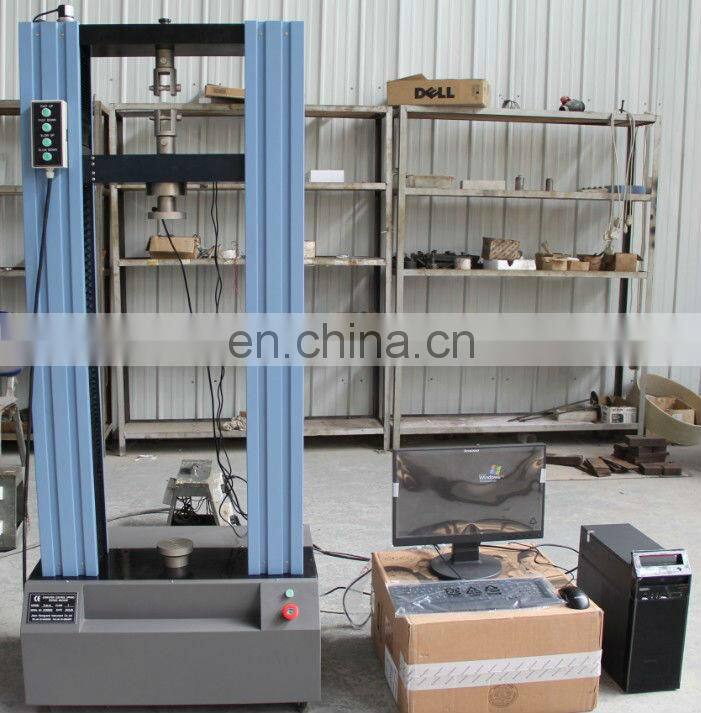

Main unit:



20kN Spring Testing Machine + Spring Load Test +Spring Tester
