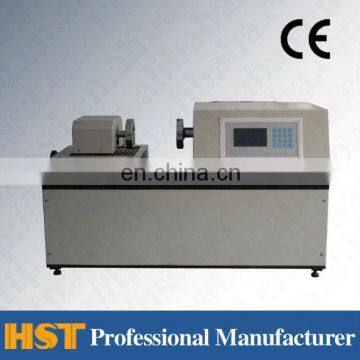

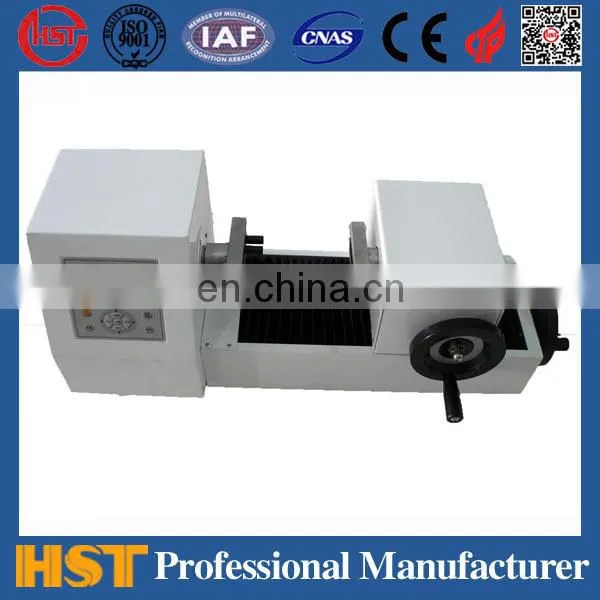

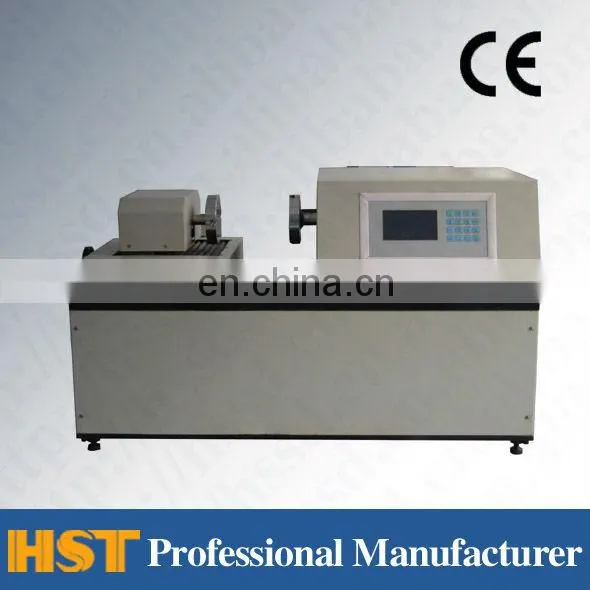

Help CenterDigital Display Torsion Spring Torque Testing Machine, Spring Tester
Related Products
-
Torsion Spring Slingshot Fatigue Testing MachineUS$ 500 - 5,000MOQ: 1 Set -
Computer Numerical Digital Control Spring Testing Machine 50KNUS$ 500 - 3,000MOQ: 1 Set
-
500N or 50KG Spring Tension and Compression Load Universal Test MachineUS$ 990 - 2,100MOQ: 1 Set
-
TLS-S Digital Display Manual Loading Spring Machine/srping Tester/spring Testing MachineUS$ 1,500 - 2,000MOQ: 1 Set
-
5000N Digital Display Spring Extension And Compression Tester +Spring Load TesterUS$ 500 - 500MOQ: 1 Set
Horizontal Auto Spring Torsion Testing Machine
Application:
This machine is mainly applicable to do torsion test for various torsion spring, disc spring, volute spring, ect. Under certain rotor angle , to test spring torque, or under certain torque, to test spring rotor angle. Also used for torsion test of other elastic element and friction mechanism. Widely used by spring factory, electric equipment manufacture, power machinery factory, colleges and universities and scientific research, etc.
Standard:
JB/T 9370-1999,JJG 269-2006 torsion test standard and material testing method,
ISO,JIS,ASTM,DIN and other international standard
Main technical parameter:
Item | Specification | |||
Type | Horizontal | |||
Test class | 1 class | |||
Model | TNZ- S500 | TNZ- S1000 | TNZ- S2000 | TNZ- S5000 |
Max test torque (N/M) | 500 | 1000 | 2000 | 5000 |
Mini spring measuring value(N/M) | 0.1 | 0.1 | 0.1 | 0.1 |
Max torsion rotor angle measuring value(°) | 9999.9 | |||
Mini torsion rotor angle measuring value(°) | 0.1 | |||
Test force accuracy | ≤±1.0% | |||
Angle measurement accuracy | ≤±1.0% | |||
Deformation accuracy | ≤±(50±0.15) L | |||
Max distance between torque platen (MM) | 200MM | |||
Working voltage | AC220V±10%, 50HZ | |||
Features:
1. Digital display torsion torque, angle
2. With function of peak value
3. With function of overload protection
4. With function of stiffness calculation
5. With function of printing test result
6. Spin left or right arbitrary choice, easy operation, fast test, convenient clamping
7. Auto type spring torsion testing machine with electronic hand wheel
