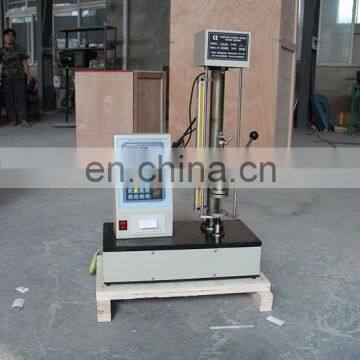

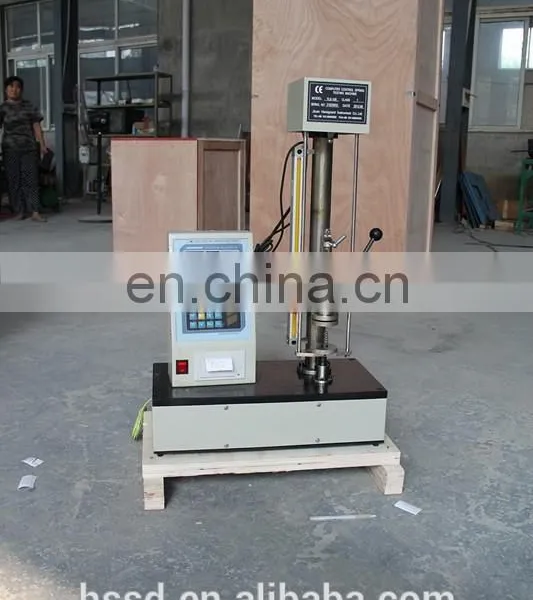

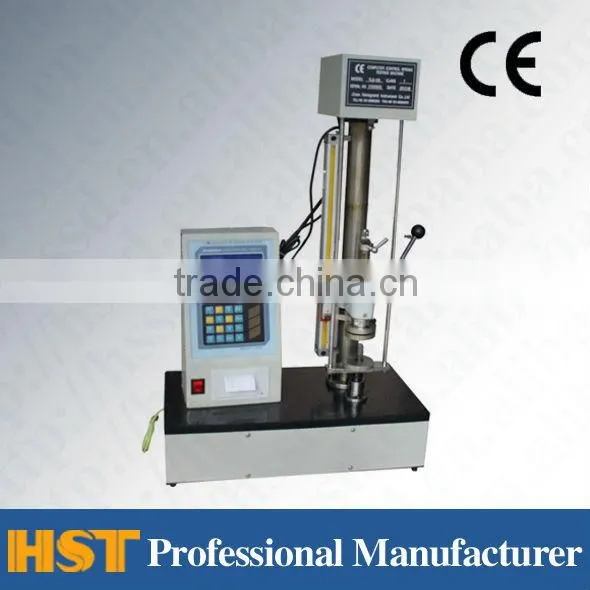

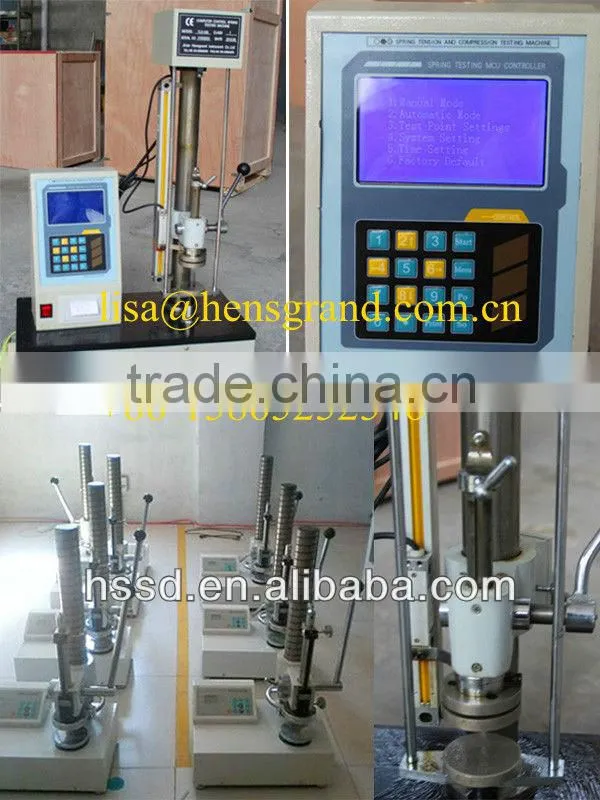

TLS-S manual spring tester
Application:
This machine is based on the country's spring and compressive tester standards of technical requirement is made, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Can the compression spring, dish above precision extension spring, spring, spring, leaf-spring tower, card of spring, spring, spring, composite, gas springs, die spring, and special spring precision tension of the spring, stress, displacement, stiffness and strength test and analysis.
Main specification:
Model | TLS-S | |||||
Max test froce(N) | 50 | 100 | 200 | 500 | 1000 | 2000 |
Test froce accuracy(N) | 0.005 | 0.01 | 0.02 | 0.05 | 0.1 | 0.2 |
Displacement accuracy (mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Tensile test max distance between two pressure plate(mm) | 220 | 220 | 220 | 220 | 270 | 270 |
Compression test max distance between two pressure plate(mm) | 220 | 220 | 220 | 220 | 270 | 270 |
Plate size(mm) | 60 | 60 | 60 | 60 | 110 | 110 |
