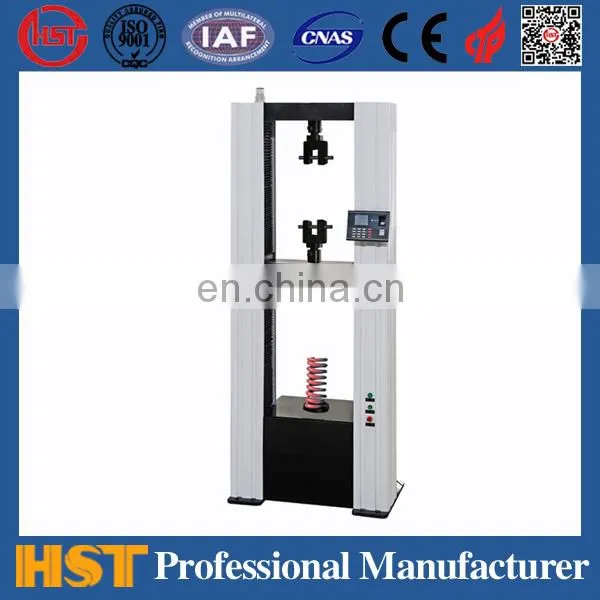

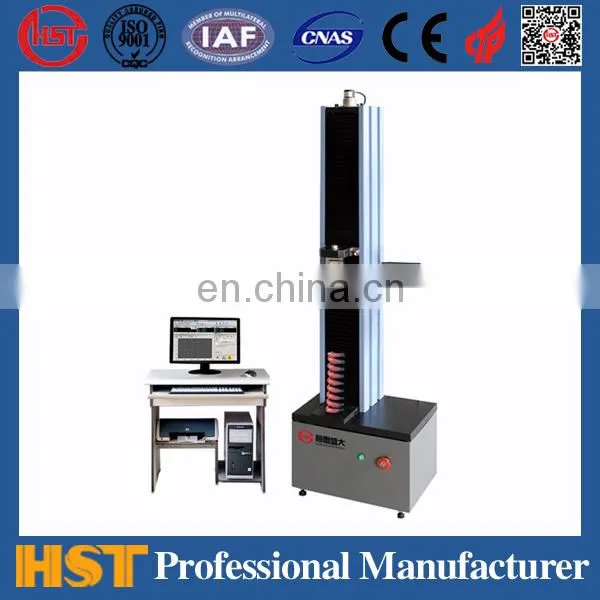

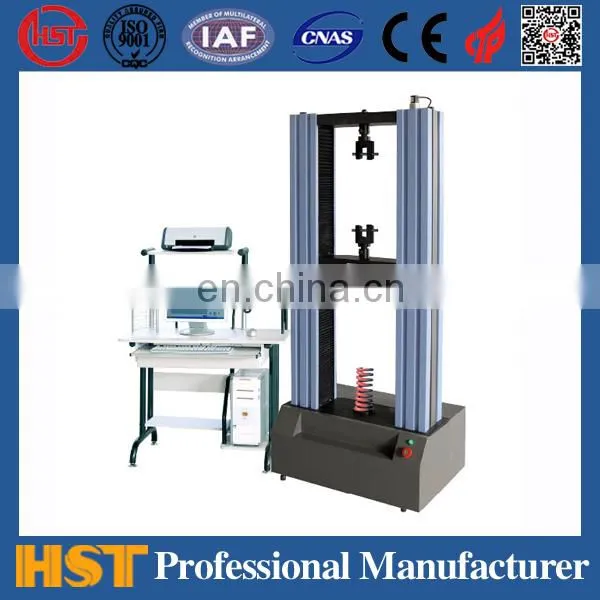

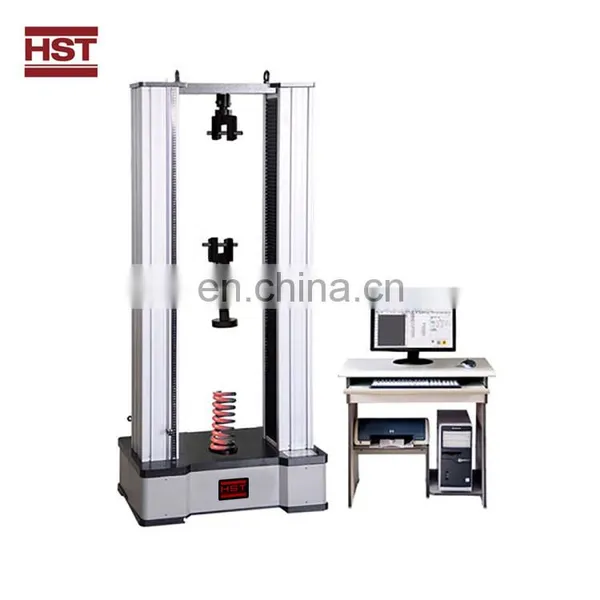

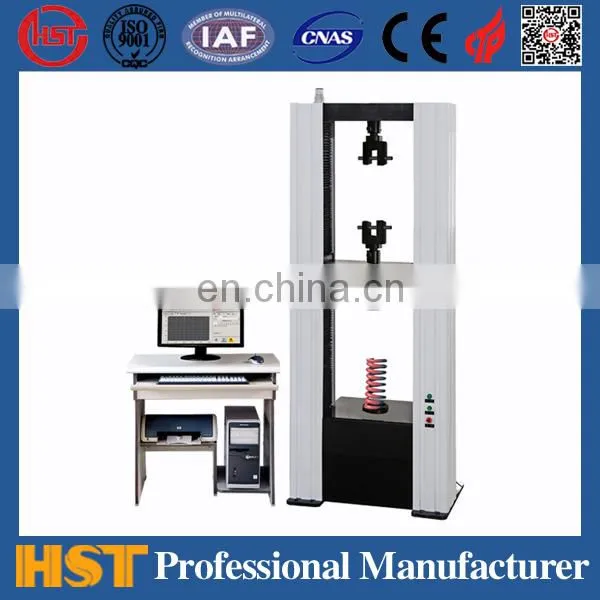

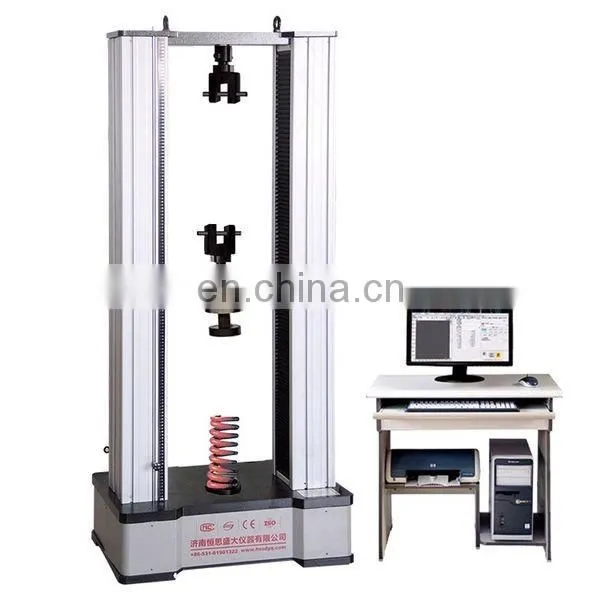

TLS Series Digital Display Spring Tensile Compression Tester/Single Column
1.Application:
This machine is made based on the national spring tensile and compression tester standards of technical
requirement, professional design of automatic control and data acquisition system, realized the data
acquisition and control process full digital adjustment. Mainly used to tension spring,compression spring,
saucer reed, tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring,mould spring,
deformed spring and other precision spring tensile,compression,displacement and rigidity test and analysis.
2.Technical Parameter:
Model | TLS-100 | TLS-200 | TLS-500 | TLS-1000 | TLS-2000 |
Max Testing Force | 100 N | 200 N | 500 N | 1000 N | 2000 N |
Tester Level | 1 Class (0.5 Class Optional) | ||||
Testing Range | 2%-100%FS | ||||
Min. Resolution Of Displacement | 0.01mm | ||||
Tensile Test Distance Between Two Pressure Plate | 750mm | ||||
Compression Test Distance Between Two Pressure Plate | 700mm | ||||
Pressure Plate Diameter | Ø100mm | Ø100mm | Ø100mm | Ø100mm | Ø100mm |
Speed | 0.05mm/min~500mm/min (Arbitrary Set ) | ||||
Accuracy | ±1% | ||||
Deformation Indicate Error | ≤±(50+0.15L) | ||||
Power Supply | 220V/50Hz | ||||
3.Feature:
3.1.Load display mode: Digital display with indication functions at upper & lower limit.
3.2.Displacement display mode:Staff gauge & vernier indication,with micro-adjusting function.
3.3.Loading mode: Manual loading, quick and convenient, displacement control through
positioning devices.
3.4.Overload protection: Digital cell glittering in case of over test load. (auto stop in case
of mechanically overload).
4.Configuration:
1.Host Machine | 1 Set |
2.Transmission (Gear Rack) | 1 Suit |
3.High Precision Weighing Transducer | 1 Piece |
4.High Precision Displacement Sensor | 1 Piece |
5.Digital Display Table | 1 Suit |
6.Printer | 1 Set |
7.Tensile Attachment | 1 Suit |
8.Compression Attachment | 1 Suit |
9.Instruction Book | 1 Piece |
10.Certification | 1 Piece |
11.Packaging List | 1 Piece |
12.Guarantee Book | 1 Piece |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
