universal hardness tester
HBRV-187.5 Micro Manual multipurpose Brinell Rockwell Vickers Hardness Tester
Applications:
It serves the purpose of measuring the hardness of ferrous, non-ferrous metals, hard metals, carburized layers and chemical treated layers.
The Universal version enables the execution of Rockwell standard(150-60-100kgf) Brinell (31.25-62.5-187.5kgf)and Vickers tests (10-30-60-100kgf).
The microscope together with the instrument allows fast and reliable measurements of Brinell and Vickers indentations both in the analogue and digital version.The digital version permits to determine the hardness value in the fast and easy way.
Specifications:
Preliminary test force(N): 98
Rockwell hardness test (N): 588, 980.7, 1471 (HRA, HRB, HRC)
Brinell hardness test (N): 294.2, 306.5, 612.9, 980.7, 1839(HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5, HBW10/100, HBW2.5/187.5)
Vickers hardness test( N): 294.2, 980.7( HV-30, HV100)
Magnification of microscope: 37.5X,75X:
Duration time: 2-60s
Max height of specimen(mm): 170mm for Rockwell; 140mm for Brinell and Vickers
Max depth of Throat (mm): 165
Dimensions(mm): 520X215X700
Power Supply: AC220V 50/60Hz
Net weight(kg): 90
Standard delivery:
Accessory box of main body
Diamond Rockwell indenter
Diamond Vickers indenter
Φ 1.5875mm hard metal ball indenter
Φ2.5mm,5mm hard metal ball indenter
Standard Rockwell hardness block
Standard Vickers hardness block
Standard Brinell hardness block
Testing table(big, medium,"V")
Weight1,2,3,4
Weight 0
Fuse 0.5A
6V-15F Lamp (6V/15W)
Power cord
Plastic anti-dust bag
Product operating manual
Contrast sheet of metal Vickers Brinell hardness
Microscope seating
15X micrometer eyepiece
2.5X objective
5X objective
Baffle testing table
Vickers testing table
"V" testing table
Lamp adapter
Lampshade
Lamp (6V/15W)

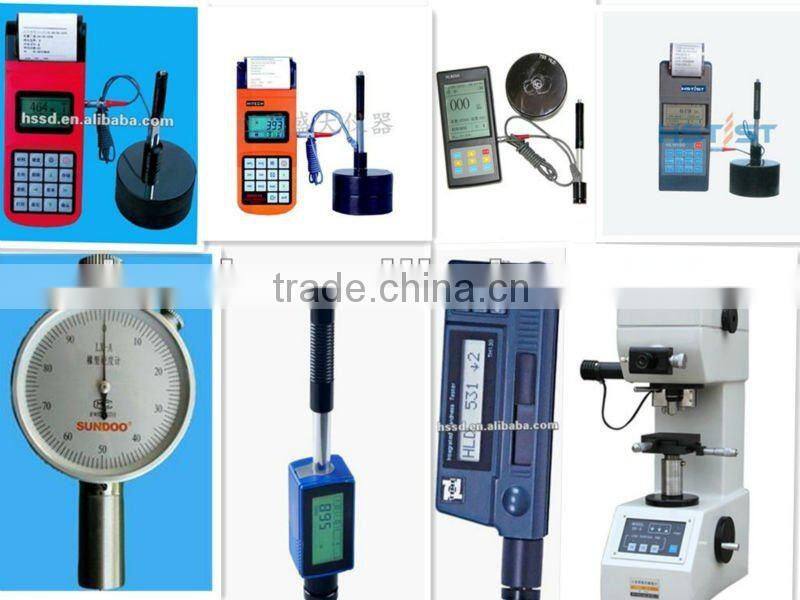

hardness tester collection:
factory:
CE certificate:
