TH130 portable Leeb hardness tester
Techmnical parameter
Model | TH130 |
Impact device | D integrated |
Hardness scales | HLD, HB, HRC, HRA, HV, HS |
Accuracy | ±6HLD(760 ±30HLD) |
Memory | 99 average readings |
Output | RS232 to printer |
Average Surface Roughness of Work piece | 1.6μ ( Ra) |
Max. Work piece Hardness | 900HLD |
Min. radius of Work piece (convex/concave) | Rmin = 50mm (with support ring Rmin= 10mm) |
Min. Work piece weight | 2~5kg on stable support 0.05~2kg with compact coupling |
Min. Work piece thickness coupled | 5mm |
Min. Thickness of hardened layers | 0.8mm |
Indentation depth | Impact Devices data |
Continuous working time | 60 h |
Power | Rechargeable Li-Polymer batteries |
Operating temperature | 0~40°C |
Overall dimensions | 155×24×55mm |
Weight | 180 g |
Features:
♦ Impact size, easy operation.
♦ Wide measuring range in HLD, direct display of converted hardness values in HB, HRB,HRC,HRA, HV, HS
♦ High applicability, can be used for hardness testing of most metals.
♦ Test at any angle even upside down.
♦ Optional printer TA230 available
♦ Easy measurements on large & heavy workpieces
♦ Measuring for confined spaces of large workpieces
♦ TH130: integrated with D impact device for normal hardness testing
Standard Configurations:
1. Main unit
2. Test block with HLD value
3. Charger
4. Cleaning brush
5. Protection pocket
6.Accomany documents

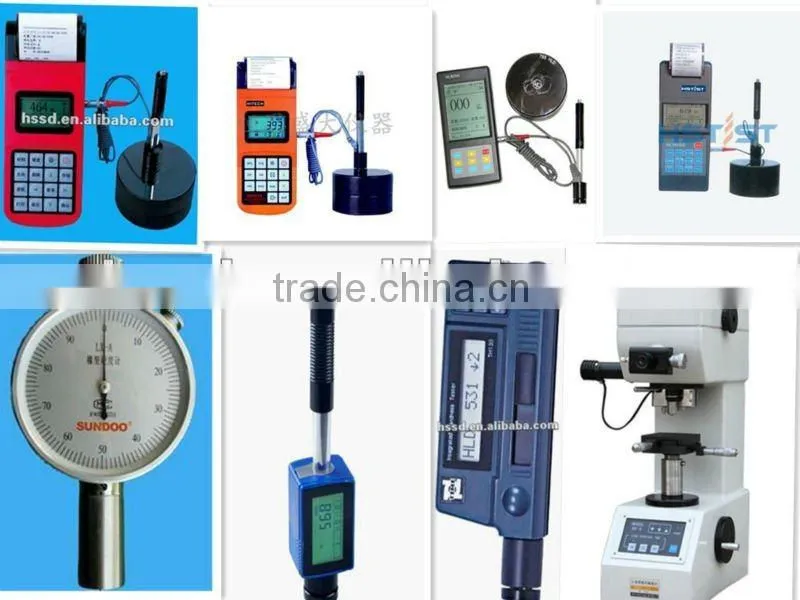

Hardness tester collection:

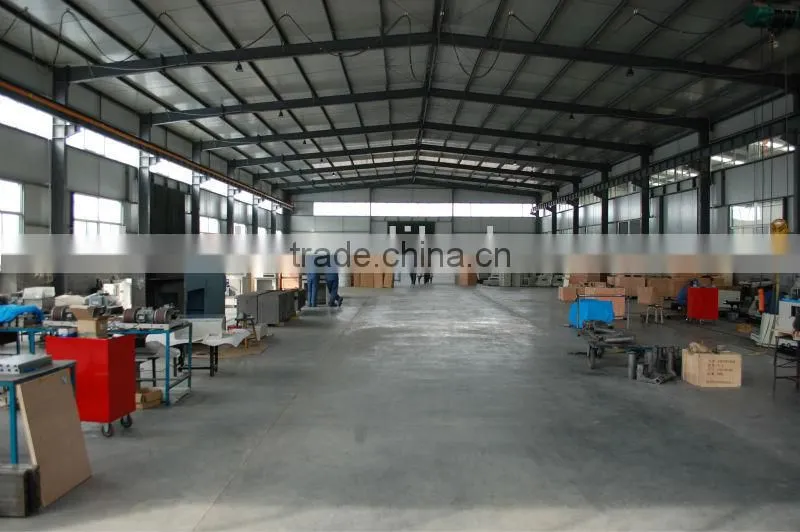

Workshop scene:
