Portable Hammer Impact Brinell Hardness Tester PHB-1
Specifications
Hammer Impact Brinell Hardness Tester can be used for testing the hardness of large-size, unable-to-cut forgings, castings etc.
Features

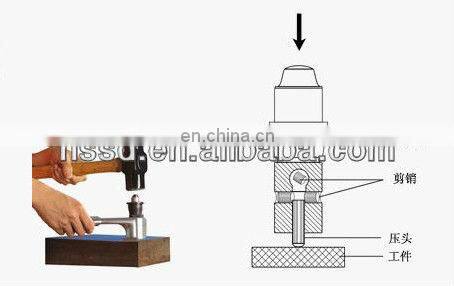

Accurate and consistent test force, controlled by precision shear pin. Works in static type and hammer impact type and follows Brinell hardness test method.
According to the similarity principle of Brinell hardness test, this tester has 1580kg test force, 7.26mm spherical indenter, F/D2=30. The test condition is equivalent to the commonly used 3000kg test force, 10mm ball condition.
High accuracy and repeatability; tested by National Institute of Metrology with tolerance less than ±3%. The accuracy meets the requirements of ISO 6506 and is no lower than that of the bench Brinell hardness tester.

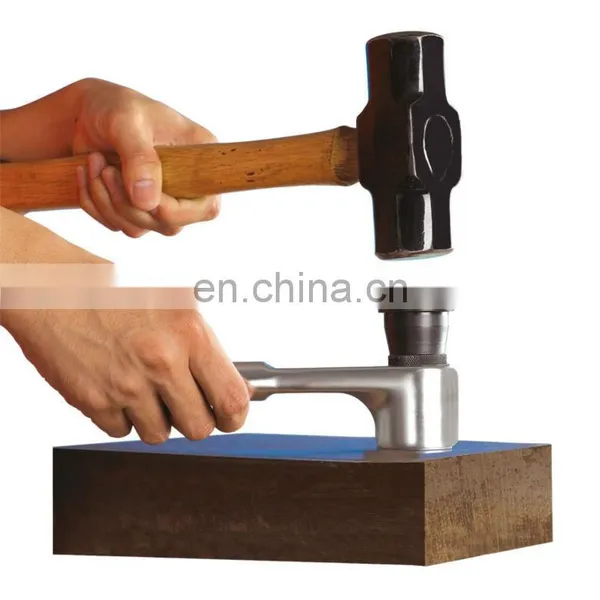

Easy, quick and simple operation. Static type for testing medium and small size workpieces; hammer impact type for testing large workpieces.

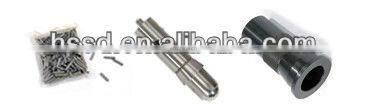

Only one inexpensive shear pin is consumed in each test.
Good choice to replace Leeb hardness tester and Poldi type hammer impact hardness tester with lower accuracy.
Main Technical Parameters
Test Force: | 1580kg |
Error of test: | < 5% |
Indenter: | 7.26mm steel ball indenter |
Test range: | 100~350HB (extendable to 100~650HB) |
Indentation reading resolution: | 0.01mm |
Microscope: | 20X |
Net Weight: | 2.3kg |
Package Gross Weight: | 3.8kg |
Package Dimensions: | 390mm×280mm×160mm |
Standard Package
Test head
7.26mm steel indenter
Indenter head holder
Bag of shear pins (250 pcs)
Support handle
Brinell test block
Pin removal tool
20x reading microscope
Carrying case
Optional Accessaries
7.26mm steel indenter
4.0mm carbide indenter
Test head
Shear pins (bag of 250 pcs)
Brinell test block
Dome anvil
40x reading microscope
3 lb hammer
