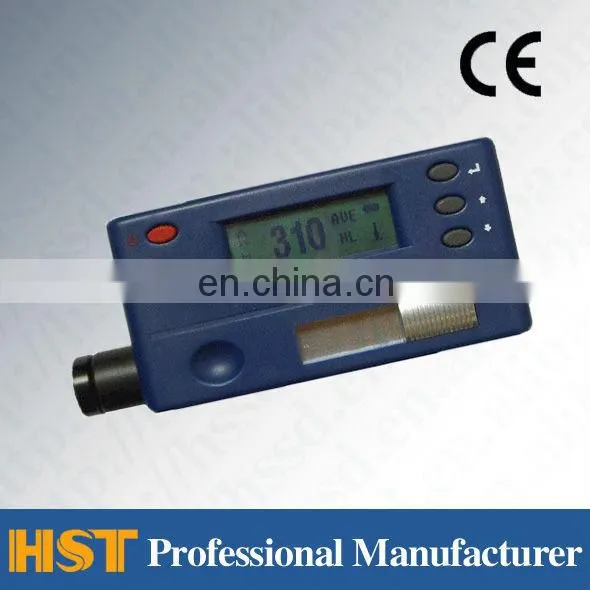

Hensgrand HS100 portable aluminum hardness tester
1.Features:
lCustomaries curve for a specific testing material
lLCD display of 128×32 matrix with Backlight
lConverts to all common hardness scales(HV ,HB,HRC,HRB,HRA,HS).
lEasy to use Menu driven system
lWith USB interface, multiple communication modes are adopted to meet customized requirements of various users.
lMax 1000 groups of data can be stored in memory.
lUpper and lower limit of hardness can be preset; with alarm
lTest values software calibration function.
lWorking voltage: 3.7V Rechargeable Li-Ion battery
lContinuous working period: approx. 200 h (no back light on).
2.Specifications:
lMeasuring range: HLD(170~960)HLD
lMeasuring direction: 360°
lHardness scale: HL, HB, HRB, HRC, HRA, HV, HS
lDisplay: LCD, 128×32 matrix LCD
lData memory: up to 1000 groups
lRange of upper and lower limit: the same as measuring range
lRechargeable Li-Ion battery with no memorability
lContinuous working period: approx. 200 h (no back light on)
lCommunication interface: USB
lAccuracy and repeatability of displayed value, see table 3.
vDimension size and weight:
Dimension 142×80×39mm (main unit)
Weight approx. 0.5kg (main unit)
Hensgrand HS100 Portable Hardness Tester
vMain Application and Testing Range:
Main Application
lThe assembled machinery and permanently installed parts
lDie cavity of molds
lHeavy work piece
lFailure analysis of pressure vessel, steam turbo-generator set and other large equipment
lTesting of parts in confined areas or on gear teeth
lBearings and other parts
lMaterial identification of the metal material warehouse
Testing Range
Testing range see table 1. table 2
Table 1
Material |
Hardness Scale |
||||||||||
HRC |
HRB |
HRA |
HB |
HV |
HS |
||||||
Steel and cast steel |
17.9~68.5 |
59.6~99.6 |
59.1~85.8 |
80~651 |
83~976 |
32.2~115 |
|||||
Hammered steel |
|
|
|
143~650 |
|
|
|||||
Cold work tool steel |
20.4~67.1 |
|
|
|
80~898 |
|
|||||
Stainless steel |
|
46.5~101.7 |
|
85~655 |
85~802 |
|
|||||
Gray cast iron |
|
|
|
93~334 |
|
|
|||||
Nodular cast iron |
|
|
|
131~387 |
|
|
|||||
|
Cast aluminum alloys |
|
23.8~84.6 |
|
19~164 |
|
|
|||||
Brass(copper-zinc alloys) |
|
13.5~95.3 |
|
40~173 |
|
|
|||||
Bronze (copper-aluminum/copper-tin alloys) |
|
|
|
60~290 |
|
|
|||||
|
Wrought copper alloys |
|
|
|
45~315 |
|
|
|||||
Hensgrand HS100 Portable Hardness Tester
Hensgrand HS100 portable aluminum hardness tester
