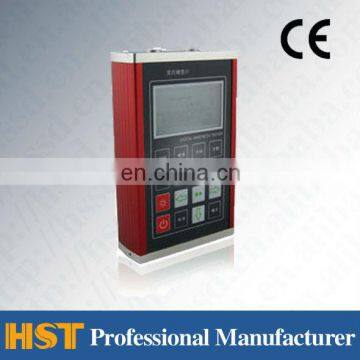

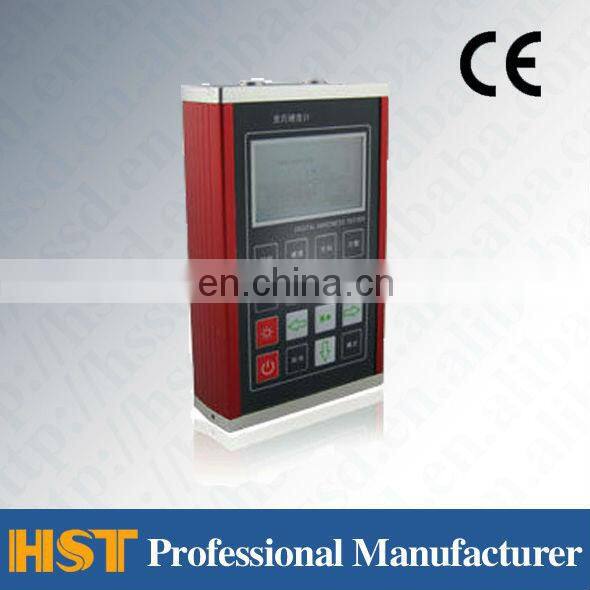

HS210 Portable Hardness Tester/Digital Portable Hardness Tester/gemstone hardness tester
Advantages
u The measurement of material
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel test characteristic
u Palm size for narrow space.
u Large screen LCD, showing all functions and parameters. With EL background light
u support "forged steel (Steel)" material
u Test at any angle, even upside down.
u Direct display of hardness scales HL, HB, HRB, HRC, HRA, HV,HS.
u Large memory could store 600 groups including single measured value, impact direction, material and hardness scale etc.
u User recalibration function allowed.
u The 5 ordinary batteries, can work continuously for not less than 200 hours
u Can communicate with PC computer for statistics and printing by the optional cable.
u Manual or automatic shut down.
u Low battery indication.
Main Application:
l Die cavity of molds.
l Bearings and other parts.
l Failure analysis of pressure vessel, steam generator and other equipment.
l Heavy work piece.
l The installed machinery and permanently assembled parts.
l Testing surface of a small hollow space.
l Material identification in the warehouse of metallic materials.
l Rapid testing in large range and multi-measuring areas for large-scale work piece.
Technical Specifications
Measuring Range | HLD(170-960) (170-960)HLD,(19-651)HB,(13-100)HRB,(17-68.5)HRC,(59-85)HRA,(80-976)HV,(30~110)HS |
Impact Directions | up,down,horizontal,slanting up,slanting down |
Measuring materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel |
Hardness scales | HL, HB, HRB, HRC, HRA, HV,HS. |
Display | 128*64 digital matrix LCD |
Memory | 600group(32 every group) |
Work voltage | 3V( 2 AA alkaline batteries) |
Interface port | RS232 |
Dimensions | 125mm*71mm*27mm |
Weight | 0.3KG |
Continuous working period | 200 hours (with backlight off) |
Accuracy and repeatability of displayed value:
No. | Type of impact device | Hardness value of Leeb standard hardness block | Error of displayed value | Repeatability of displayed value |
1 | D | 760±30HLD | ±6 HLD | 6HLD |
2 | DC | 760±30HLD | ±6 HLDC | 6HLD |
3 | DL | 878±30HLD | ±12 HLDL | 12HLDL |
4 | D+15 | 766±30HLD | ±12 HLD+15 | 12HLD+15 |
5 | G | 590±40HLD | ±12 HLG | 12HLG |
6 | E | 725±30HLD | ±12 HLE | 12HLE |
7 | C | 822±30HLD | ±12 HLC | 12HLC |

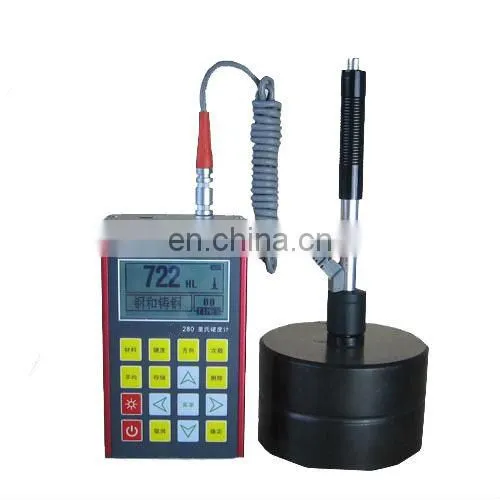

Hand-hold Hardness Tester
Standard configuration:
| No. | Item | Quantity |
Standard Configuration | 1 | Main body | 1 |
2 | D type impact device | 1 | |
3 | Test block with HLD value | 1 | |
4 | Cleaning brush (I) | 1 | |
5 | Instruction manual | 1 | |
6 | Warranty card | 4 | |
7 | Small supporting ring | 1 | |
8 | Screwdriver | 1 | |
9 | Certificate of conformity | 1 | |
10 | Instrument box | 1 | |
11 | 5 alkaline battery | 2 | |
1 | Other types of impact devices | 1 | |
Optional Configuration | 2 | Other types of support ring | 1 |
3 | Other types of impact ball/body | 7 | |
4 | Mini-printer | 1 | |
5 | Data processing software | 1 | |
6 | Connecting line | 1 |
