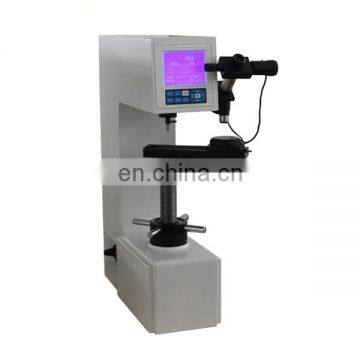

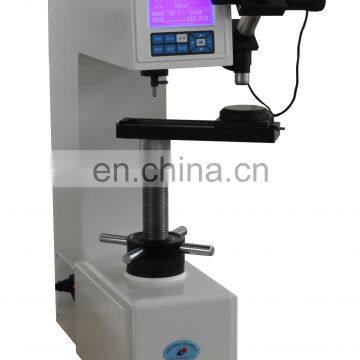

HSHBRV-187.5 Computer Display Brinell & Rockwell & Vickers Universal Hardness Tester
Introduction :
1. THUS-187.5 Brinell & Rockwell & Vickers Universal Hardness Tester can measure the hardness of Brinell, Rockwell, Surface Rockwell, Vickers etc.
2. The computer control the measurement way of hardness tester, handling and calibrate the value of hardness.
3. Automatic load and unload.
4. Measuring the Rockwell hardness, automatically preload. Save the result forever for checking the data.
5. Automatically make inspection report.
Technical Specs:
|
Load application |
Load cell, force feedback, closed loop system |
|
Hardness scales |
Rockwell/Superficial Rockwell, Brinell, Vickers, |
|
Load range |
2.5kgf/24.5N to 187.5kgf/1.84kN |
|
Test loads |
2.5kgf/24.5N, 3kgf/29.4N, 4kgf/39.2N, 5kgf/49N, 6.25kgf/61.29N, 10kgf/98N, 15kgf/147N, 15.625kgf/153.2N, 20kgf/196.13N, 25kgf/245.16N, 30kgf/294.19N, 31.25kgf/306.45N, 45kgf/411.29N, 50kgf/490N, 60kgf/588.4N, 62.5kgf/612N, 100kgf/980.7N, 120kgf/ 1176.79N, 125kgf/1225N, 150kgf/1471N, 187.5kgf/1838N depending on model |
|
Vickers test range |
HV: 3kgf/29.4N, 4kgf/39.2N, 5kgf/49N, 10kgf/98N, 20kgf/196.13N, 30kgf/294.19N, 50kgf/490N, 100kgf/980.7N, 120kgf/ 1176.79N HVT: 50kgf/490N, 100kgf/980.7N(Optional) |
|
Brinell test range |
HB1: 2.5kgf/24.5N, 5kgf/49N, 10kgf/98N,31.25kgf/306.45N HB2.5: 6.25kgf/61.29N,15.625kgf/153.2N, 31.25kgf/306.45N, 62.5kgf/612N, 187.5kgf/1838N HB5: 25kgf/245.16N, 62.5kgf/612N, 125kgf/1225N, 250kgf/2.45kN; HBT2.5: 62.5kgf/612N, 187.5kgf/1838N(Optional) |
|
Rockwell test scales |
A, B, C, D, E, F, G, H, K, L, M, P, R, S, V 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y |
|
Plastic Ball indentation |
Complies to ISO 2039/1 |
|
Optical system RSB |
External Brinell microscope with LED ring light |
|
Optical system AS |
Interchangeable 2.5x, 5x and 10x magnification |
|
Camera |
1280*1080 pixels, 1/2-inch |
|
Scale resolution (depth) |
0.1 micron |
|
Display |
PC |
|
Standards |
Complies to, or exceeds, EN/ISO, ASTM and JIS standards |
|
Test cycles |
Fully automatic, Load, Dwell, Unload |
|
Indentors (optional) |
Rockwell Diamond Cone: 120° Rockwell balls: 1/16“, 1/8“, 1/4“, 1/2“ Vickers Diamond: 136° Brinell/Balls: 1mm, 2.5mm, 5mm, 10mm Some are optional |
|
Dwell time |
1 - 99 seconds |
|
Specimen accommodation |
Vertical capacity: 175mm, Horizontal capacity: 160mm (from center-line) |
|
Machine dimensions |
290mm x 520mm x 720mm (WxDxH) |
|
Machine weight |
76kg |
|
Power supply |
100V AC to 240V AC, 50Hz/60Hz, single phase |
HSHBRV-187.5 Computer Display Brinell & Rockwell & Vickers Universal Hardness Tester
