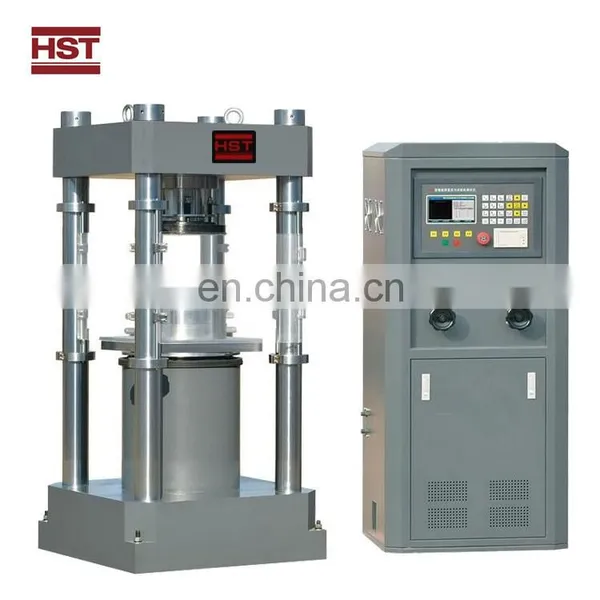

YES Digital Display Compression Testing Machine with CE Certification
1. Application
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institutionlines. The test operation and data processing meets standard requirements.
2. Main Specifications
Model |
YES-1000 |
YES-2000 |
YES-2000D |
YES-3000D |
|
Max. load |
1000kN |
2000kN |
2000kN |
3000kN |
|
Class |
1 class |
1 class |
1 class |
1 class |
|
Testing space regulating way |
Manual ball screw adjust |
Electric ball screw adjust |
|||
Control way |
Manual control load way |
||||
Oil source control cabinet structure form |
One-piece bench oil source control cabinet |
||||
Range of test force |
4% ~100%FS |
||||
Indicating value accuracy |
±1% |
||||
Piston route |
50mm |
50mm |
50mm |
80mm |
|
Max piston speed |
/ |
/ |
50mm/min |
80mm/min |
|
Range between the working tables |
320mm |
320mm |
320mm |
340mm |
|
Pressure plates size |
250*250mm(Can be customized) |
||||
Display |
LCD |
||||
Power supply |
2.1Kw/AC380V |
||||
Detail pictures :
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
The Realistic Pictures of Our Factory:
Our company can also produce the customized testing machines as clients' requirements.Best service and the best price for you.
Most series products have passed CE certificate.
