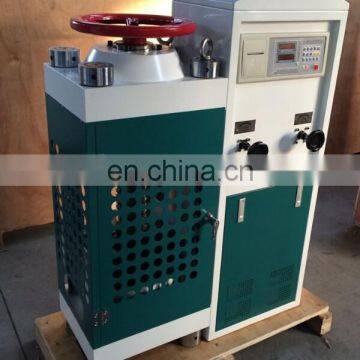

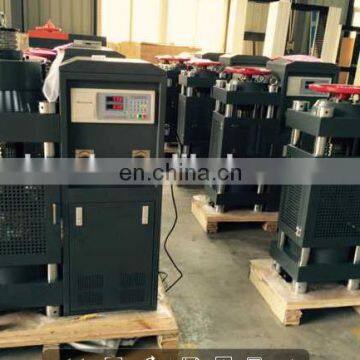

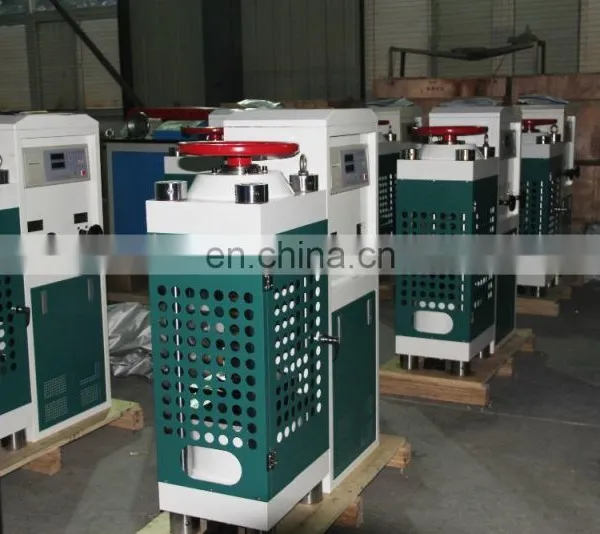

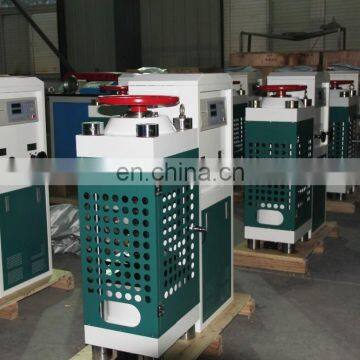

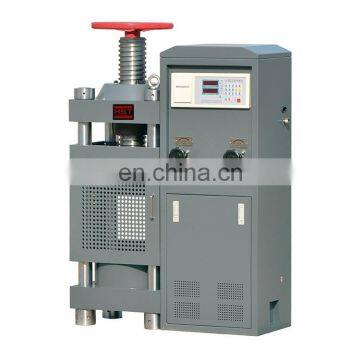

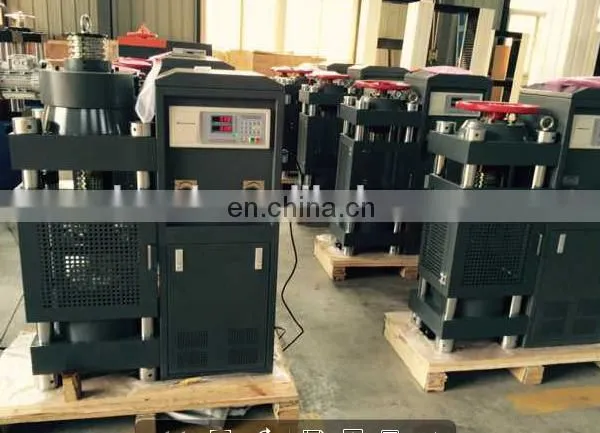

YES-2000 2000kn Manual Concrete Cube Compression Testing Machine
1. Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:
* Structure::mainly composed by main unit, oil source and measuring control system.
* Space adjusting way: through rotating the hand wheel to realize the compression space adjusting
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device:When the test force exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3. Main Specifications
Model | YES-1000 | YES-2000 |
Max test force | 1000kN | 2000kN |
Test space adjusting way | Manual ball screw adjusting | |
Control way | Manual control loading process | |
Accuracy class | 1 class | |
Test force range | 4%~100%F·S | |
Test value accuracy | Better than ±1% | |
Oil cylinder stroke | 50mm | |
Max distance between upper and lower plate | 180mm | |
Max distance between two columns | 270mm | |
Pressure plate | 250×250mm | |
Main unit dimension | 900×400×1150mm | |
Power supply | 1Kw/AC380V | |
Weight | 750Kg | |
YES-2000 YAW-2000D YES-300 YAW-300D
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
