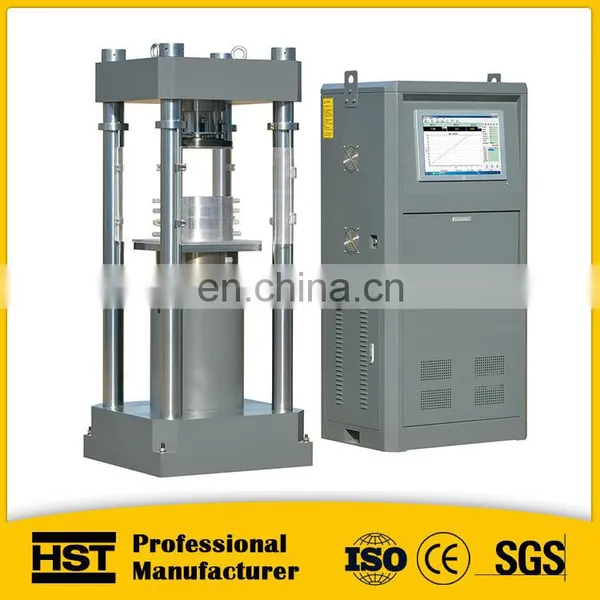

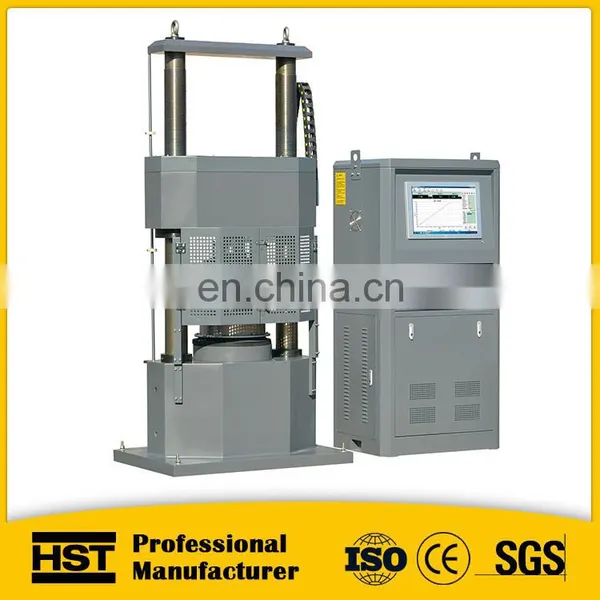

Cement mortar strength automatic pressure compression testing machine
Hydraulic Power Digital Display Compression Testing Machine mainly used for brick, cement, concrete construction material and other material compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Model | YES-2000D | YES-3000D |
Basic Parameter |
| |
Max. Load | 2000 KN (200 TONS) | 3000 KN (300 TONS) |
Piston Stroke | 50mm | 80mm |
Upper Pressure Plates Size | 240*240mm | 265*265mm |
Lower Pressure Plates Size | 300*250mm | 360*285mm |
Compression Space | 320mm | 340mm |
Host Dimension | 950*420*1350 | 1000*500*1500 |
Weight | 800 KG | 1500 KG |
Power | 2.0 KW | |
Load Accuracy | ≤±1% | |
Power Supply | AC 380V, 50Hz (Can Be Custom) | |
Printer | Thermal Micro Printer | |
Printing Paper Size | Wide 57mm | |
Oil Pump Motor Band | SIEMENS Motor | |
Test Control System Parameters | ||
Range Of Test Force | 10%~100% FS (200 KN~2000 KN) | 10%~100% FS (300 KN~3000 KN) |
Force Load Way | Manual Control Load Way | |
Testing Space Regulating Way | Electric Ball Screw Adjust | |
Test Date Display | Dual Row Nixie Tubes For Force and Loading Rate Display | |
Q1:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q2:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q3:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q4:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. Products are widely recognized and trusted by users.
