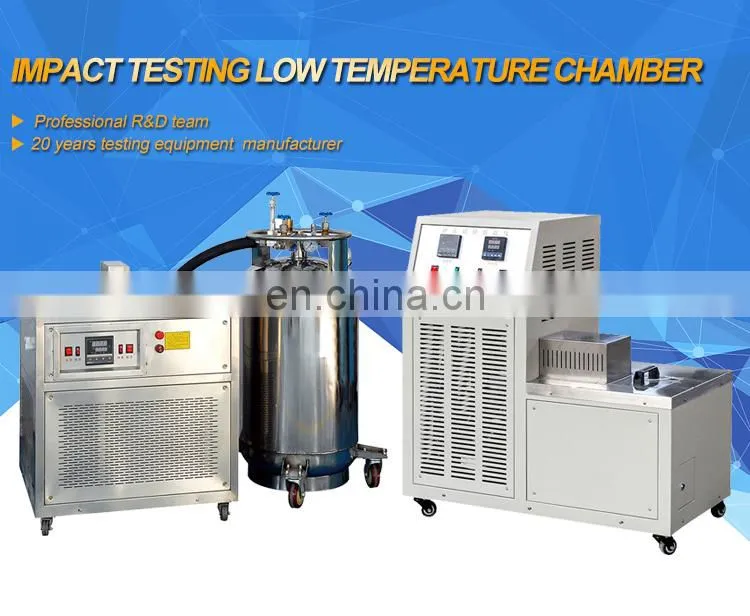

Charpy Impact Test Cooling Chamber for Various Temperature Range
US$ 1,999 - 5,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
hensgrand
Place of Origin:
Shandong, China
Model Number:
DWC-80
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2mm V Notch Cutting Tool for Impact TestUS$ 9 - 599MOQ: 100 Pieces -
JB-300B 150 To 300J HST Charpy Pendulum Impact Testing Machine SupplierUS$ 2,650 - 2,800MOQ: 1 Set
-
JB-300 150 To 300J Manual Charpy Pendulum Impact Testing Machine Tester For SaleUS$ 3,200 - 3,400MOQ: 1 Set
-
JB-300B Charpy Impact Tester+metal Charpy Pendulum Impact Tester +Impact Testing InstrumentUS$ 2,850 - 3,050MOQ: 1 Set
-
ISO148 ASTM E23 JB-500B Impact Testing Machine Impact TesterUS$ 4,900 - 5,500MOQ: 1 Set
Brand Name
hensgrand
Place of Origin
Shandong, China
Model Number
DWC-80
Power
Electronic

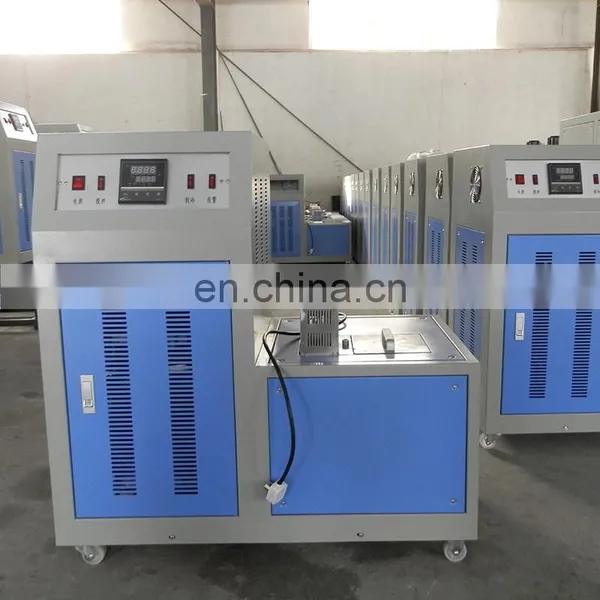

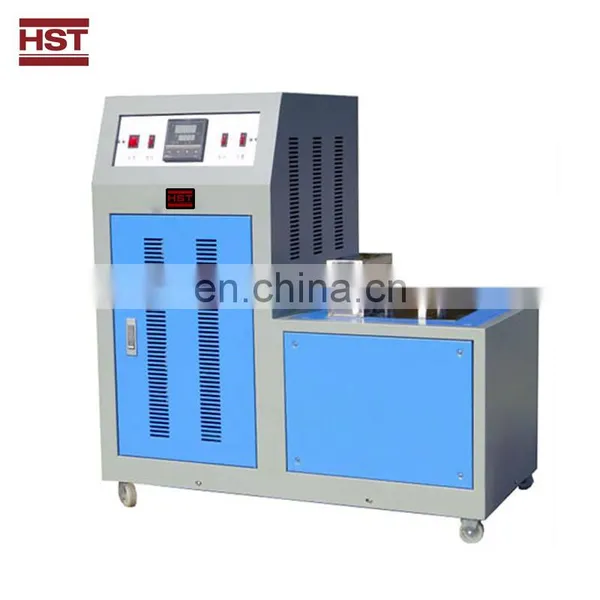

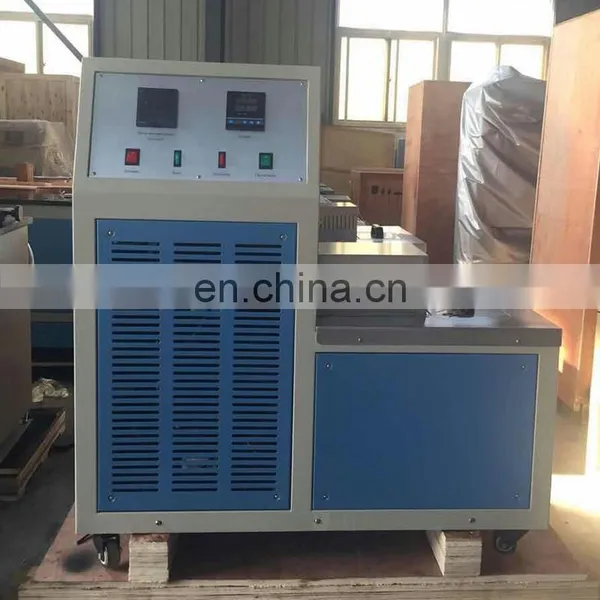

Charpy Impact Test Cooling Chamber for Various Temperature Range
Application
DWC Series Temperature Chamber is designed according to the standard of 'Charpy Notch Impact Test Method for Metal Materials' and adopts compressor cooling technology, which is made up of two sections (Low temperature grade and high temperature grade). It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance.

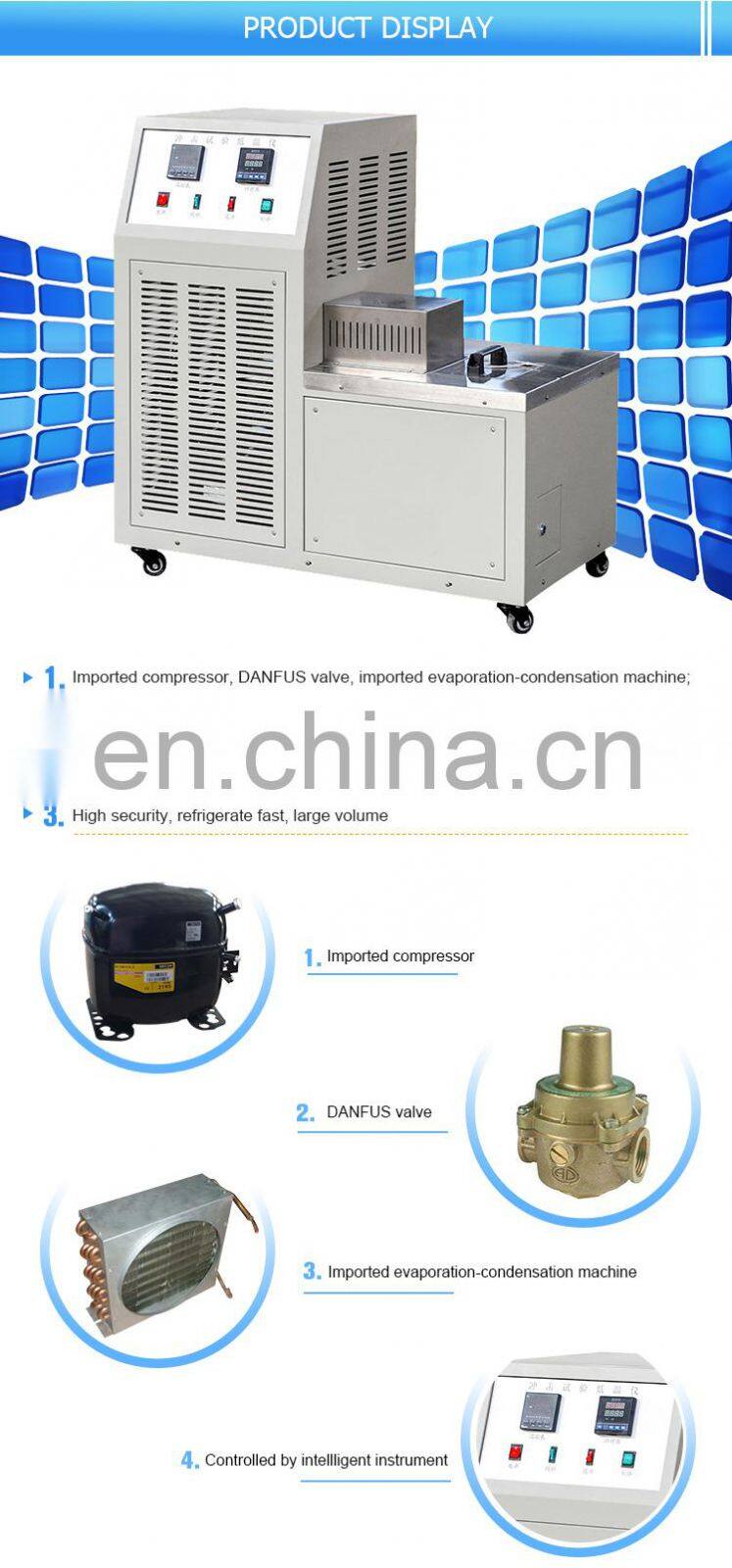

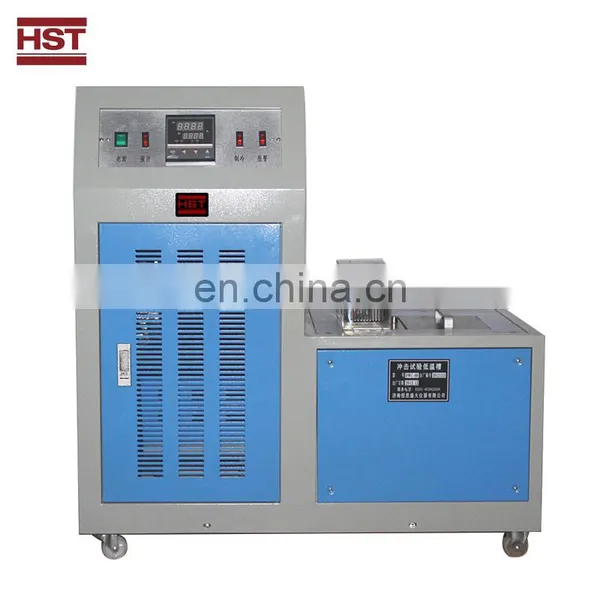

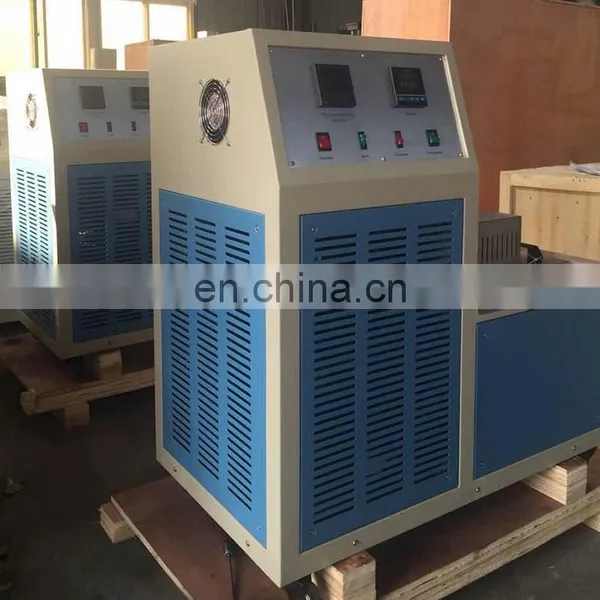

Product Display
| Model | DWC-40 | DWC-60 | DWC-80 | DWC-100 |
| Temperature range | +30~-40° | +30~-60° | +30~-80° | +30~-100° |
Temperature Control Accuracy | ±0.5° | |||
| Effective working space | 120×120×80mm | |||
| Specimen dimension | 10×10×55mm | |||
| Specimen quantity | More than 60 pcs | |||
Temperature dropping speed | +30°C~0°C 1.2°C/min | +30°C~0°C 2°C/min | +30°C~0°C 2°C/min | +30°C~0°C 2°C/min |
0°c~-20°C 0.8°C/min | 0°c~-20°C 1.5°C/min | 0°c~-20°C 1.5°C/min | 0°c~-20°C 1.5°C/min | |
-20°C~-40°C 0.5°C/min | -20°C~-40°C 1.0°C/min | -20°C~-60°C 1.0°C/min | -20°C~-40°C 1.0°C/min | |
-20°C~-40°C 0.5°C/min | -40°C~-60°C 0.7°C/min | -60°C~-80°C 0.7°C/min | -60°C~-100°C 0.7°C/min | |
| Dimensions(mm) | 800×510×480 | |||
| Mode of refrigeration | Compressor refrigeration | |||
| Cooling Medium | Ethanol or other unfrozen liquid | |||
Related Products
Product Advantage

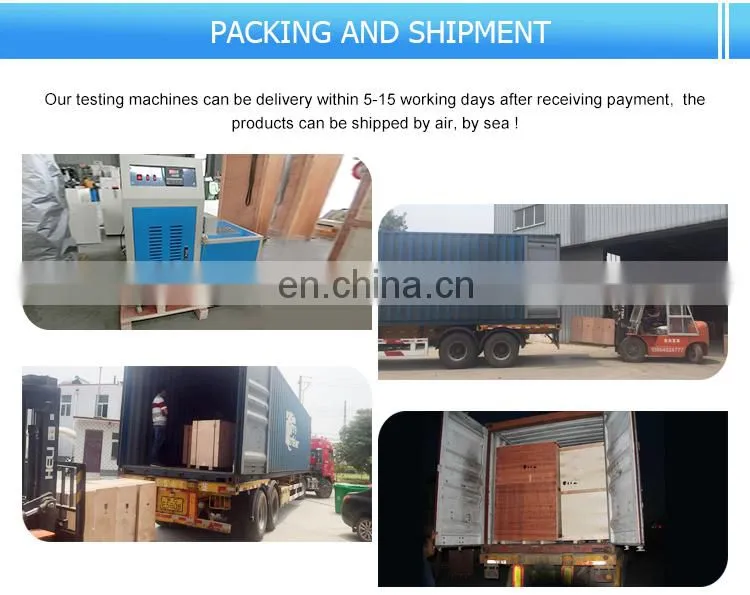

Packaging & Shipping
