ASTM D256 5.5J 80J/m Digital display plastic charpy and izod impact testing machine
1.Applications:
This machine is mainly used for impact toughness test of plastics, GFPA, FRP, ceramics, cast stone, plastic electrics, electrical insulating material and other non-mental materials.
This machine is applicable to the Scientific research colleges and universities authority,nonmetallic material factory. And other test labs and inspection department for testing.
This machine with wide range of impact energy. Izod and charpy can be in common use. Simple structure, easy operation and high test accuracy.
2.Standard:
2.1. GB/T 1043-93 Hard plastics charpy impact testing method.
2.2. GB/T 1843-1996 Plastics izod impact testing method.
2.3. JB/T 8761-1998 Plastics izod impact testing machine.
2.4. JB/T 8762-1998 Plastics charpy impact testing machine.
2.5. ISO 179-1993(E) Plastics-measuring of charpy impact strength.
2.6. ISO 180-1993(E) Plastics--measuring of izod impact strength.
2.7. GB/T 18743-2002 Thermoplastic plastic pipe for fluid delivery charpy impact test method.
2.8. ASTM D256 Plastics anti izod impact testing method.
3.Technical Parameter:
A. Charpy Impact:
Impact Speed | 2.9m/s and 3.8m/s | |
Pendulum Energy | 5J | |
Pendulum Center To Sample Center Distance | 221mm,380mm | |
Rising Angle Of Pendulum | 160° | |
Pendulum Movement | Pd1=0.5155N.m | Pd2=1.0311N.m |
Pd4=2.0622N.m | Pd5=2.5777N.m | |
Pd7.5=3.8662N.m | Pd15=7.7324N.m | |
Pd25=12.8888N.m | Pd50=25.777N.m | |
Supporting Distance | 40mm, 60mm, 70mm, 95mm | |
Supporting Blade Corner Radius | R=1mm | |
Impact Blade Angle | 30° | |
Impact Cutting Edge Radius | R=2mm | |
B. Izod Impact Testing:
Impact Speed | 3.5m/s | |
Pendulum Energy | 5.5J | |
Rising Angle Of Pendulum | 160° | |
Pendulum Impact Center To Impact Blade Distance | 322mm | |
Pendulum Movement | Pd1=0.5155N.m | Pd2.75=1.4177N.m |
Pd5.5=2.8355N.m | Pd11=5.6711N.m | |
Pd22=11.3419N.m |
| |
Impact Blade To The Plane Of The Jaw Distance | 22mm | |
Blade Corner Radius | R=0.8mm | |
Sample Type Meet The Standard GB1843-80, ISO 180-82. | ||

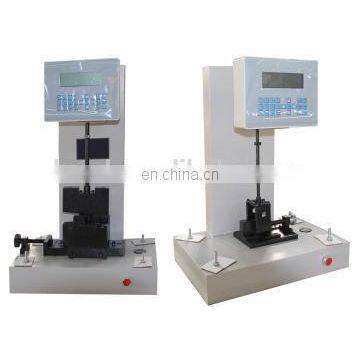

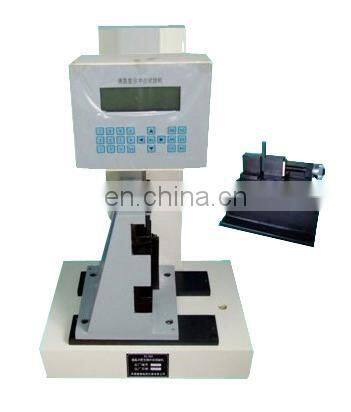

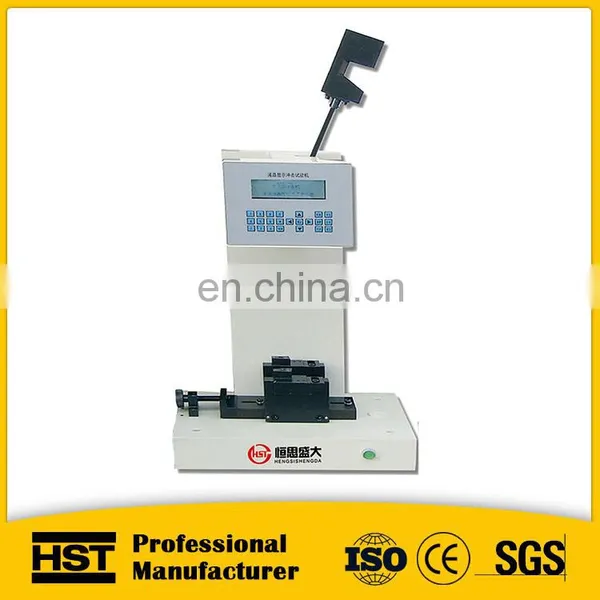

Real Photos

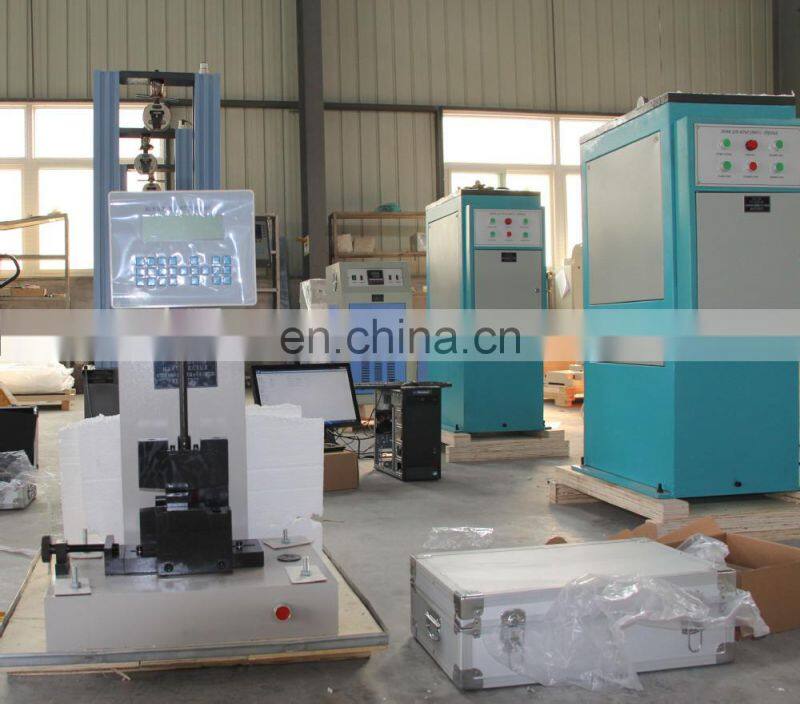

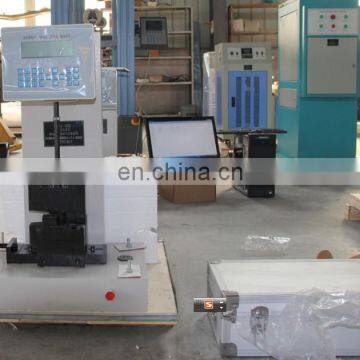

Factory Show:
CE certificate
Welcome to contact Sunny for more informations: Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd Email: sunny at
