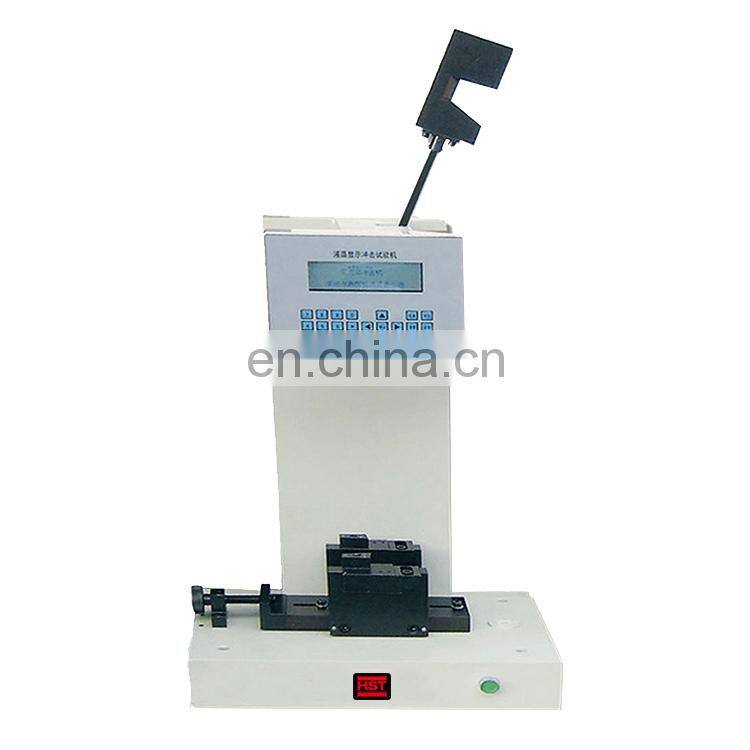

XJJD-7.5/15/25/50J digital display plastic charpy impact tester price
Contact me:Sunny mobile:+86-15866777590 Skype:jessica-hssd
1.Application:
XJJD charpy pendulum impact tester adopts raster -display technique of measuring circle angle, with the characteristics of high precision, good stability and wide range of measuring, digital display of testing split strength, impact intensity,fore-elevation, ascending angle, automatic correcting
the loses energy revises .
2.Features:
The impact test use LCD display shows test results, direct to read , and more precision and accuracy .The main technical parameters of XJJD Digital Display Simple-supported Beam Impact Testing Machine fully comply with IS0 179,GB/T 1043,JB/T 8762
3.Technical parater:
Impact energy |
7.5J |
15J |
25J |
50J |
||
Pendulum torque |
7.5J Pendulum PL=3.866Nm |
15JPendulum PL=7.733Nm
|
25J Pendulum PL=12.889Nm |
50JPendulum PL=25.777Nm |
||
Dial indexing angle |
1/100 |
|||||
Impact speed |
3.8m/s |
|||||
Pendulum angle |
160° |
|||||
|
The distance between pendulum center and sample center |
380mm |
|||||
Round angle of the jaw |
R=1±0.1mm |
|||||
Round angle of impact cutting edge |
R=2±0.5mm |
|||||
Impact blade angle |
30±l° |
|||||
Span of support(mm) |
40mm |
60mm |
70mm |
95mm |
||
Energy loss |
0.5% |
|||||
Dimension |
550mm×350mm×850mm |
|||||
Weight(Kg) |
160kg |
|||||
Sample Type |
Length C |
Width B |
Thickness D
|
Supporting Space |
||
I |
80 |
10 |
4 |
10 |
||
II |
50 |
6 |
4 |
60 |
||
III |
120 |
15 |
10 |
70 |
||
IV |
125 |
13 |
13 |
95 |
||
manual plastic charpy impact testing machine XJJD
Real Photos
