Cheap Price CST-50 U/V Impact Sample/ Specimen Notch Measuring Profile Mini Projector
Contact me:Sunny mobile:+86-15866777590 Skype:jessica-hssd
1. Application

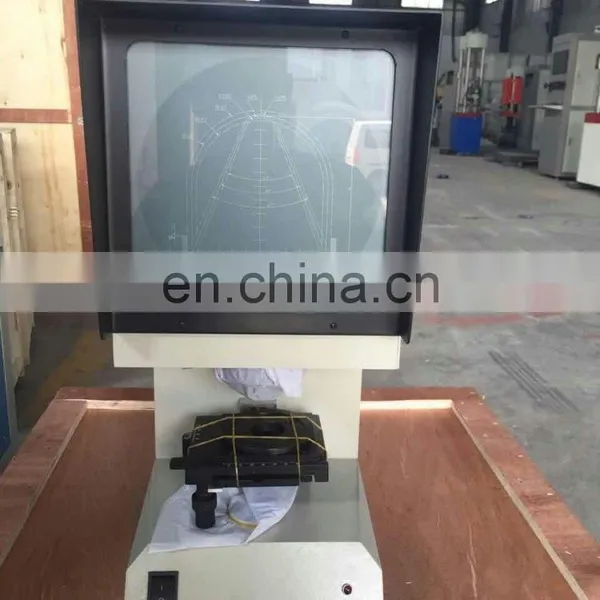

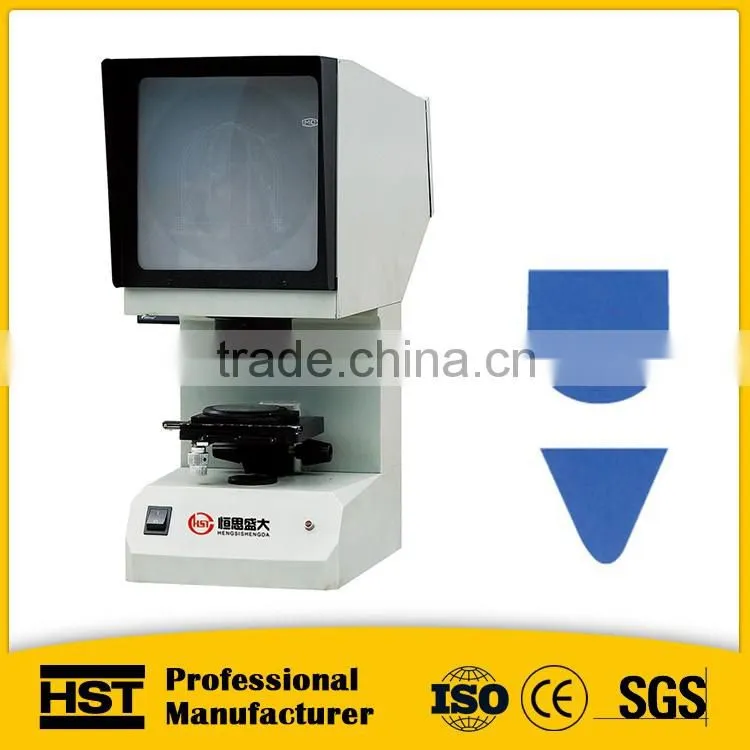

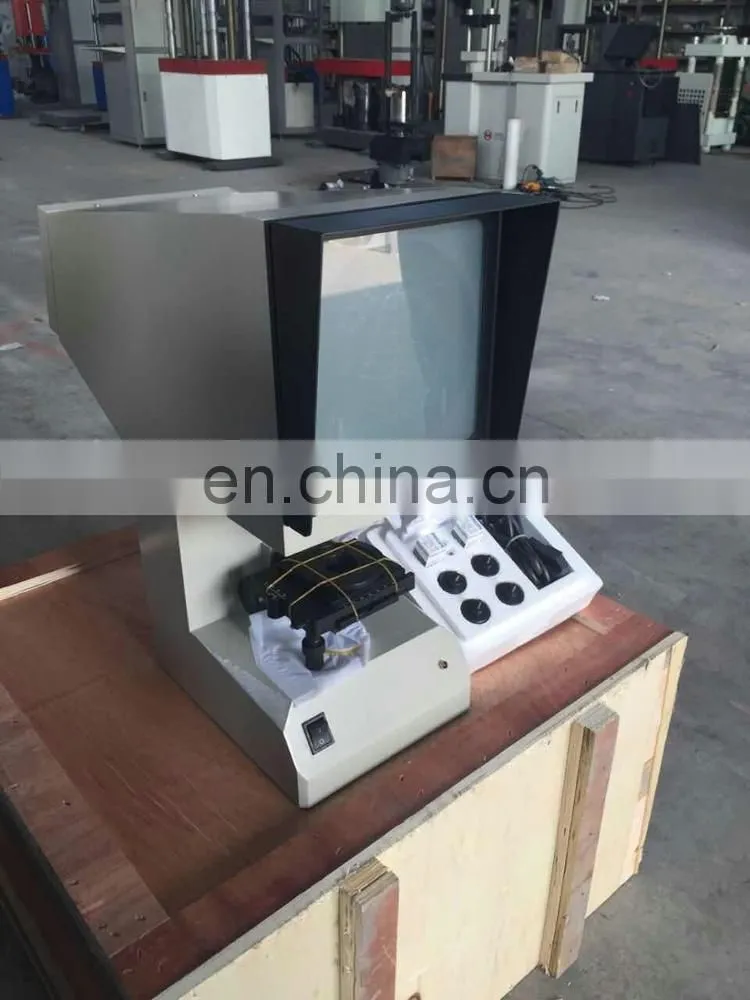

CST-50 China supplier Charpy Impactg Projection Equipment is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.
2.Main Technical Parameters
Diameter of the Screen |
200mm |
Magnification of the instrument |
50X |
Objective magnification |
2.5X |
Working table square shape |
110x125mm |
Diameter of round worktable |
90mm |
Diameter of working screen |
70mm |
Stroke of working table |
Longitude: ±10mm, Latitude:±10mm, Rise and fall: ±12mm |
Eye-field diameter |
3.8mm |
Working distance |
22.89mm |
Scope of revolving of the worktable |
360° |
Power supply |
220V,50HZ,150W |
Dimension |
515×224×603mm |
Light source(tungsten halogen lamp) |
12V,100W |
Weight |
18kg |
3.Configuration
Host----1set
Base adjustment button---4 Pcs
Power line----1Pcs
Halogen tungsten lamp----2Pcs
Flat glass plate ---1Pcs
CST-50 China supplier Charpy projector price
CST-50 China supplier Charpy projector price
Contact: sunny Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd
