Pipe Drop Hammer Impact Test Machine Tubular Impact Test Equipment
Application:
Suitable for the determination of impact toughness of PVC-U, PVC-C pipe, PP pipe, PE pipe, underground communication pipe plastic pipe and other pipe.
Features:
Adopts the PLC control, touch screen operation, high degree of automation, can digital preset and display impact height, lifting hammer, drop hammer, impact and can effectively prevent the secondary impact. Secondary impact capture rate is 100%. V-shaped iron adjustment to adapt to the different pipe diameter of the sample, the hammer body falling is free falling.
Standard:
GB/T14152,GB/T10002.1, GB/T10002.3, GB/T13664,GB/T16800, ISO4422, ISO3127,BSEN1411, BSEN744
Technical parameter:
|
Model |
HST-300B |
|
ambient temperature: |
10°C~35°C |
|
Hammer weight |
0.250— 16.000kg |
|
Working bench stroke |
0— 400mm |
|
Specimen diameter |
φ 10— φ 450mm(more big is available) |
|
Radius of hammer head |
SR5, R10, R30mm, (D25, D90 is Optional) |
|
Impact height |
50-2000mm indicate that the error does not exceed ± 2mm |
|
Deviation between impact center and fixture center |
≤ 2mm |
|
pallet type: |
120 ° |
|
power supply |
380VAC ± 10% (three-phase four-wire) |
|
Display type |
Digital display |
|
Dimensions |
730mm× 700mm× 3300mm |
|
Weight |
300Kg |
|
Standard Accessories |
Loadframe, Electronic control box, hammer block, power cord, manual book |

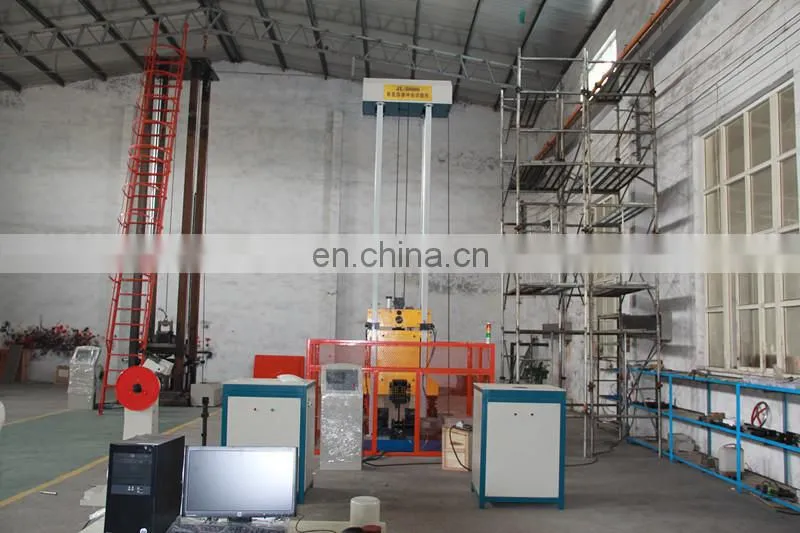

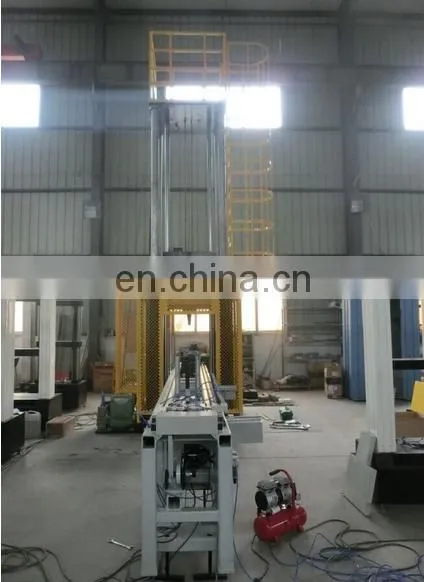

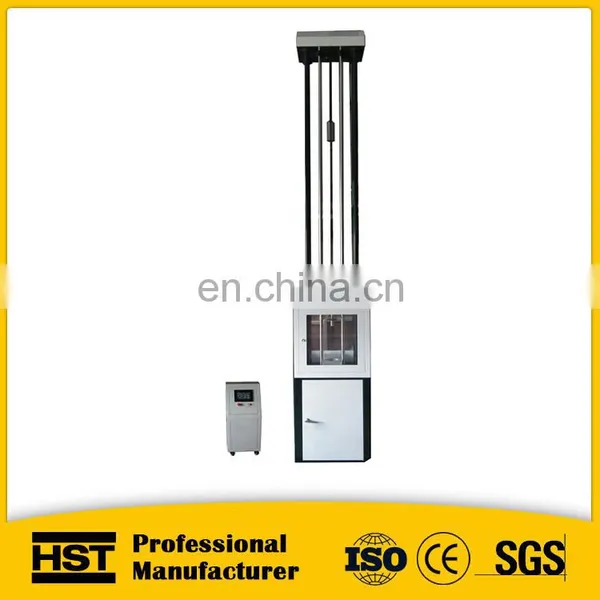

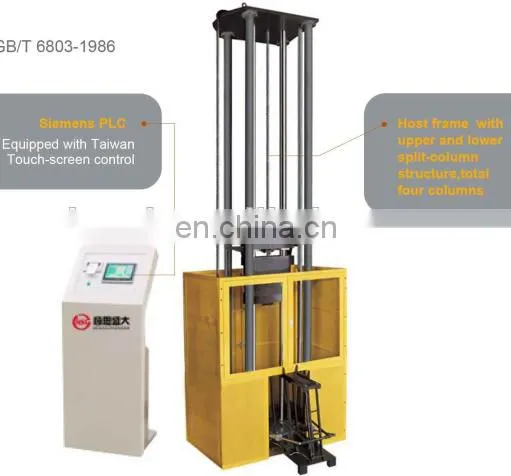

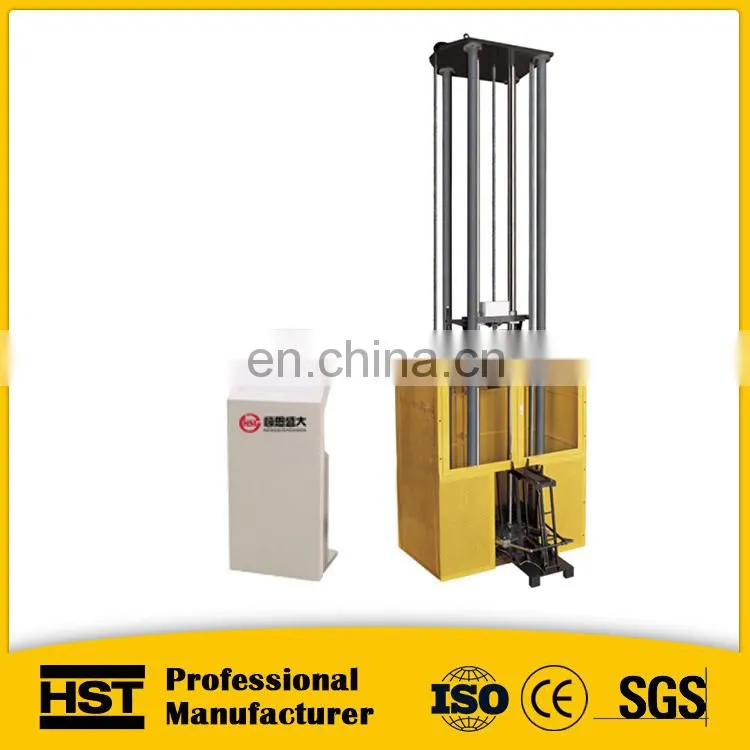

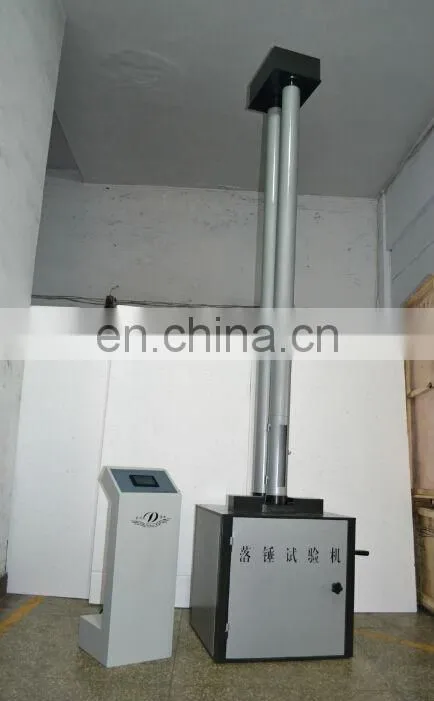

Impact Testing Machine:

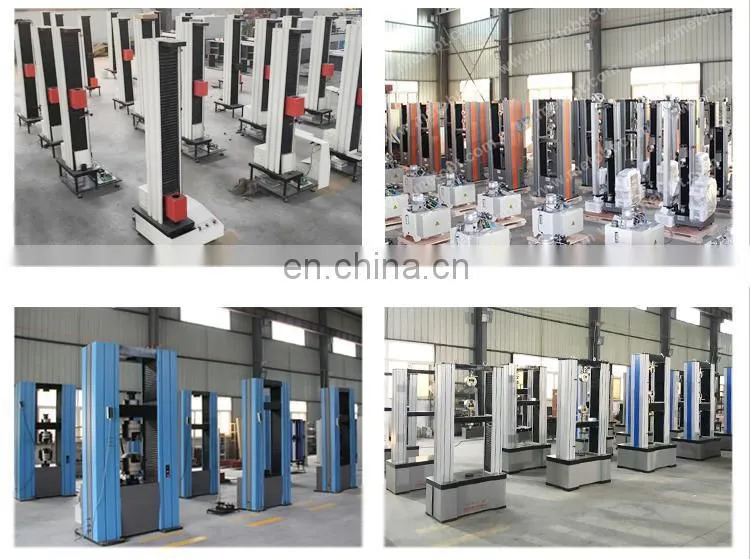

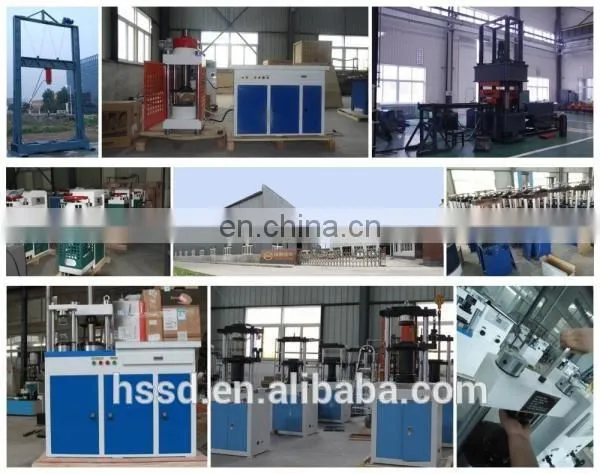

Factory Show:
