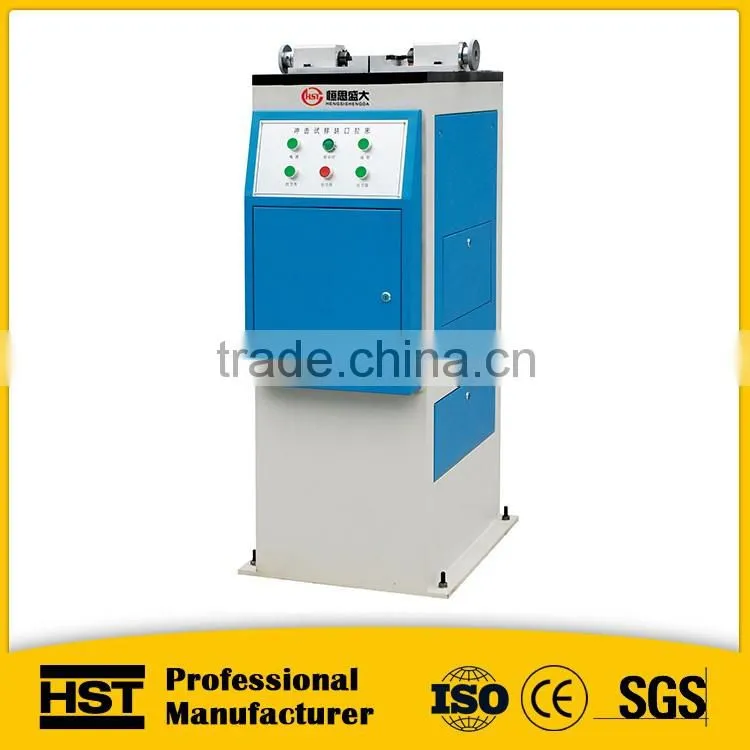

The impact test specimen gap hydraulic broaching machine VU-2Y

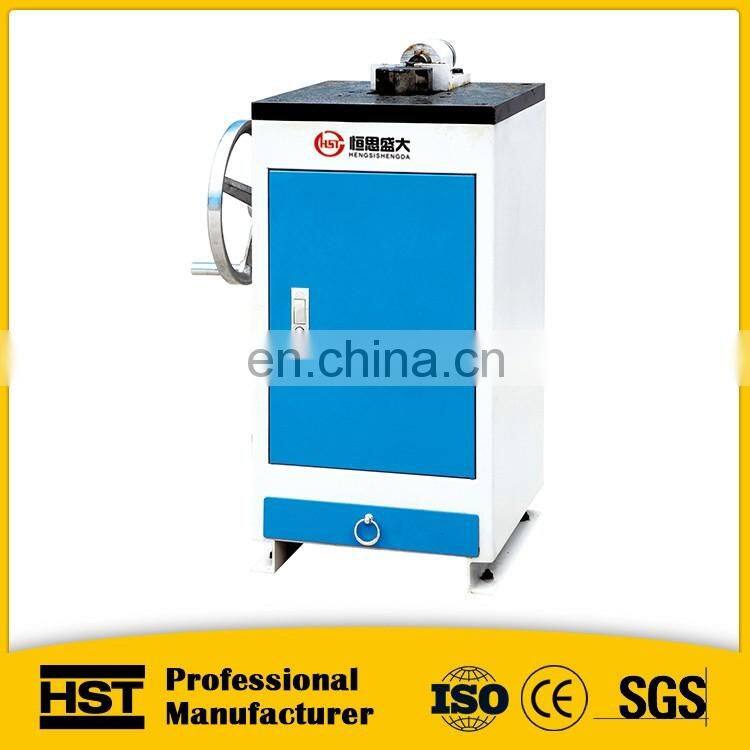

We also have manual style for choice as below:
1. Application
Hydraulic Impact Sample U V Notching Machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries and departments of science &research
2.Standards:
ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007
3.Features:
3.1 The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life;
3.2 This equipment has hydraulic drive double knives and can cut two specimen notches at one time.
4. Main Technical Specifications:
Shape of sample notch |
V2 mm,U2mm,(U3mm, U5mm alternative) |
Sample size |
(10, 7.5, 5)x10x55mm |
Cutting mode |
Hydraulicn automatic |
Journey of broach |
V2, U2, U3 350mm; U5 380mm |
Broaching Speed |
2.5m/min |
Broach material |
W18Cr4V |
Power supply |
380V 50Hz 0.4Kw |
Max. Dimension |
660x500x1240mm |
Weight |
200kg |

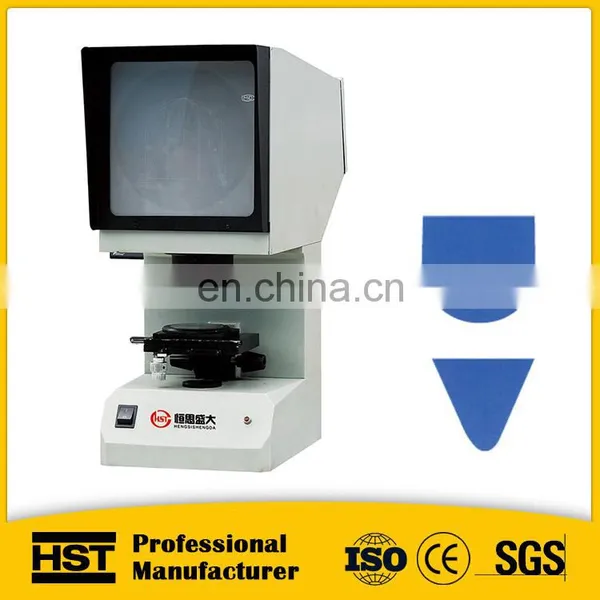

Manual impact specimen gap broaching machine CST-50 Charpy projector

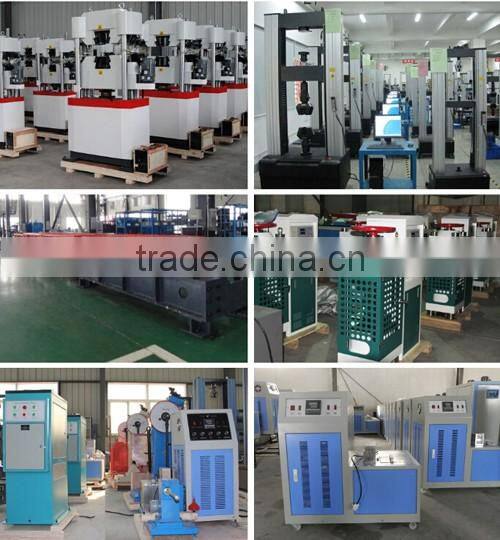

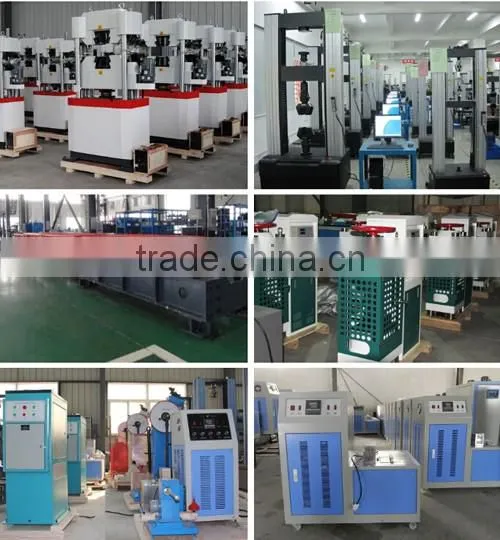

Factory Show
Contacts:Sunny
Email add : sunny at
Tademanager account : cn1501095096
Tel :15589960023
We are a profesional factory which produce kinds of Universal
Testing Machine and Hydraulic Universal Testing Machine.
We sincerely welcome friends at home and abroad to cooperate with us!
We would like to offer you our best products and service!
