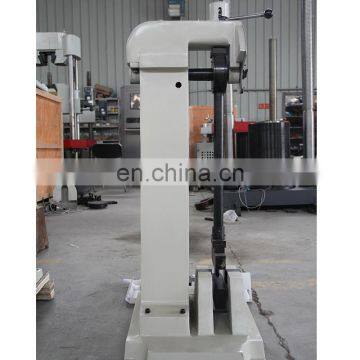

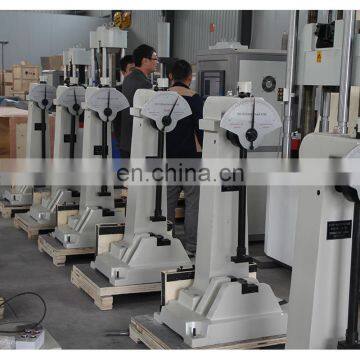

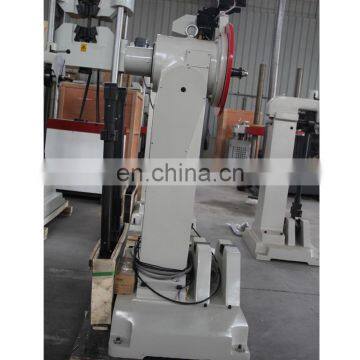

Pendulum charpy impact testing machine for metal materials
Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.
Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method.
Its a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas, but also used for the science research.
Model |
JB-300 |

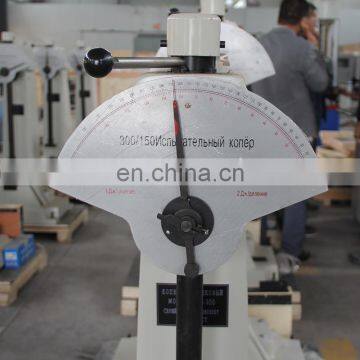

Reading Of Dia |
0-150J (1J/Grid); 0-300J(2J/Grid) |
Impact Energy |
150J, 300J |
|
The Distance Between The Pendulum Shaft And Impact Point |
800mm |
Impact Speed |
5.2 m/s |
Pre-rising Angle Of The Pendulum |
135° |
Specimen Bearer Span |
40+0.2mm |
Round Angle Of The Jaw |
R1-1.5mm |
Round Angle Of Impact Edge |
R2-2.5mm |
Angle Accuracy |
0.1° |
Power Supply |
Manual |
Standard Specimen Dimension |
10mm×10mm×55mm |
Dimensions (mm) |
1000×630×1520mm |
Net Weight (kg) |
320KG |
