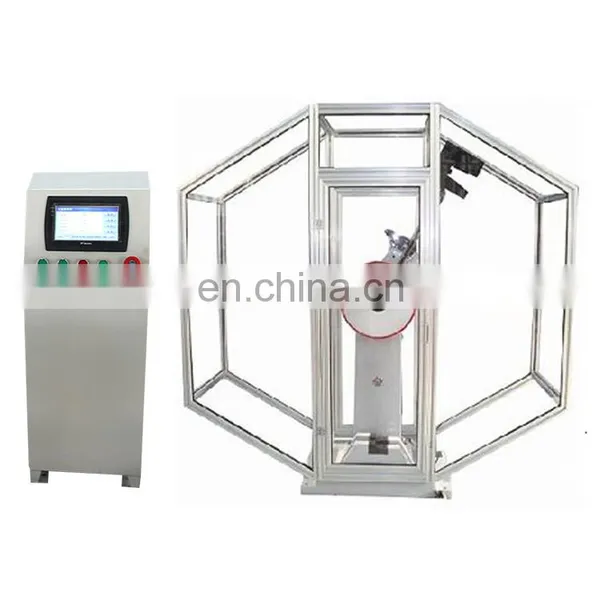

Help CenterJBS- 500B Full Closed Protection Net Touch Screen Display Pendulum Impact Tester Price
Related Products
-
Impact Sample Electric Notch Broaching Machine + U V Notch Making Machine + Sample Cutting MachineUS$ 2,200 - 2,200MOQ: 1 Set -
JB-500B 500J Semi Automatic Metal Charpy TesterUS$ 5,900 - 5,900MOQ: 1 Set
-
ASTM D256 5.5J 80J/m Digital Display Plastic Charpy and Izod Impact Testing MachineUS$ 1,199 - 4,999MOQ: 1 Set
-
QKZ-20 Rubber / Plastic Auto Charpy/Izod Notch Specimen Making/Broaching MachineUS$ 899 - 1,599MOQ: 1 Set
-
Cheap Price CST-50 U/V Impact Sample/ Specimen Notch Measuring Profile Mini ProjectorUS$ 1,200 - 1,350MOQ: 1 Set

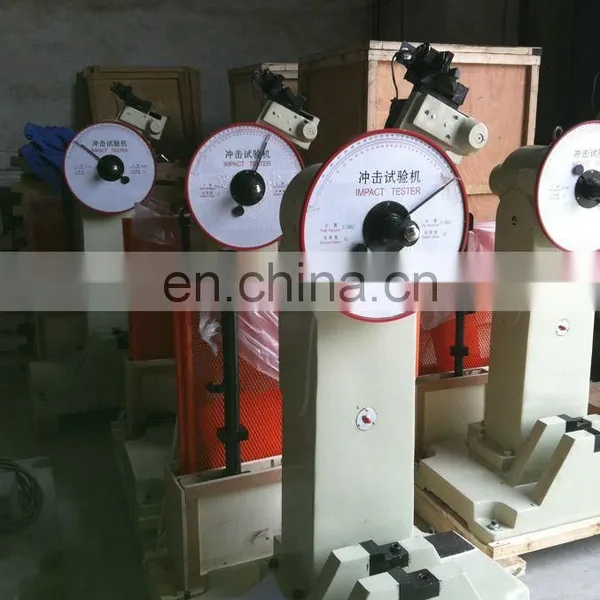

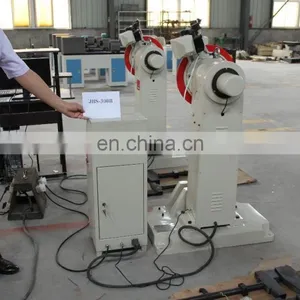

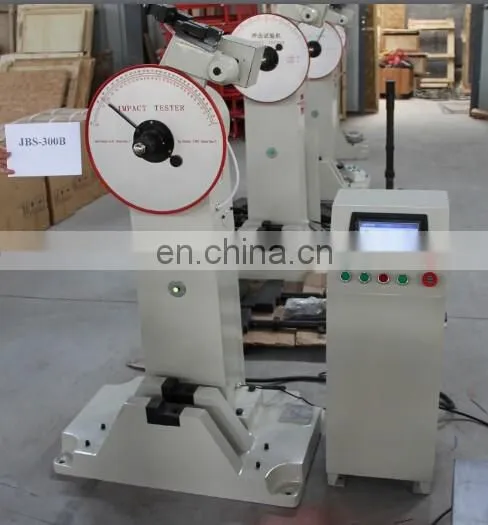

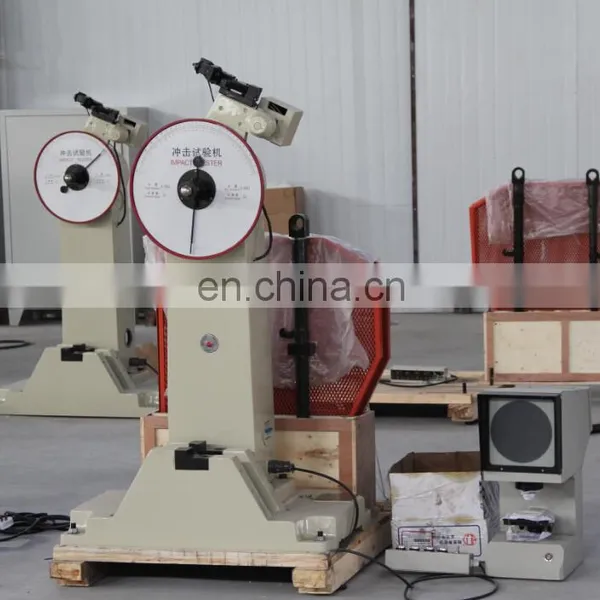

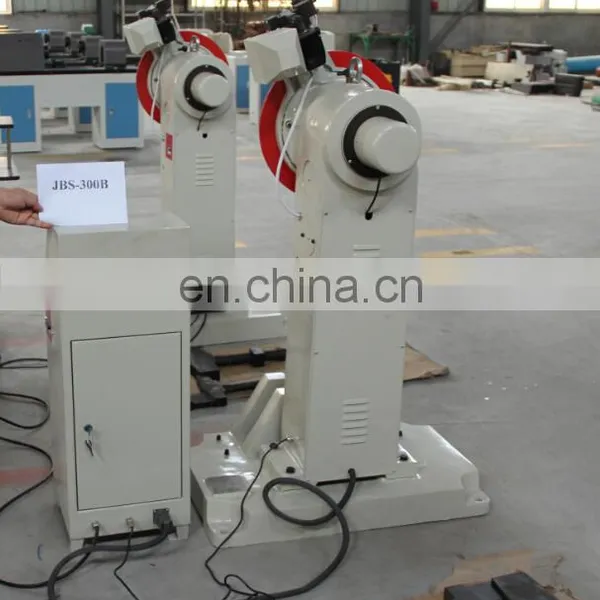

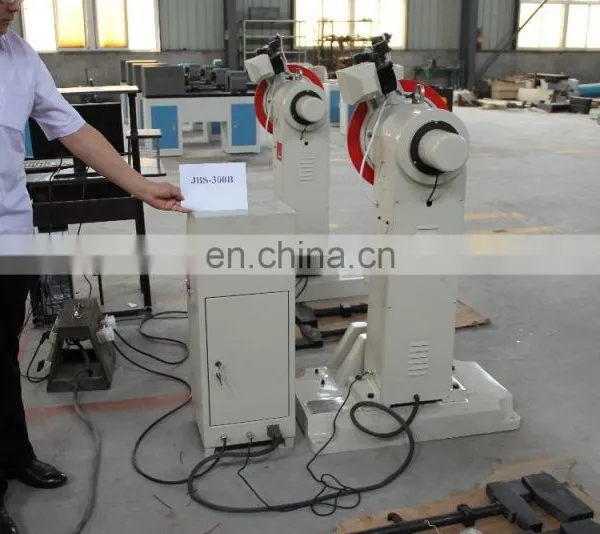

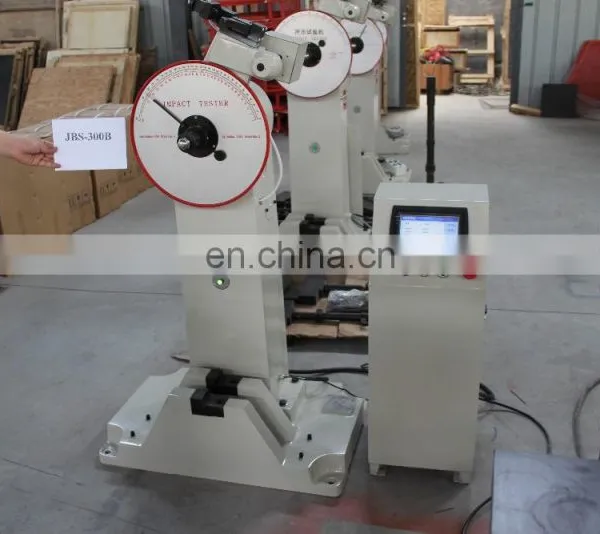

JBS-300B Digital Steel charpy impact test machine price
1. Application: charpy impact test equipment price
300J / 500J JBS Digital Impact Testing machine is mainly used to determine the anti_impact
capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi_automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
2. Standards:charpy impact test equipment price
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
Model |
JBS-300B |
JBS-500B |
JBS-800B |
||
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
800mm |
||
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
Pre-rising angle of the pendulum |
150° |
||||
Specimen bearer span |
40+0.2mm |
||||
Round angle of the jaw |
R1-1.5mm |
||||
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
Angle accuracy |
0.1° |
||||
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455 |
||
Net Weight (kg) |
450 |
650 |
2300 |
||
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
4. Features:
4.1 Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box;
4.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.3 Pendulum will automatically rising and ready for next impact action after specimen breakout.

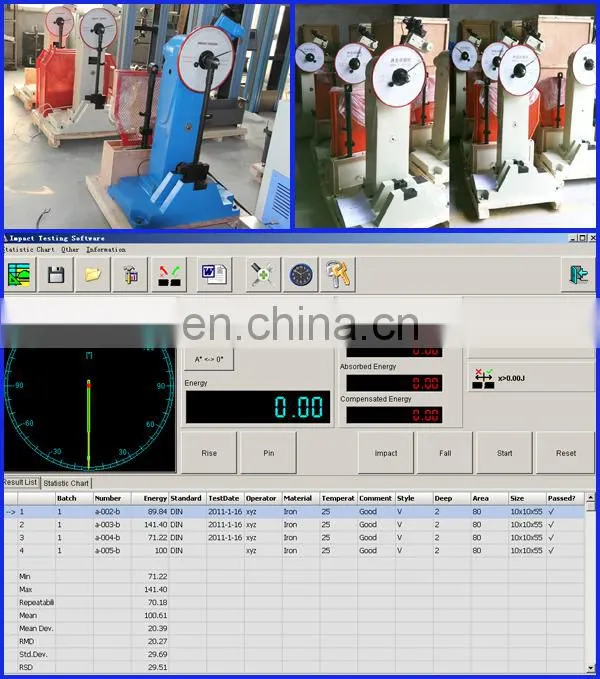

4.4 With two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
4.5 Built-in micro printer to print test result.
VU-2Y DWC-40/60/100 DWC-196 CST-50
